Quick Details
-
Place of Origin:
-
SHENZHEN, CHINA
-
Brand Name:
-
RAYMO
-
Model Number:
-
RM-FMN-3MQ-330JS
-
Locking type:
-
Bayonet locking
-
Shell material:
-
Aluminium (gun-metal color plated)
-
Shell size:
-
3M
-
Contact material:
-
Brass Gold Plated
-
Contact pin:
-
2-30pins
-
Contact type:
-
solder/print(PCB) type
-
Insulator:
-
PPS
-
Certificate:
-
ISO9001/ROHS/REACH/CE/SGS
-
MOQ:
-
1PCS
-
IP rating:
-
IP68 waterproof
Quick Details
-

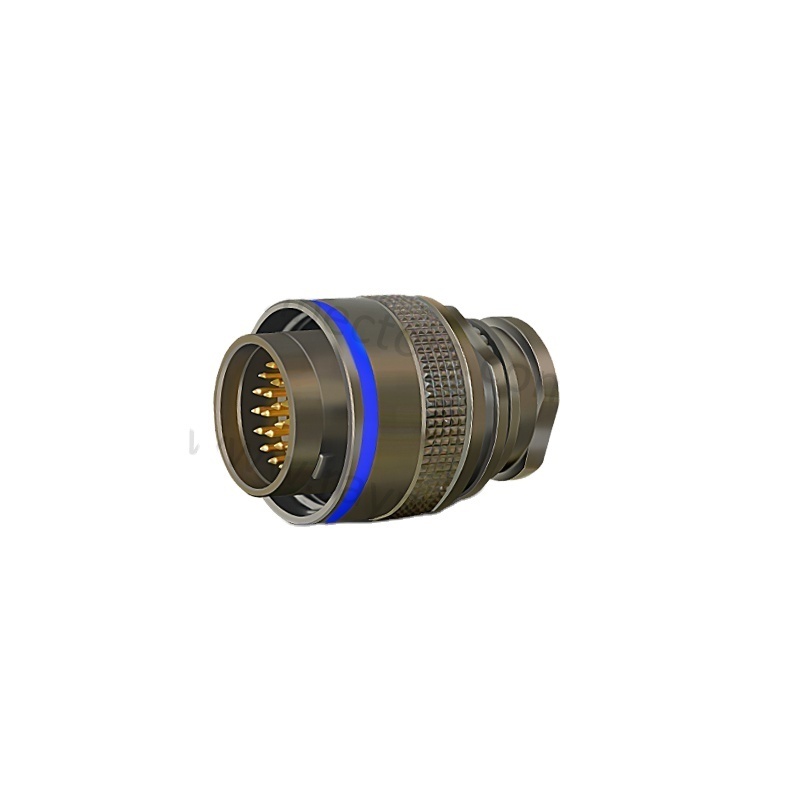

Type:
-
Bayonet locking connector
-
Application:
-
underwater aviation
-
Gender:
-
Male/Female
-
Place of Origin:
-
SHENZHEN, CHINA
-
Brand Name:
-
RAYMO
-
Model Number:
-
RM-FMN-3MQ-330JS
-
Locking type:
-
Bayonet locking
-
Shell material:
-
Aluminium (gun-metal color plated)
-
Shell size:
-
3M
-
Contact material:
-
Brass Gold Plated
-
Contact pin:
-
2-30pins
-
Contact type:
-
solder/print(PCB) type
-
Insulator:
-
PPS
-
Certificate:
-
ISO9001/ROHS/REACH/CE/SGS
-
MOQ:
-
1PCS
-
IP rating:
-
IP68 waterproof
Part No.example:
RM-FMN-3M-330JS
Explanation :
FMN
:
straight plug,
3M :
3M size of outer shell,
330:
30 contacts.
JS:
male contact in solder;
Main Features :
1. Security of the
Bayonet locking system.
2. 100% compatible with original
connectors;
3. Multipole from
2 to 30pin contacts
available
4. 360°screening for
full EMC shielding.
5.
High packing
density for space savings
6.
Cable assembly
as customers real needs (OEM is available)
7. Certification:
CE, ROHS, Reach, SIO9001,SGS
8. Fast delivery (
3-15 working days
)
|
Production Series
|
M series
|
Type
|
M series FMN plug
|
|
Compability
|
compatible with M series
|
Endurance
|
>5000 cycle
|
|
Shell Size
|
3M
|
Humidity (max)
|
<=95% [at 60 deg C /140 F]
|
|
30Contact No.
|
30 pins
|
Shock Resistance
|
100 g [ 6 ms]
|
|
Contact type
|
For solder/print(PCB)/90° PCB
|
Climatical Category
|
55/175/21
|
|
Insulator Material
|
PPS
|
Conductor
|
AWG
|
|
Locking way
|
Bayonet locking
|
Rated Current
|
|
|
Certificate
|
CE/RoHs/Reach/ISO9001/SGS
|
Shielding (min)
|
95 dB (10 MHz) 80 dB (1 GHz)
|
|
MOQ
|
1 pcs
|
IP Rating
|
IP 68
|
Compatible
B
series, waterproof
K
series, half-moon
S/E
series, plastic
P
series connectors,
M
series,
W
series
Compatible
FISCHERS
102 103 1031 104 105
series connectors
Compatible
HIROSES
HR10A
series connectors
Compatible
Binders
M16 682 420 678
series connectors
Compatible
FISCHERS Ultimate
series UP01 UR01 UR02 connector
Substitue
W series
deepsea waterproof
RM-V
series
Compatible
ODUS
metal
L
series and plastic
M
series connector
Cable assembly
can be designed according customer real needs.
Accept
OEM/ODM
1. Raymo factory has 4 lines for process connector and cable assembly.
3. ALL the connector components including the shell body, contacts, insulation is make by ourselves, except the plating.
We have 5 pcs Horizontal machining lathe to support our order to assure the fast delivery.
|
