- Product Details
- {{item.text}}
Quick Details
-
Return Force (kN):
-
1600 kN
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Year:
-
2023
-
Voltage:
-
220v/380v, Commission
-
Dimension(L*W*H):
-
1000mmX800mmX1900mm
-
Weight (T):
-
3 T
-
Model Number:
-
YW22-160T
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
New Product 2023
-
Product name:
-
YW22-160T Hydraulic Press Machine
-
Keyword:
-
Hydryalic Press
-
Brand:
-
ANTISHICNC
-
Usage:
-
Industrial Metal processing
-
Color:
-
Customizable
-
After-sales Service Provided:
-
Free spare parts
-
Hydraulic system:
-
High pressure pump
-
Application:
-
Manufacturing industry
-
Certification:
-
CE ISO
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
400
-
Ejector Force (kN):
-
1600
-
Return Force (kN):
-
1600 kN
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Year:
-
2023
-
Voltage:
-
220v/380v, Commission
-
Dimension(L*W*H):
-
1000mmX800mmX1900mm
-
Weight (T):
-
3 T
-
Model Number:
-
YW22-160T
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
New Product 2023
-
Product name:
-
YW22-160T Hydraulic Press Machine
-
Keyword:
-
Hydryalic Press
-
Brand:
-
ANTISHICNC
-
Usage:
-
Industrial Metal processing
-
Color:
-
Customizable
-
After-sales Service Provided:
-
Free spare parts
-
Hydraulic system:
-
High pressure pump
-
Application:
-
Manufacturing industry
-
Certification:
-
CE ISO

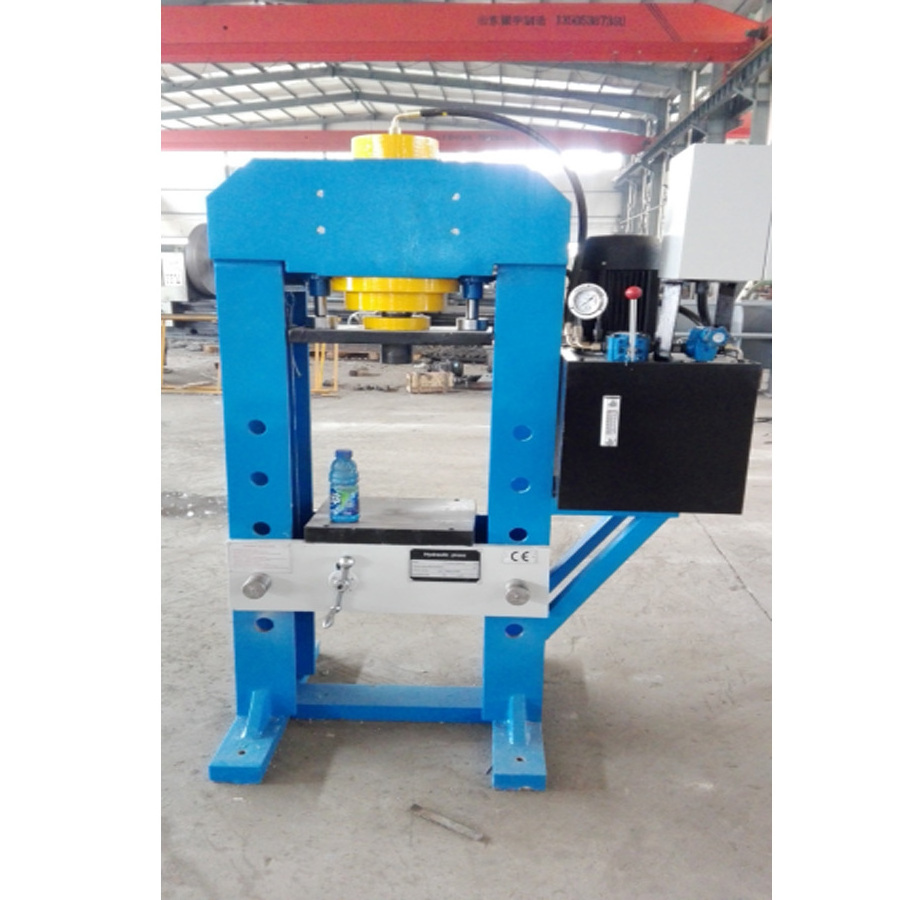

Hydraulic Press With Movable Cylinder Hydraulic press machine
Product Description
Product Paramenters
|
Details Description
|
|
Unit
|
YW22-160T
|
|
|
Nominal force
|
|
KN
|
1600
|
|
|
liquid maximum working pressure
|
|
Mpa
|
25
|
|
|
Maximum stroke
|
|
mm
|
400
|
|
|
Opening height
|
|
mm
|
700
|
|
|
Slider speed
|
Drop rapidly
|
Mm/s
|
35
|
|
|
|
Quick return
|
Mm/s
|
20
|
|
|
Worktable
surface size |
Length
|
mm
|
1800
|
|
|
|
Width
|
mm
|
1000
|
|
|
Power of motor
|
|
KW
|
7.5
|
|
|
Workbench height from the ground
|
|
mm
|
750
|
|
ANTS Machine is a leading Chinese industrial lathe machinery andtooling machines supplier, located in the downtown of Shanghai City.Since our company was founded, based on the advantage of BOCHI which is the No.1 Chinese machine tool manufacturer, we continuallyintroduce top Chinese lathe machinery enterprises and their productsto international markets and export them to approximately 30countries and several regions across the globe, such as BOCHI,Shanghai Machine Tool, SPARK etc. Today we stand tallamidst a number of competitors across the world.
