Quick Details
-
Viewing Angle:
-
176*176
-
Pixel Pitch:
-
0.1730 x 0.5190
-
Contrast Ratio:
-
1800:1
-
Brightness:
-
500nits
-
Response Time:
-
6ms
-
Input Voltage:
-
AC110V-240V, 50/60HZ
-
Product name:
-
elevator digital signage,elevator lcd advertising player
-
Panel type:
-
TFT-LCD
-
Aspect ratio:
-
16:9
-
Vedio mode:
-
PAL,NTSC,auto
-
LCD:
-
Samsung,LG
-
Interface:
-
CF/SD/MMC/MS/XD and USB
-
Language:
-
English/Franch/Spanish/Germany/Chinese
-
Panel Life Time:
-
50,000 Hours
-
OEM service:
-
offered
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AIOPC/OEM
-
Model Number:
-
APC320AD
-
Viewing Angle:
-
176*176
-
Pixel Pitch:
-
0.1730 x 0.5190
-
Contrast Ratio:
-
1800:1
-
Brightness:
-
500nits
-
Response Time:
-
6ms
-
Input Voltage:
-
AC110V-240V, 50/60HZ
-
Product name:
-
elevator digital signage,elevator lcd advertising player
-
Panel type:
-
TFT-LCD
-
Aspect ratio:
-
16:9
-
Vedio mode:
-
PAL,NTSC,auto
-
LCD:
-
Samsung,LG
-
Interface:
-
CF/SD/MMC/MS/XD and USB
-
Language:
-
English/Franch/Spanish/Germany/Chinese
-
Panel Life Time:
-
50,000 Hours
-
OEM service:
-
offered

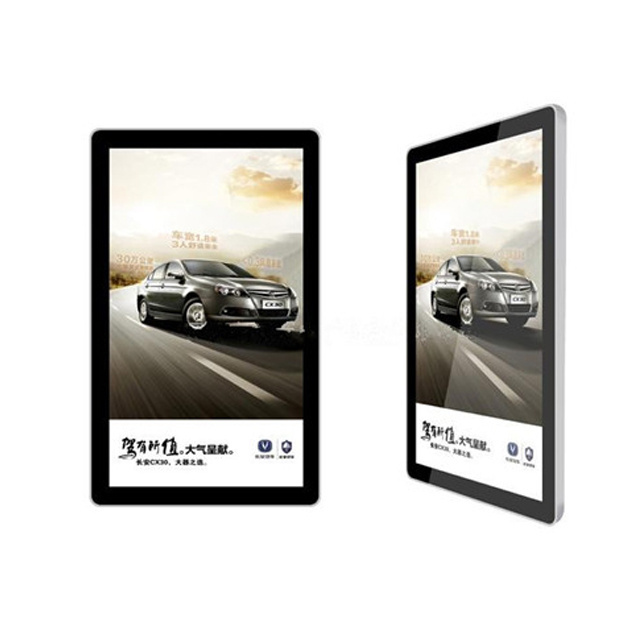

hot sale ultra slim elevator digital signage,elevator lcd advertising player,elevator lcd advertising display
Our company AIOPC offer three versions advertising player/digital signage: standalone version(without LAN OR WLAN), network(wifi,3G,ethernet,LAN,WLAN) version and PC version.
| Panel | 1.TFT-LCD (LED baclight) |
| 2.Display Ratio:16:9 | |
| 3.Resolution:1920*1080 | |
| 4.viewing angle:H176*V176 | |
| 5.Brightness:600cd/m 2 | |
| 6.response Time:6ms | |
| 7.contrast Ratio:1800:1 | |
| 8.panel life>50000hrs | |
| stand-alone(without LAN or WLAN) version | 1.Mainboard:Mstar M181(built-in Linux OS) |
| 2.built-in memory or SD card. ,support USB *1 | |
| network(wifi,3G,LAN or wlan)Andriod version | 1.Mainboard:Allwinner A10 (1.0-1.5GHz) |
| 2.OS: Android 4.0.3 | |
| PC version | 1.CPU:Intel Aton D525 1.8GHz Dual-core |
| 2.Main Chip:Intel 945GC | |
| 3.Memory:DDR3 2G 800MHz | |
| 4.HDD:2.5" SATA/5400rpm 320GB | |
| 5.Frequency:533MHZ/800MHZ | |
| 6.Audio:AC 97 | |
| 7.loudspeaker:5W+5W | |
| 8.I/O:USB(2.0)*4,RJ-45,Audio,mic, |
Main Function:
1.Support 5 groups of auto power-on/off time setting one day or 7 days in one week,
automatically play and non-stop replay within the pre-set time frame.
2.No DVD style mechanical movement, hence more durable and suitable for
long-hour advertising playing.
3.Built-in CF and SD card reader, support CF/SD/MS/MMS/XD card and USB drive,
using CF and SD card as the source of programming, playing with high stability.
4.Update/upload contents of the memory card (or built-in memory) by simply inserting
an USB flash drive, no need to take out of the memory card.
5.AUTO/NTSC/PAL video playing format is optional.
6.Playlists support functions, can set different folders, copy all target files to those different folders, system would default to play your target file one by one.
7.Capable of setting different kinds of rolling caption on the top, bottom, sides of the screen.
8.Built-in clock and calendar function in the system of player.
9.OSD Language: supports Chinese, English, Russian, French, German, Italian,
Spanish, Portuguese, Swedish, Danish, Korean, Japanese etc.
Products Features
1.Outer shell is made by high-class metal material,black or silver color etc,
back-fixing mode with nice appearance. Outer shell color can be customized.
2.With a protection layer of ultrathin, high light, perfectly clear tempered glass
on the surface of the LCD screen to protect the screen being damaged.
3.Choosing Samsung, LG LCD panels. A Class 335 standard,
full new and factory original packing screen.
4.Theft-protection device effectively prevent the player and CF card from
being stolen in public place.
5.Password can be set to protect the contents.
6.Password can be set to lock the keyboard of the remote controll.
7.Support software updating, new function can be customized according to customer’s needs.
8.Built-in two high quality stereo speakers, rated power is 2 x 1.5W.
Technical Specifications
1.Compatible file formats:
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2),MPEG1 (VCD:DAT/MPG1),MP3,JPG,WMV, AVI, etc.
2.Play from:
Memory flash: CF Card,SD card or USB (32M-16GB)
Built-in flash memory: (optional)
USB: high speed USB 2.0 (Host)
3.Others:
Power supply: AC110V-240V, 50/60HZ
Working temperature: -15°C - 65°C Working humidity: 20%-80%
Storage temperature: -20°C - 60°C Storage humidity: 10%-95%
Services and Warranty:
1.one year warranty.
2.customized service,OEM/ODM services offered.
We will reply you within 24 hours.If any request or inquiry pls contact us at your convenience
