Use:
It is applicable for such sectors including foodstuff, pesticide, pharmaceuticals, daily chemicals etc. The machine can choose from different filling methods according to nature of material including liquid, powder, granule, paste etc.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
60bag/min
-
Weight (KG):
-
1100
-
Voltage:
-
220V 380V/50-60Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEWPACK
-
Packaging speed:
-
60bags/minute
-
Pouch volume:
-
Maximum:300c.c
-
Pouch origin:
-
Form the reel
-
Filling stations:
-
with 1 heads
-
Pouch dimensions:
-
Minimum: 60mm*80mm
-
Pouch size:
-
Maximum: 160mm*200mm
-
Safety:
-
CE standards
-
Machine operation:
-
Horizontal form fill and seal
-
Electrical Data:
-
200-415V/50-60Hz/N+G
-
Machine weight:
-
1100Kg
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
60bag/min
-
Weight (KG):
-
1100
-
Voltage:
-
220V 380V/50-60Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEWPACK
-
Packaging speed:
-
60bags/minute
-
Pouch volume:
-
Maximum:300c.c
-
Pouch origin:
-
Form the reel
-
Filling stations:
-
with 1 heads
-
Pouch dimensions:
-
Minimum: 60mm*80mm
-
Pouch size:
-
Maximum: 160mm*200mm
-
Safety:
-
CE standards
-
Machine operation:
-
Horizontal form fill and seal
-
Electrical Data:
-
200-415V/50-60Hz/N+G
-
Machine weight:
-
1100Kg
Product Description
|
Product Name
|

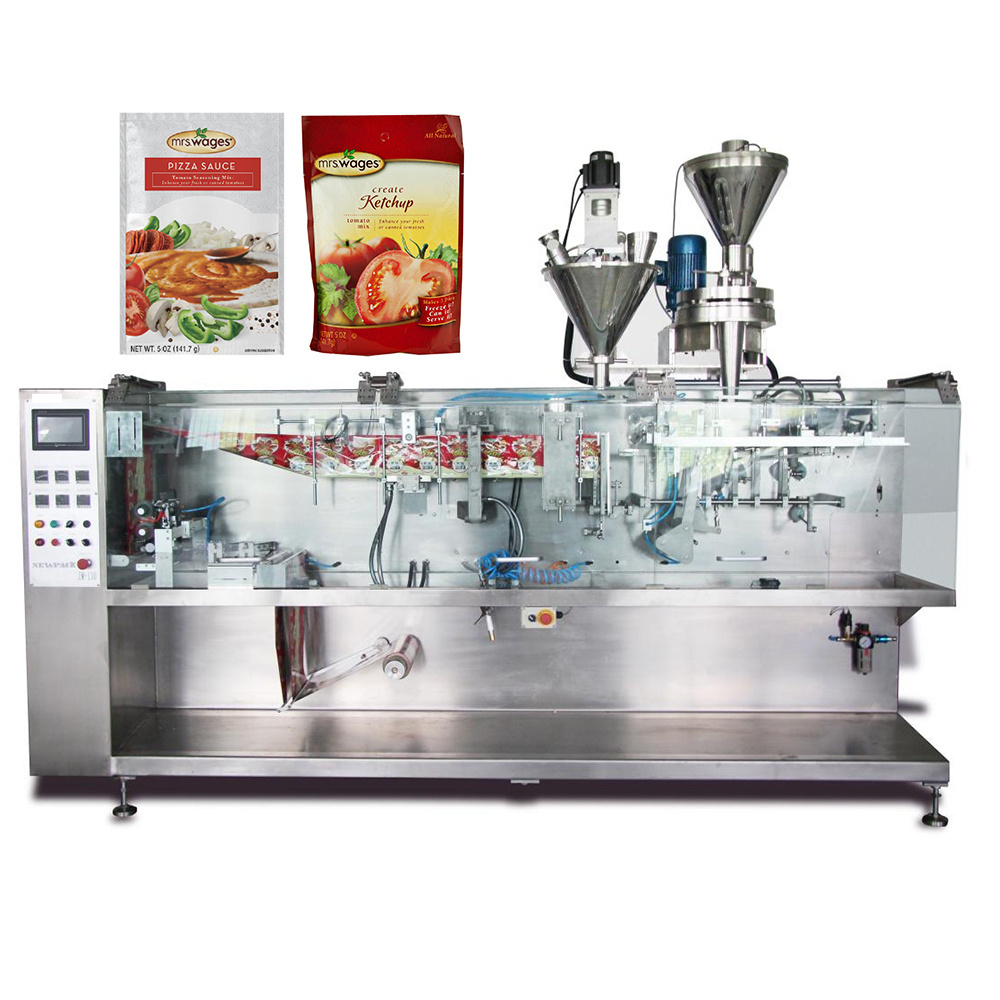

Pouch Filling Packing Machine
|
|
Packaging speed
|
60bags/mim
|
|
filling methods
|
Auger Filler/Gravity Dosing Filler/Piston Pump Filler/Volumetric Cup Filler
|
|
Function
|
Filling and sealing
|
|
Pouch dimensions
|
Minimum: 60mm*80mm Maximum: 160mm*200mm
|
|
Application industry
|
foodstuff, pesticide, pharmaceuticals, daily chemicals etc
|
|
Pouch volume
|
Maximum:300c.c
|
|
package sealing
|
three-side or four-side sealed
|
|
Filling stations
|
1 heads
|
|
Machine operation
|
Horizontal form fill and seal
|
|
Certification
|
CE
|
Features:
1. Mainframe Frequency Conversion System: Imported AC motor and frequency conversion, stable and reliable operation; low speed and large torque ensure excellent performance even under sharp fluctuations of load.
2. Servo Blanking System: Panasonic servo motor controls rotation of blanking bolt directly by pulse number; stable and reliable performance,convenience of regulation.
3. Package Making System: The package making and sealing and filling systems are independent to each other in this system. The two systems are linked and coordinated by mechanical coupling and programmable logic controller (PLC). Therefore, the system is suitable for a variety of products and sizes of package.
4. Finished Product Sealing System: Fully automatic production facility that finishes package making, metering, filling, sealing and other packaging processes by heat-sealing packaging material (polyethylene membrane, multilayer composite membrane etc.). The package shall be three-side or four-side sealed flat package. Fillers of different types may package a variety of products.
5. Integrated Control System: It is composed of PLC, frequency converter etc., featuring a high level of integration, strong control capabilities and high reliability of operation. Touch screen technology eases and facilities operation. The optoelectric transducer,encoder, proximity switch etc. are all equipped with imported and advanced sensing elements, so the mechanical and electricalintegration of the entire frame is embodied perfectly.
Details Images
With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.
Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.
Easy to operate,adopt advanced PLC from SIEMENS , mate with SIEMENS touch screen and electric control system, the man-machine interface is friendly.
Product Specifications
Frequency conversion adjusts the speed: this machine uses SIEMENS frequency changer equipment, can be adjusted within the range according to the needs of reality in production
It machines with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
Packing&Shipping
Company Introduction
FAQ
Q:How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.
Q: How can I trust you for the first time business?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of the transaction.
Q: How about the after service and guarantee period?
A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
