Quick Details
-
Throat Depth (mm):
-
0 mm
-
Width of Working Table (mm):
-
80 mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Metform
-
Weight (KG):
-
540
-
Motor Power (kw):
-
0 kw
-
product name:
-
manual sheet bending machine
-
Raw Material:
-
Sheet / Plate Rolling
-
brand:
-
metform
-
industry:
-
color steel tile industry
-
payment terms:
-
FOB Shanghai
-
After-sales Service Provided:
-
Online support
-
Type:
-
Metal Bender Tools
-
Application:
-
Metal Sheet Bending
-
Keyword:
-
manual bending folding machine
Quick Details
-
Machine Type:
-
Torsion Bar
-
Length of Working Table (mm):
-
2550
-
Slider Stroke (mm):
-
150 mm
-
Throat Depth (mm):
-
0 mm
-
Width of Working Table (mm):
-
80 mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Metform
-
Weight (KG):
-
540
-
Motor Power (kw):
-
0 kw
-
product name:
-
manual sheet bending machine
-
Raw Material:
-
Sheet / Plate Rolling
-
brand:
-
metform
-
industry:
-
color steel tile industry
-
payment terms:
-
FOB Shanghai
-
After-sales Service Provided:
-
Online support
-
Type:
-
Metal Bender Tools
-
Application:
-
Metal Sheet Bending
-
Keyword:
-
manual bending folding machine
Products Description

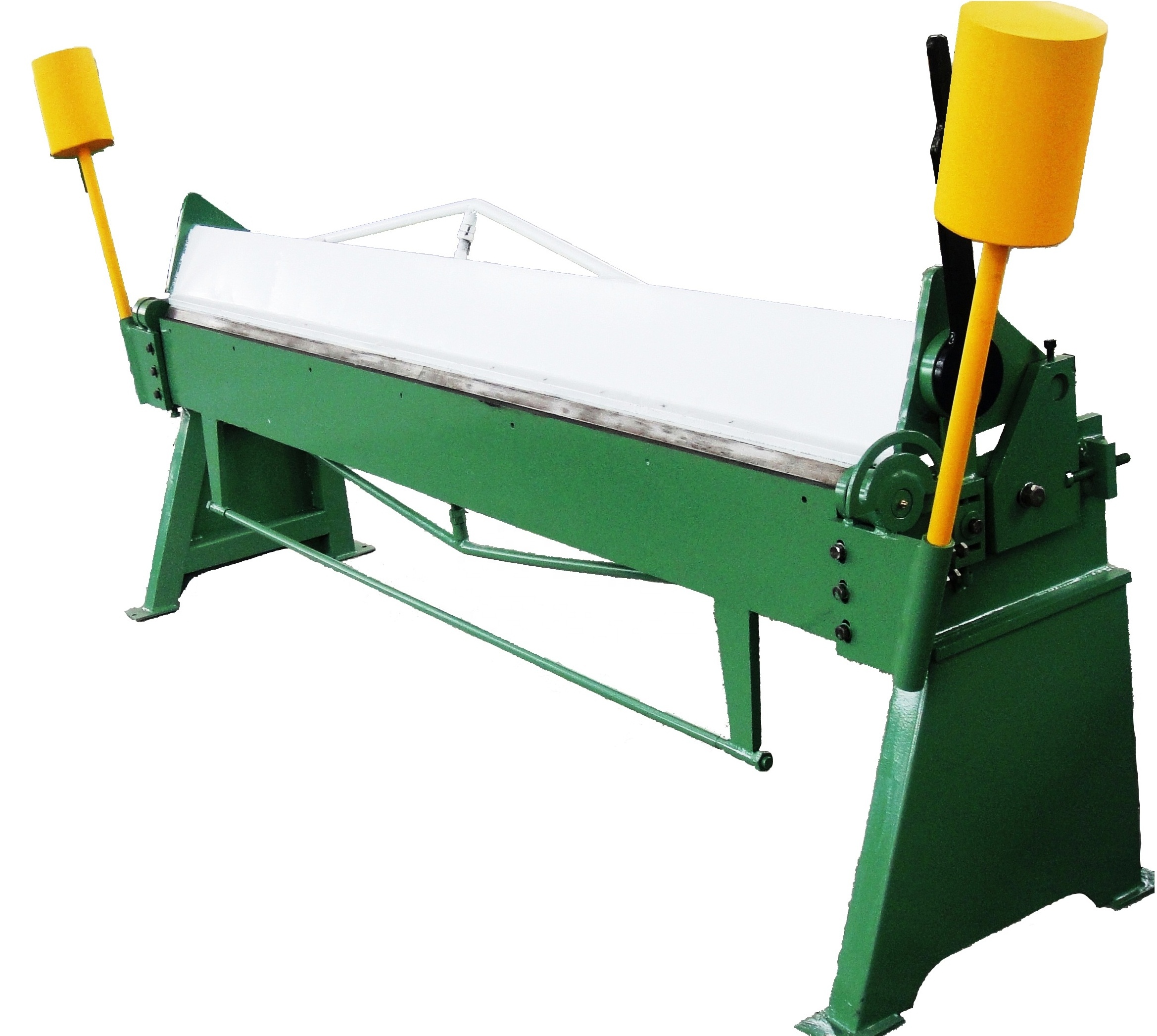

Metform manual sheet bending folding machine plate bender for sheet metal working
Manual Sheet Bending Machine, Model WH06-1.5x500. Hand operated.
Other capacity models are available，referring to below table for some of them.
|
|
Model
W-2.5x1220A |
Model
WH06-2x1550 |
Model
W-2x2000A |
Model
WH06-1.5x2500 |
Model
WH06-1.2x3200 |
|
Capacity
|
16gauge
2.5mm |
18gauge
2mm |
16gauge
2.5mm |
18gauge
1.5mm |
1.2mm
|
|
Bending length
|
48in
1220mm |
61in
1500mm |
79in
2000mm |
98in
2500mm |
123in
3200mm |
|
Maximum liff of beam
|
1-7/8in
47mm |
1-7/8in
47mm |
1-7/8in
47mm |
1-7/8in
47mm |
1-7/8in
47mm |
|
Front to real beam adjustment
|
1-7/8in
47mm |
1-7/8in
47mm |
1-7/8in
47mm |
1-7/8in
47mm |
1-7/8in
47mm |
|
Minimum reverse bend
|
1/4in
6mm |
1/4in
6mm |
1/4in
6mm |
1/4in
6mm |
1/4in
6mm |
|
Minimum flange in capacity material
|
1in
25mm |
1in
25mm |
1in
25mm |
1in
25mm |
1in
25mm |
|
Machine Size(mm)
|
75x32x39in
1906x803x995 |
92x39x48in
2343x987x1223 |
123x52x64in
3124x1316x1631 |
154x65x81in
3905x1645 x2039 |
197x83x103in
4998x2106x 2610 |
|
Shipping weight
|
359kg
|
441kg
|
588kg
|
735kg
|
941kg
|
