- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
PROYU
-
Model Number:
-
PY-2000 kits
-
Product name:
-
Access Control System Products
-
name:
-
Smart card access control
-
Working voltage:
-
DC12V±10%
-
software:
-
no
-
Communication:
-
TCP IP
Quick Details
-
Special Features:
-
Other
-
Customized support:
-
Software reengineering, OEM, ODM, Customized logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PROYU
-
Model Number:
-
PY-2000 kits
-
Product name:
-
Access Control System Products
-
name:
-
Smart card access control
-
Working voltage:
-
DC12V±10%
-
software:
-
no
-
Communication:
-
TCP IP
TCP IP Network RFID Access Control Panel Set With AC110V/220V Power Supply 600Lbs 280Kg Force Magnetic Lock
Access Board:
Communication: TCP/IP
Software Supportable Database: Access & SQL
Power Supply Input: DC 12V, 4~7A
Input Format of Reader: Wiegand 26 bit
Door Controlled: 1 door (get in the door by swiping card, and get out door by button)
Quantity of Users: 20,000 users
Quantity of Event Buffers (offline): 100,000 event buffers
Max Distance from Reader to Controller: 100m (suggestion distance 80m)
Features of power box:
With charge and discharge function,can add a 7AH 12V DC battery,can meet the needs of an electric mortise lock,a card reader and a controller to work 35 hours after power failure (External battery not included)
Support max 2-4 Card Reader and 1 access control board
Support max 3 electric bolt lock or 3 280KG magnetic lock
Power Box:
AC Input: AC110V/220V
DC Output: DC12V/5A
Magnetic Lock:
Material : Stainless steel
Input Voltage: 12 or 24VDC
Current: 12V/500mA or 24V/250mA Holding: 280kg (600Lbs)
NC mode - (locked while supplied with power), fail safe
Dimensions (body): 250Lx48.5Wx25H(mm)
Keyfobs & Cards:
Operation Frequency: 125KHz
Reading distance: 3~10cm
Standard: EM4100 compatible
Each keyfob has an uniqe ID number. Read only and not rewritable

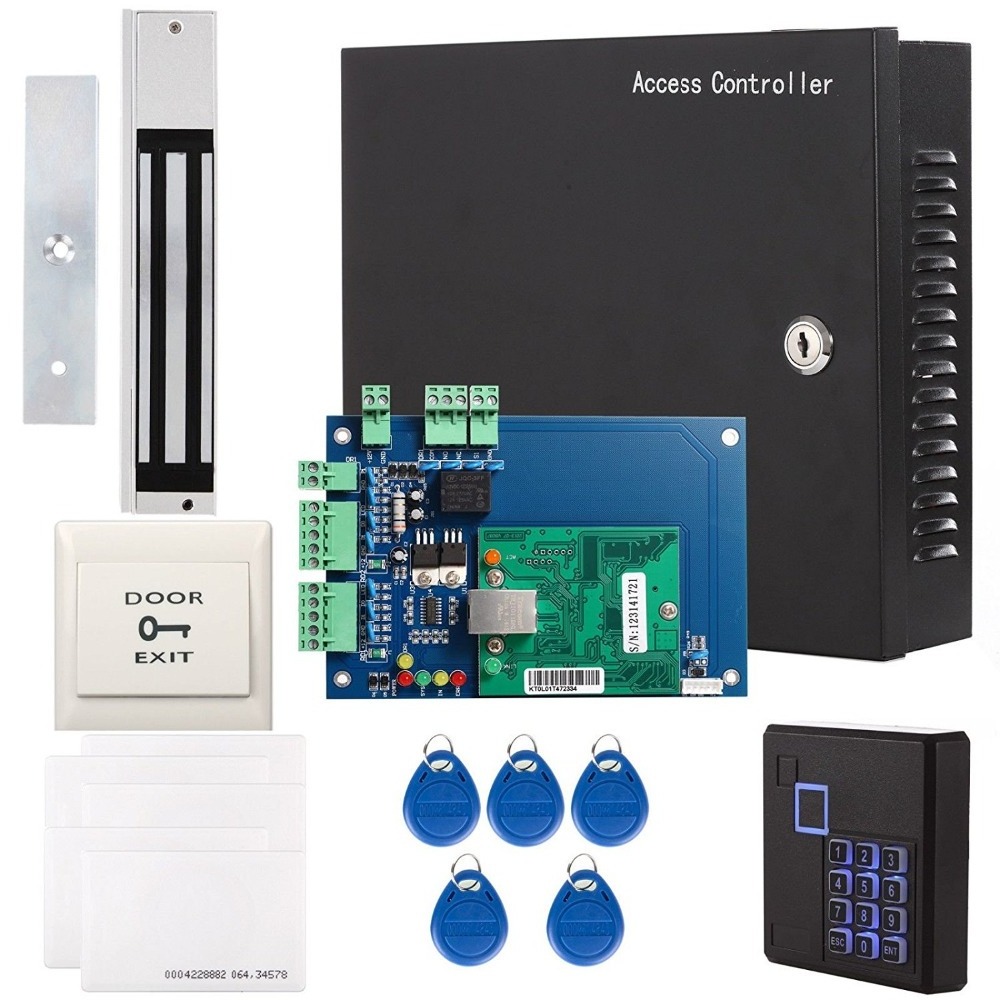

Package:
1 x Access control board
1 x Electric magnetic lock
1 x Metal power supply
1 x Exit button
5 x RFID keyfobs
5 x ID cards (Thickness: 0.8mm)
1 x User manual
Our services
Payment Terms 1. Paypal
2. T/T (Telegraphic Transfer) or Western Union
3. Cash for face to face business
Shippment Method
1. International Express(DHL, TNT, Fedex, UPS, EMS), take about 3-7 days
2. International Airline, take about 5-15 days differently.
3. International Sea Shipping, slow but cheap for heavy goods, take about 10-50 days differently.
Product Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
