Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CH
-
Model Number:
-
JKL10
-
color:
-
as customer like
Quick Details
-
Power Source:
-
Electric
-
Application:
-
pile driver
-
Capacity:
-
10ton
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CH
-
Model Number:
-
JKL10
-
color:
-
as customer like

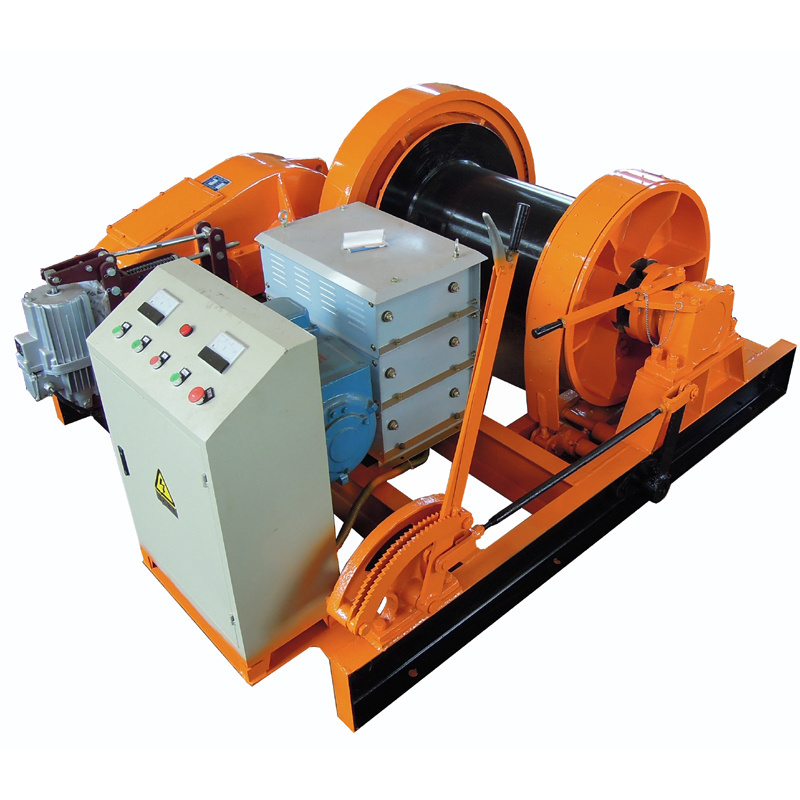

electric free fall winch (marine winch, anchor winch)
electric single drum free fall hand brake marine winch for pile driver or lifting on boat as marine winch, with clutch, ratchetratchet pawl.
This series winch mostly are applicable for free fall rushing hole and pilling. Characteristic of this winch is that its rope roll are could pull out.
| Model | JKL3 | JKL5 | JKL8 | JKL10 |
| line capacity | 30KN | 50KN | 80KN | 100KN |
| speed | 30m/min | 30m/min | 30m/min | 30m/min |
| dia. of drum | 320mm | 400mm | 525mm | 550mm |
| wire rope dia. | 18mm | 22mm | 26mm | 30mm |
| rope capacity | 180m | 250m | 350m | 350m |
| motor power | 22kw | 37kw | 55kw | 75kw |
| weight | 1500kg | 3000kg | 5400kg | 7800kg |
