Quick Details
-
Brand Name:
-
Ruilin
-
Model Number:
-
6061 6063 6101 etc
-
Application:
-
Pipe Profile Constructure
-
Hardness:
-
soft/middle/hard
-
Al (Min):
-
8.3%
-
Certification:
-
ISO9001
-
Product name:
-

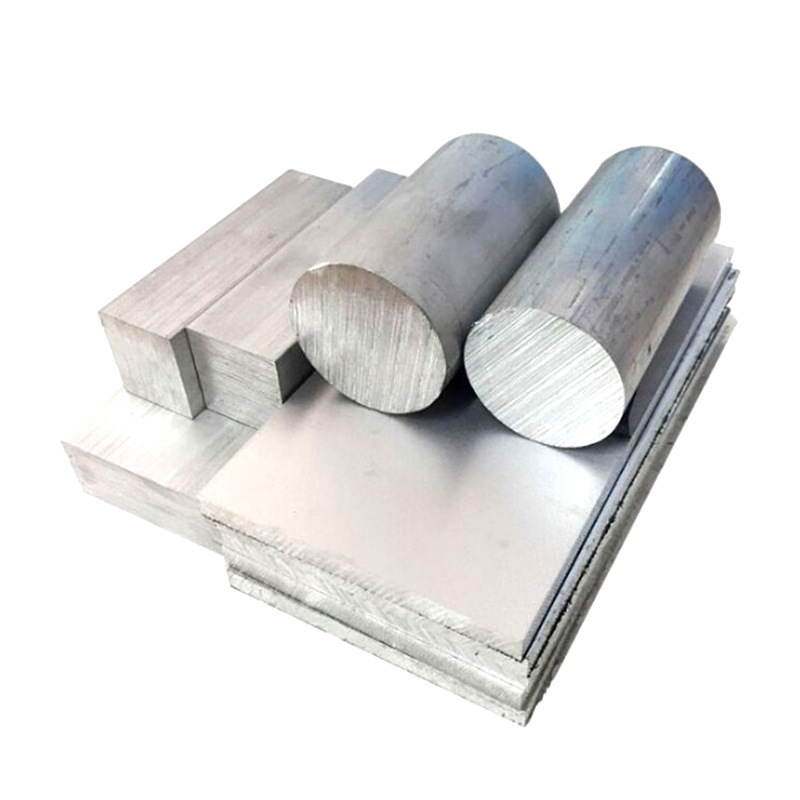

Aluminum Bar
-
Sample:
-
Avaliable
-
Technology:
-
Extruded + Precision Machining + Surface Treatment
-
Standard:
-
ASTM
-
MOQ:
-
1 Ton
-
Package:
-
Sea-worth Package
-
Payment Terms:
-
30%T/T Advance + 70% Balance
-
Length:
-
Custom Length
Quick Details
-
Grade:
-
6000 Series
-
Tolerance:
-
±1%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ruilin
-
Model Number:
-
6061 6063 6101 etc
-
Application:
-
Pipe Profile Constructure
-
Hardness:
-
soft/middle/hard
-
Al (Min):
-
8.3%
-
Certification:
-
ISO9001
-
Product name:
-
Aluminum Bar
-
Sample:
-
Avaliable
-
Technology:
-
Extruded + Precision Machining + Surface Treatment
-
Standard:
-
ASTM
-
MOQ:
-
1 Ton
-
Package:
-
Sea-worth Package
-
Payment Terms:
-
30%T/T Advance + 70% Balance
-
Length:
-
Custom Length
Product Details
|
Item
|
Aluminium bar ,Aluminium rod, Aluminium alloy bar, Aluminium alloy rod
|
|
Standard
|
GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
|
|
Grade
|
1000, 2000, 3000, 4000, 5000, 6000series
a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. b) 2000 Series: 2014, 2024, etc. c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. d) 4000 Series: 4045, 4047, 4343, etc. e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. f) 6000 Series: 6061, 6063, 6082, 6A02, etc. |
|
Length
|
1-12m
|
|
Diameters
|
3-800mm
|
|
Temper
|
0-H112,T3-T8, T351-851
|
|
Surface
|
Anodizing,brush,sand blast,powder coating,polished,mill,polished,etc..
|
|
Aplication
|
Aluminum bar can be widely used as aircraft structure,rivers,missile components,truck wheel,screw elements or other various structures.
|
|
Aplication
|
1)Further making utensil2）Solar reflective film
3)The appearance of the building 4)Interior decorating; ceilings, walls,etc 5)Furniture cabinets 6)Elevator decoraction 7)Signs, nameplate,bags making 8)Decorated inside and outside the car 9)Household appliances:refrigerators, microwave ovens, audio equipment,etc |
|
MOQ
|
1 ton , We can accept sample order.
|
|
Shipment Time
|
Within 7-15 workdays after receiving deposit
|
|
Export Packing
|
Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
|
Capacity
|
25000 tons/month
|
|
Container size
|
20ft GP:5898mm(Length)*2352mm(Width)*2393mm(High)
40ft GP:12032mm(Length)*2352mm(Width)*2393mm(High) 40ft HC:12032mm(Length)*2352mm(Width)*2393mm(High) |
Chemical Composition
|
Alloy
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
Al
|
|
|
1050
|
0.25
|
0.4
|
0.05
|
0.05
|
0.05
|
—
|
0.05
|
0.03
|
99.5
|
|
|
1070
|
0.2
|
0.25
|
0.04
|
0.03
|
0.03
|
—
|
0.04
|
0.03
|
99.7
|
|
|
1100
|
0.95 Si + Fe
|
|
0.05-0.20
|
0.05
|
—
|
—
|
0.1
|
—
|
99
|
|
|
2024
|
0.5
|
0.5
|
3.8-4.9
|
0.30-0.9
|
1.2-1.8
|
0.1
|
0.25
|
0.15
|
Rem.
|
|
|
3003
|
0.6
|
0.7
|
0.05-0.20
|
1.0-1.5
|
—
|
—
|
0.1
|
—
|
Rem.
|
|
|
3004
|
0.3
|
0.7
|
0.25
|
1.0-1.5
|
0.8-1.3
|
—
|
0.25
|
—
|
Rem.
|
|
|
3005
|
0.6
|
0.7
|
0.3
|
1.0-1.5
|
0.20-0.6
|
0.1
|
0.25
|
0.1
|
Rem.
|
|
|
5005
|
0.3
|
0.7
|
0.2
|
0.2
|
0.50-1.1
|
0.1
|
0.25
|
—
|
Rem.
|
|
|
5052
|
0.25
|
0.4
|
0.1
|
0.1
|
2.2-2.8
|
0.15-0.35
|
0.1
|
—
|
Rem.
|
|
|
5252
|
0.08
|
0.1
|
0.1
|
0.1
|
2.2-2.8
|
—
|
0.05
|
—
|
Rem.
|
|
|
6061
|
0.40-0.8
|
0.7
|
0.15-0.40
|
0.15
|
0.8-1.2
|
0.04-0.35
|
0.25
|
0.15
|
Rem.
|
|
|
7075
|
0.4
|
0.5
|
1.2-2.0
|
0.3
|
2.1-2.9
|
0.18-0.28
|
5.1-6.1
|
0.2
|
Rem.
|
|
Physical Properties
|
Alloy
|
Temper
|
Tensile Strength
|
Yield Strength
|
Elongation (%)
|
|
Tensile Strength
|
Yield Strength
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(ksi)
|
(ksi)
|
0.01-0.05 in
|
0.051-0.125 in
|
(MPa)
|
(MPa)
|
|
|
1100 |
H12
|
16
|
15
|
4
|
12
|
110.3
|
103.4
|
|
|
|
H14
|
18
|
17
|
3
|
10
|
124.1
|
117.2
|
|
|
3003 |
H12
|
19
|
18
|
9
|
11
|
131
|
124.1
|
|
|
|
H14
|
22
|
21
|
3
|
7
|
151.7
|
144.8
|
|
|
3004 |
H32
|
31
|
25
|
6
|
15
|
213.7
|
172.4
|
|
|
|
H34
|
35
|
29
|
5
|
10
|
241.3
|
199.9
|
|
|
3005 |
H12
|
26
|
24
|
5
|
13
|
179.3
|
165.5
|
|
|
|
H14
|
29
|
28
|
4
|
9
|
199.9
|
193.1
|
|
|
5005 |
H12
|
20
|
19
|
5
|
9
|
137.9
|
131
|
|
|
|
H14
|
23
|
22
|
4
|
7
|
158.6
|
151.7
|
|
|
5052 |
H32
|
33
|
28
|
7
|
10
|
227.5
|
193.1
|
|
|
|
H34
|
38
|
31
|
6
|
8
|
262
|
213.7
|
|
|
5056 |
O
|
42
|
22
|
23
|
24
|
289.6
|
151.7
|
|
|
|
H38
|
60
|
50
|
6
|
13
|
413.7
|
344.7
|
|
|
6061 |
T4
|
35
|
21
|
22
|
24
|
241.3
|
144.8
|
|
|
|
T6
|
45
|
40
|
12
|
17
|
310.3
|
275.8
|
|
|
7075 |
O
|
33
|
15
|
16
|
18
|
227.5
|
103.4
|
|
|
|
T6
|
83
|
73
|
11
|
12
|
572.3
|
503.3
|
|
Product Surface
Product Application
Product packaging
Certifications
FAQ
1. Q: Are you a manufacturer?
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock.
A:Yes, we are manufacturers. We have our own factory and our own company.
I believe we will bethemost suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.
I believe we will bethemost suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.
Third party testing services are also available.
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best
price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock.
If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
8. Q: What is your MOQ?
A: 1 Tons
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
8. Q: What is your MOQ?
A: 1 Tons
