Quick Details
-
Operating weight:
-
34000kg
-
Maximum lifting capacity:
-
45T
-
Rated power of engine:
-
180kw
-
Minimum turning radius:
-
3200mm
Quick Details
-
Weight (KG):
-
25000
-
Place of Origin:
-
China
-
Brand Name:
-
SHANTUI
-
Operating weight:
-
34000kg
-
Maximum lifting capacity:
-
45T
-
Rated power of engine:
-
180kw
-
Minimum turning radius:
-
3200mm

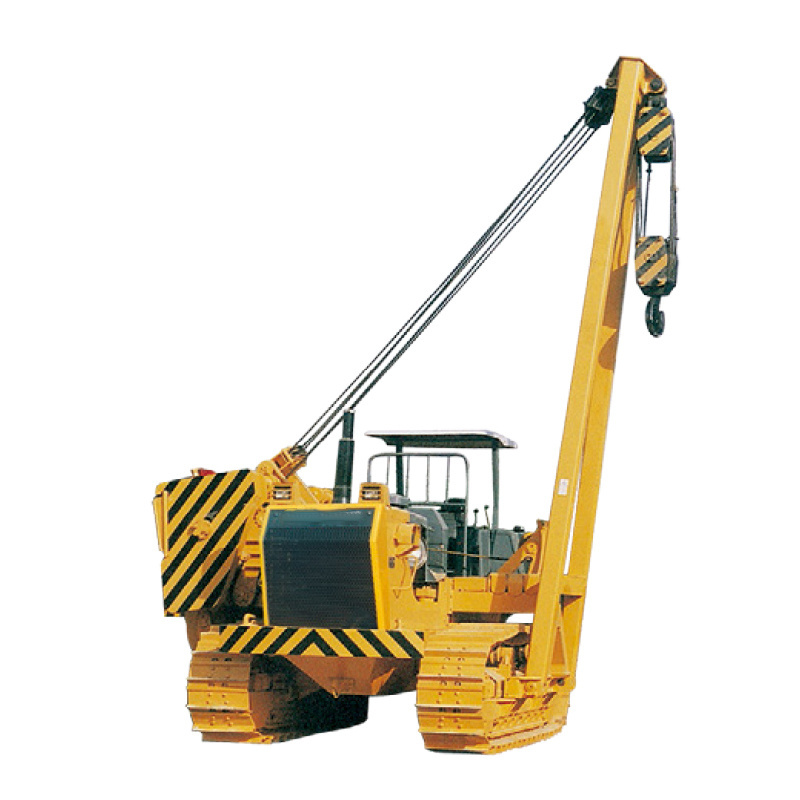

China brand Shantui 45 ton SP45Y side boom lifting hydraulic transmission pipelayer
Contact way
Sales Manager
Felicity Chen
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-15170090068
Web: www.newindu.com
Felicity Chen
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-15170090068
Web: www.newindu.com
Products Description
FEATURES
Easy maintenances
* The structural parts inherit the excellent and stable quality of Shantui mature products.
* The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
* The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high
reliability.
Operating performance
* The control of working device is composed of the luffing control, lifting control, and counterweight control. The reducing type pilot control valve is applied to control the hydraulic reversing valve, featuring simple controls, high flexibility and labor-saving, good fine adjustment performance, and easy arrangement on machine body.
* The hook and boom controls are integrated in one joystick and the counterweight is controlled by one separate joystick to operate under diversified working conditions conveniently and rapidly, achieve good inching performance, and guarantee the user’s accuracy requirement and promote the operating efficiency.
* The hydraulic motors of hook and boom winches incorporate extremely high volumetric efficiency and the excellent balance valves eliminate the secondary gliding of winches and the jitter of unloaded hook. In addition, the clutch incorporated in the hook winch realizes the free hook lowering function.
Product Paramenters
|
Product
|
SP45Y
|
|
Operating weight (Kg)
|
34000
|
|
Maximum lifting capacity(T)
|
45
|
|
Rated power of engine(kw)
|
180Kw
|
|
Minimum turning radius (mm)
|
3200mm
|
|
Ground pressure (Mpa)
|
0.085
|
|
Engine model
|
NT855-C280S10
|
|
Number of cylinders× cylinder diameter× stroke(mm×mm)
|
6-139.7x152.4
|
|
Rated power/rated speed (kw/rpm)
|
180/2000
|
|
Maximum torque (N.m/r/min)
|
1085/1300
|
|
Length (mm)
|
4855
|
|
Width (mm)
|
3690
|
|
Height (mm)
|
2700
|
|
Forward gear 1/Reverse gear 1 (km/h)
|
0-3.8/0-4.9
|
|
Forward gear 2/Reverse gear 2 (km/h)
|
0-6.8/0-8.5
|
|
Forward gear 3/Reverse gear 3 (km/h)
|
0-11.8/0-14.3
|
