Quick Details
-
Model Number:
-
ZCUT-B80D
-
Name:
-
High-Speed Fully automatic Power cable/wire spool winding machine
-
Application:
-
Wire twisting; Cable winding; Cable bundling
-
Winding Speed:
-
≤1200PCS/ H;≤1000PCS/ H
-
Winding OD:
-
≤40M
-
Left head length:
-
≤70mm;40 - 130mm
-
Suitable wire type:
-
AC; DC power cord USB wires
-
Size:
-
1100*1200*1800 MM
-
Number of Turns for tie:
-
Can be adjusted
-
Power voltage:
-
AC220V/110V
-
Weight:
-
200KG
Quick Details
-
Use:
-
WINDING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YH
-
Model Number:
-
ZCUT-B80D
-
Name:
-
High-Speed Fully automatic Power cable/wire spool winding machine
-
Application:
-
Wire twisting; Cable winding; Cable bundling
-
Winding Speed:
-
≤1200PCS/ H;≤1000PCS/ H
-
Winding OD:
-
≤40M
-
Left head length:
-
≤70mm;40 - 130mm
-
Suitable wire type:
-
AC; DC power cord USB wires
-
Size:
-
1100*1200*1800 MM
-
Number of Turns for tie:
-
Can be adjusted
-
Power voltage:
-
AC220V/110V
-
Weight:
-
200KG
fully automatic power cable winding coiling and tying machine
Used for:
AC power cord, DC power cord, headphones line, audio line, USB cable, the video line, HDMI HD line, etc all kinds of the transmission line with plastic bags core twisted into the beam , also can be used on other tapes to use packet core sealing glue.
Specification:
| Modle | ZCUT-CR0 | ZCUT-B80D | ZCUT-BT8 | ZCUT-BT0 |
| Function | Fully-automated wire wound winding machine, unmanned, high speed | 8 shape and circle | Thick line, big 8 shapes, double tie type | Large circle type |
| Applicable wire | USB/DC/power cable | USB/DC/AC | Thick power cord | Thick power cord |
| Winding appearance | circle | 8 shape and circle | 8 shape two tie | Big circle |
| Applicable wire diameter | ≤10MM | ≤6.2MM/7MM | ≤10MM | ≤8MM |
| Final circle diameter | <50mm | <40mm | <55mm | <50mm |
| Theoretical yield | ≤700pcs/H | ≤1200/1000pcs/H | ≤1000pcs/H | ≤1000pcs/H |
| Winding distance | 80-180mm | 80-150/180mm | 230-450mm | 180-330mm |
| Head length | 40-130mm | 70mm/40-130mm | 0-300mm | 40-200mm |
| Tail length | >40mm | >120mm | >200mm | >40mm |
| Applicable cable tie | Plastic coated iron core | Plastic coated iron core | Plastic coated iron core | Plastic coated iron core |
| Pressure requirements | 0.4-0.55Mpa | 0.4-0.55Mpa | 0.4-0.55Mpa | 0.4-0.55Mpa |
| Size | 2400*1000*1480mm | 1000*1200*1800 | 1400*1000*1480mm | 1400*1000*1480mm |

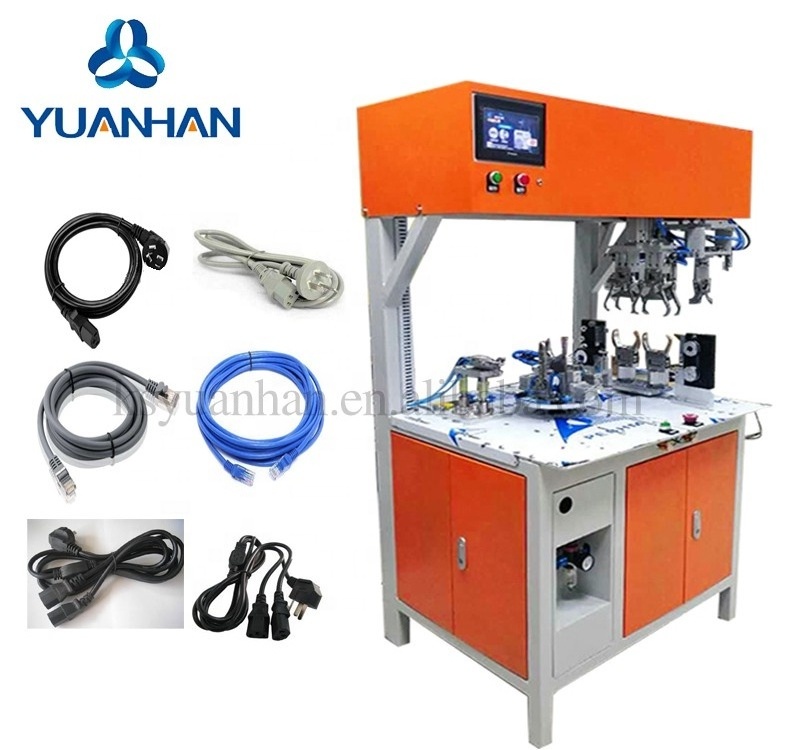

Product showing
Semi automatic wire winding tying machine
Packaging size : 1100*1200*1800 MM GW: 200kg
