Quick Details
-
Model Number:
-
SPMK700
-
Accuracy:
-
±0.02%FS, ±0.05%FS, ± 0.1%FS , ±0.2%FS optional
-
Pressure range:
-
to 36,000 psi (2500 bar)
-
Connector:
-
Based M20X1.5 ,optional
-
Application:
-
used with calibration pump
-
accessories:
-
sealing rings,
-
weight:
-
0.7kg
-
dimension:
-
120x45mm
-
Communication:
-
RS232
-
screen:
-
big screen with back light
-
Power:
-
battery or adaptor
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
SPMK
-
Model Number:
-
SPMK700
-
Accuracy:
-
±0.02%FS, ±0.05%FS, ± 0.1%FS , ±0.2%FS optional
-
Pressure range:
-
to 36,000 psi (2500 bar)
-
Connector:
-
Based M20X1.5 ,optional
-
Application:
-
used with calibration pump
-
accessories:
-
sealing rings,
-
weight:
-
0.7kg
-
dimension:
-
120x45mm
-
Communication:
-
RS232
-
screen:
-
big screen with back light
-
Power:
-
battery or adaptor

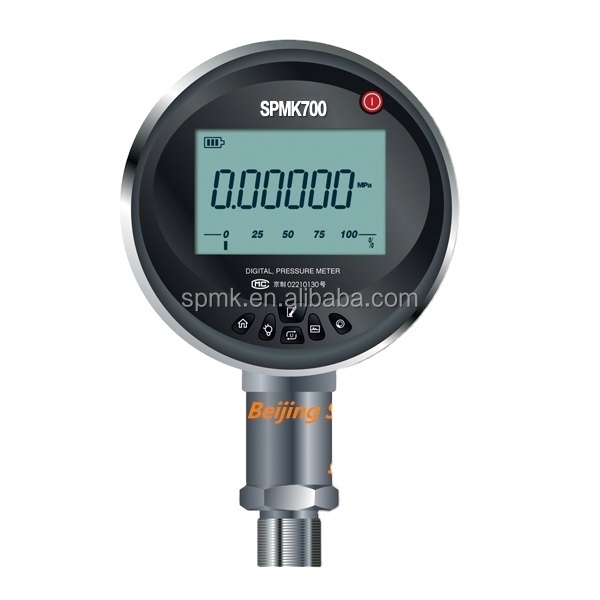

SPMK700 Portable Digital Pressure Calibrator:
The Digital Calibration Pressure Gauge SPMK 700 offers a complete pressure gauge with calibration capabilities. With optional accuracy and large 5 digit resolution, this gauge can be used in critical industrial applications where precision is most important. This versatile gauge only requires one AA battery and can operate up to 5,000 working hours.
Applications of SPMK700 Portable Digital Pressure Calibrator:
Calibrate pressure gauges.
Features of SPMK700 Precision Portable digital pressure calibrator:
|
Pressure Range |
0-36250 psi 0-2500 bar |
|
Accuracy |
0.2%F.S, 0.1% F.S, 0.05%F.S, 0.025%F.S |
|
10 Optional Units |
Pa,Kpa,Mpa,mmHg,KFG/cm 2 ,cmH2O,mmH2O,PSI,mbar,bar |
|
Connection |
M20x1.5 male or 1/4″NPT(or customized) |
|
Communication |
RS232 Modbus |
|
Power Supply |
li-ion battery or adapter |
|
Environmental Temperature |
0~122°F (0~ 50°C) |
|
Environmental Relative humidity |
≤ 95%R.H |
|
Atmospheric Pressure |
0.86~1.01 bar (86~101kpa) |
|
Overall Dimensions |
120x45 mm |
|
Net Weight |
0.7kg |
|
CE/ISO Approved, Explosion-proof Certificate |
|
|
Company website: www.bestcalibrator.com |
|
Specifications of SPMK700 portable Digital pressure calibrator:
|
Pressure range |
to 36,000 psi (2500 bar) |
|
Accuracy |
± 0.02%FS, ± 0.05%FS, ± 0.1%FS , ± 0.2%FS optional |
|
Dimension |
φ 115×36 (mm) |
|
Net Weight |
0.8kg . |
|
Ambient Environment |
|
|
Temperature |
0~122°F (0~ 50°C) |
|
Relative humidity |
<95%R.H |
|
Atmospheric pressure |
0.86~1.06 bar ( 86~106kpa) |
|
Working place |
In field or laboratory |
