Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
WQ
-
Model Number:
-
WQ-re
-
Size:
-
Customized, OEM Size
-
Weight:
-
Customized
-

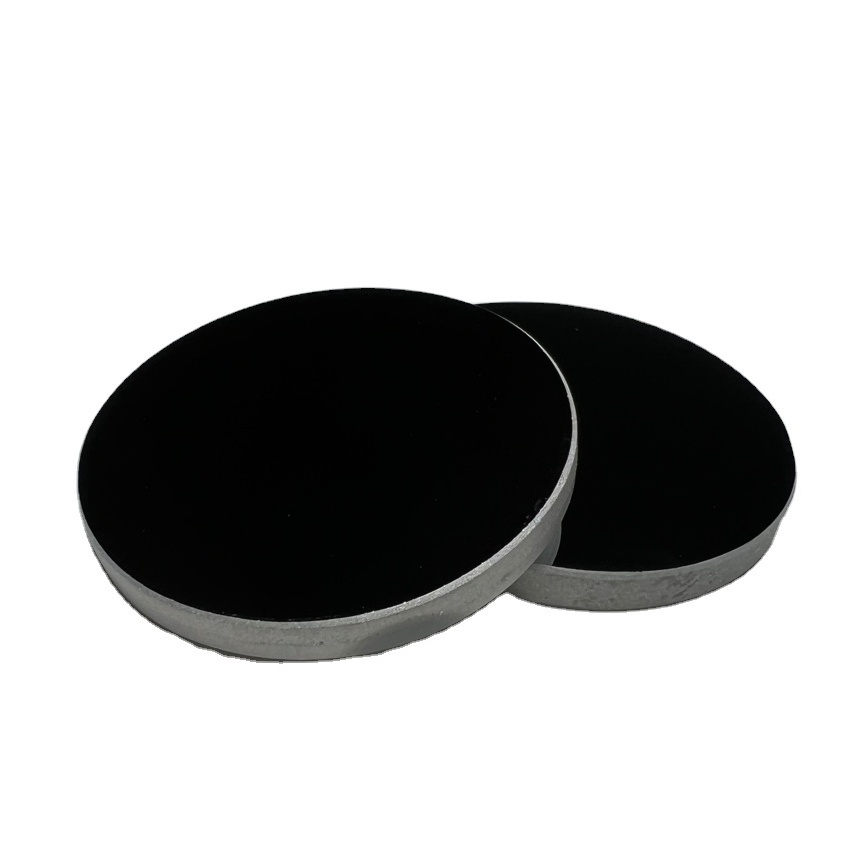

Product name:
-
optical reflective Glass
-
Material:
-
Fused Silica
-
Application:
-
Optical Instruments
-
MOQ:
-
1 Piece
-
DImension Tolerance:
-
0.00/-0.005mm
-
Thickness:
-
1-10mm /customized
-
Reflectance:
-
99%
-
Coating:
-
metal
-
Surface Accuracy:
-
Lmbda/8 - 2Lambda
Quick Details
-
Usage:
-
Optical
-
Structure:
-
Customized
-
Shape:
-
Customized
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
WQ
-
Model Number:
-
WQ-re
-
Size:
-
Customized, OEM Size
-
Weight:
-
Customized
-
Product name:
-
optical reflective Glass
-
Material:
-
Fused Silica
-
Application:
-
Optical Instruments
-
MOQ:
-
1 Piece
-
DImension Tolerance:
-
0.00/-0.005mm
-
Thickness:
-
1-10mm /customized
-
Reflectance:
-
99%
-
Coating:
-
metal
-
Surface Accuracy:
-
Lmbda/8 - 2Lambda
Products Description
We can customize windows，lenses and filters of various shapes, materials, and transmittance according to your drawings or requirements.Please feel free to
contact us.
|
Reflection
|
|
|
|
Protected Aluminum
|
Ravg>92% 0.4-0.7μm
|
|
|
Enhanced Aluminum
|
Ravg>92% 0.45-0.65μm, Ravg>90% 0.19-0.4μm
|
|
|
Protected Silver
|
Ravg>95% 0.5-0.8μm, Ravg>95% 2-10μm
|
|
|
Protected Gold
|
Ravg>95% 0.8-2μm, Ravg>84% 0.7-0.8μm
|
|
|
Dielectric Coatings Mirror
|
Ravg >99.99% >400nm, Ravg >99.99% 0.25-0.4μm
|
|
|
Substrates
|
H-K9L(N-BK7), Fused Silica, Si, Ge, Sapphire,
|
|
|
|
Copper, Aluminum
|
|
|
Diameter
|
3-250mm or customization
|
|
|
Dia. tolerance
|
+/-0.1mm, +/-0.01mm
|
|
|
Surface Flatness
|
lambda/4 , lambda/2, lambda/10， lambda/30
|
|
|
Parallelism
|
3'
|
|
|
AOI
|
0°-45°
|
|
|
Clear Aperture
|
> 95%
|
|
