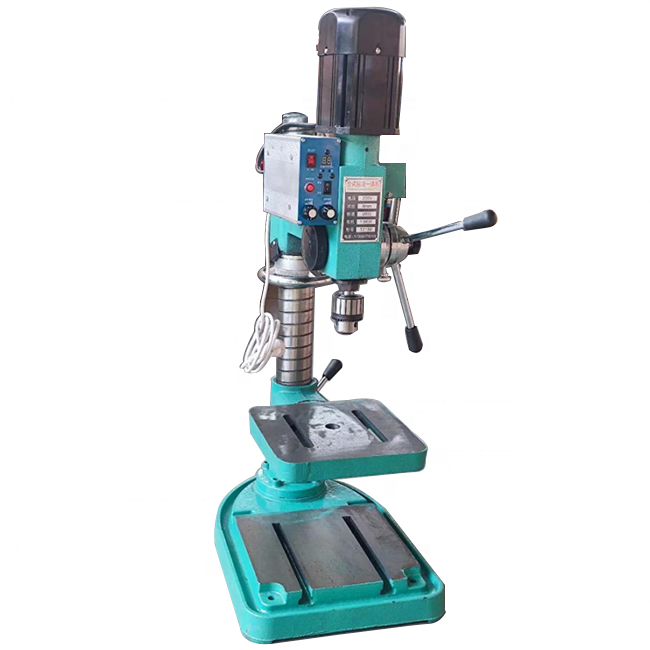

TZ150 1500W Heavy Duty Metal Bench Drill Press Machine With Threads Tapping Function
TZ150 1500W Heavy Duty Metal Bench Drill Press Machine With Threads Tapping Function
TZ150 1500W Heavy Duty Metal Bench Drill Press Machine With Threads Tapping Function
TZ150 1500W Heavy Duty Metal Bench Drill Press Machine With Threads Tapping Function
TZ150 1500W Heavy Duty Metal Bench Drill Press Machine With Threads Tapping Function
TZ150 1500W Heavy Duty Metal Bench Drill Press Machine With Threads Tapping Function

TZ150 1500W Heavy Duty Metal Bench Drill Press Machine With Threads Tapping Function

FOB Reference Price: Get Latest Price
≥1 Sets
US $420
≥5 Sets
US $405
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Jiangsu, China
Brand Name:
Tongchen
Voltage:
220V
Power (kW):
1500W
Weight (KG):
72.5 KG

Quick Details

type:
Pillar Drilling Machine
Max. Drilling Dia. (mm):
25
Range of Spindle Speed(r.p.m):
50 - 2000 r.p.m
Place of Origin:
Jiangsu, China
Brand Name:
Tongchen
Voltage:
220V
Power (kW):
1500W
Weight (KG):
72.5 KG
Specification
FEATURES
1/With Threads Tapping;
2/Brushless Motor, Variable Speed;
3/Speed Display;
4/L/R Speed Variable;
5/With Reverse Rotation Button;
Model
TZ150
Max Drilling Diameter (Cast iron/Steel)
25mm/22mm
Max Threads Tapping Capacity
M12
Speed
2000rpm
Speed Range:
Variable Speed
Motor
1500w Brushless Motor
Voltage
220v 50hz
Chuck Capacity
3-16mm
Spindle Taper
B16
Spindle Travel
76mm
Max. distance from spindle axis
to surface of column
200mm
Max. distance from spindle end
to surface of table
280mm
Max. distance from spindle end
to surface of base
500mm
Table Size
255*255mm
Base Size
350*500mm
Work Table Slot
18mm*150mm
T Slot
16mm
Column Diameter
72mm
Height
1040mm
Gross Weight/Net Weight
87.5/72.5kg
Package
60*60*100cm
