Quick Details
-
Max speed:
-
21000 rpm
-
Maximum centrifugal force:
-
48317 xg
-
Maximum capacity:
-
4000ml
Quick Details
-
Brand Name:
-
jintaishi
-
Model Number:
-
GL21A
-
Place of Origin:
-
Hunan, China
-
Max speed:
-
21000 rpm
-
Maximum centrifugal force:
-
48317 xg
-
Maximum capacity:
-
4000ml
Product Overview

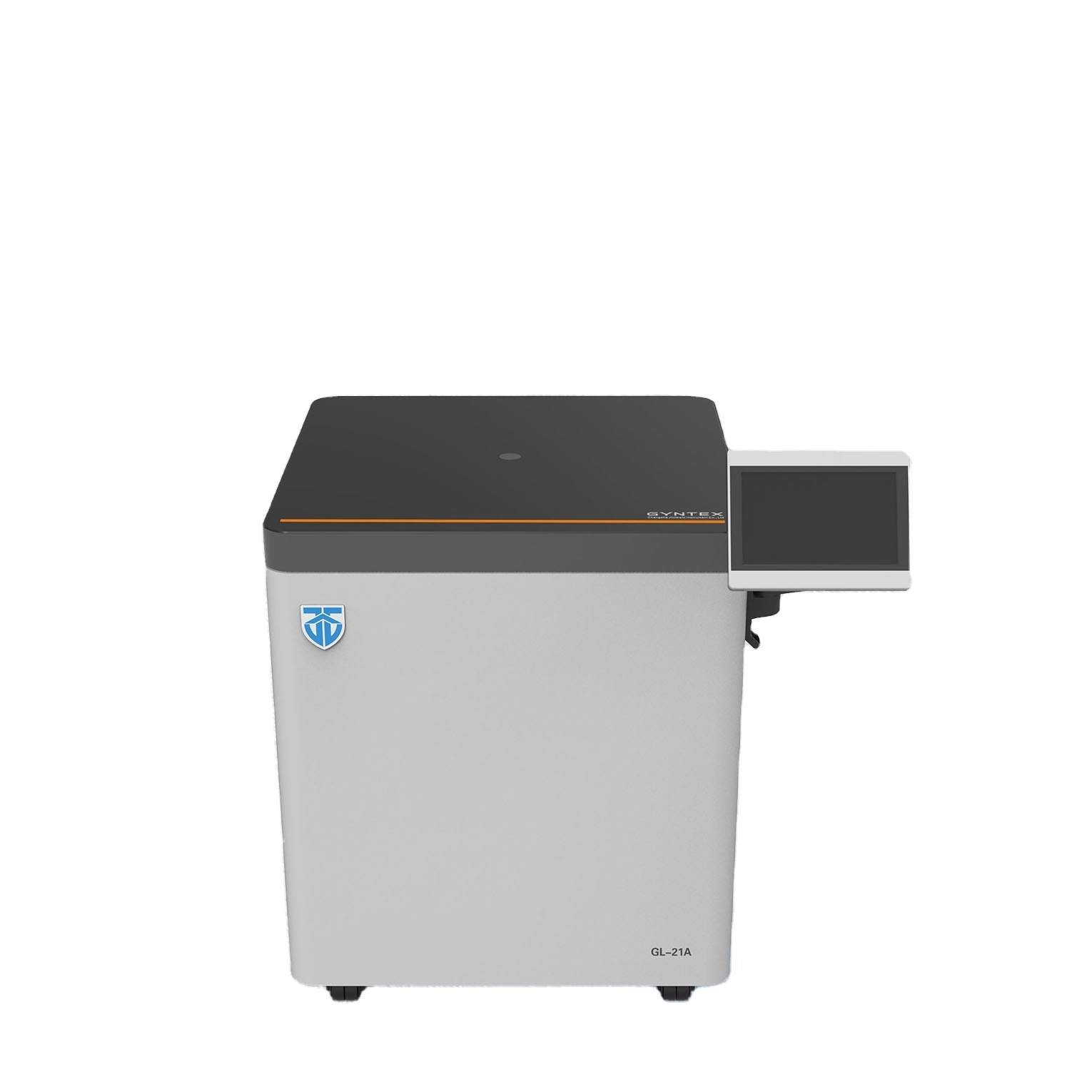

GL21A high-speed freezing centrifuge
Specially designed for customers who need high speed, the intelligent control technology of centrifuge is adopted. Its intelligent high-speed centrifuge control method technology (patent No. ZL202110746004.4) and intelligent high-speed centrifuge controller technology (patent No. ZL202121485461.4) realize intelligent speed control and speed accuracy control,It can intelligently identify the possible stall and imbalance of the rotor during operation and automatically make corresponding treatment to avoid safety accidents.Multi language switching and multi-user level management can meet the high-precision temperature control experiment of multi-national customers.
10 inch large size color LCD touch screen operation control system, user-friendly display, simple operation, intuitive display.The machine body is made of steel, and its surface is sprayed with paint. It is driven by variable frequency motor, controlled by microcomputer, protected by door cover and unbalanced, which makes your operation safer, simpler and more reliable.
It is suitable for the separation and purification of molecular biology, protein, cell, DNA and other biological samples.
FEATURES AT A GLANCE
High precision
Easy to operate
Low noise
It has a wide range of uses
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
NO
|
|
|
|
1
|
Maximum speed
|
21000 rpm
|
|
2
|
Maximum RCF
|
48317 xg
|
|
3
|
Maximum capacity
|
4000ml
|
|
4
|
Speed control range
|
300 到 21000rpm
|
|
5
|
Speed control accuracy
|
±10 rpm
|
|
6
|
Temperature setting range
|
-20℃ 到 +40℃
|
|
7
|
Temp Accuracy
|
±1 ℃
|
|
8
|
timer
|
Precise "second" unit mode: any setting from 1 second to 65535 seconds
|
|
9
|
Acceleration/deceleration control
|
Level 9 variable acceleration control, level 9 braking deceleration control and sliding deceleration control
|
|
10
|
Programming function
|
It can store 100 programming programs
|
|
11
|
Display and operation functions
|
Display and set speed/RCF (xg) operation, RTC (real-time control) operation (optional)
|
|
12
|
Device log management
|
Selection
|
|
13
|
Drive motor
|
Asynchronous motor (frequency conversion control)
|
|
14
|
Refrigeration equipment
|
Imported brand compressor (refrigerant: R404A)
|
|
15
|
Safety equipment
|
Door interlock, overspeed detection, imbalance detection, overtemperature detection
|
|
16
|
Screen display and operation
|
10 inch color LCD touch screen
|
|
17
|
size
|
760 W x 800 D x 905 H mm
|
|
18
|
Noise level
|
≤ 64 dB (A) (measured 1m in front of the equipment)
|
|
19
|
Power requirements
|
Single phase AC220 V ± 10%, 50Hz, 20A
|
|
20
|
Environmental requirements
|
When the room temperature is 31 ℃ to 40 ℃, the relative humidity decreases linearly from 80% to 50%
|
|
21
|
ambient temperature
|
Applicable ambient temperature for operation: 2 ℃ to 40 ℃;Applicable ambient temperature for performance guarantee: 15 ℃ to 25 ℃
|
|
22
|
weight
|
300 kg
|
Main features
● Simple swivel placement and self-locking system, fast, convenient and safe
● It has centrifuge door cover interlock control device, overspeed detection, imbalance, overtemperature and other safety protection functions
● When the standby time of the equipment reaches a certain time (settable), the refrigeration system function will be automatically closed, which can greatly reduce the energy consumption of the equipment in standby
● The maximum speed reaches 21000 rpm, and the maximum centrifugal force reaches 48317 xg.
● Various specifications of swivel can be selected and the swivel ID can be automatically identified (GL21AS) to avoid misoperation
● 10 inch large size color LCD touch screen operation control system, simple operation and intuitive display: setting parameters and real-time operation parameters are displayed on the same screen;It can realize step centrifugation and RTC (real-time control) operation
● Functions such as real-time curve recording mode and digital mode display, multi language switching, multi-user level management can be switched at any time
● User defined running program mode, which can easily describe each group of programs and make it easier to call
● Large capacity data storage: it can store equipment operation data, operation records, fault information records and statistical data for several months, and can export various data records at any time to facilitate user data storage and traceability management
● Quiet operation ≤ 64 dB (A), high speed control accuracy up to ± 10 rpm
● Airtight rotor, effectively preventing aerosol and liquid leakage
● Special equipment running status indication: standby yellow, running green, fault red three color light indication, which is visual and conspicuous, and can grasp the real-time running status of equipment at any time
● All aluminum alloy rotors are forged with 7A04 aviation aluminum alloy, with high tensile strength and yield strength, high safety, long service life, hard anodic oxidation treatment on the surface: thick oxide layer, strong surface insulation, acid and alkali resistance, etc.
Rotor collocation
