Quick Details
-
Power:
-
1000W
-
Dimension(L*W*H):
-
120x60x200cm
-
Weight:
-
220 KG
-

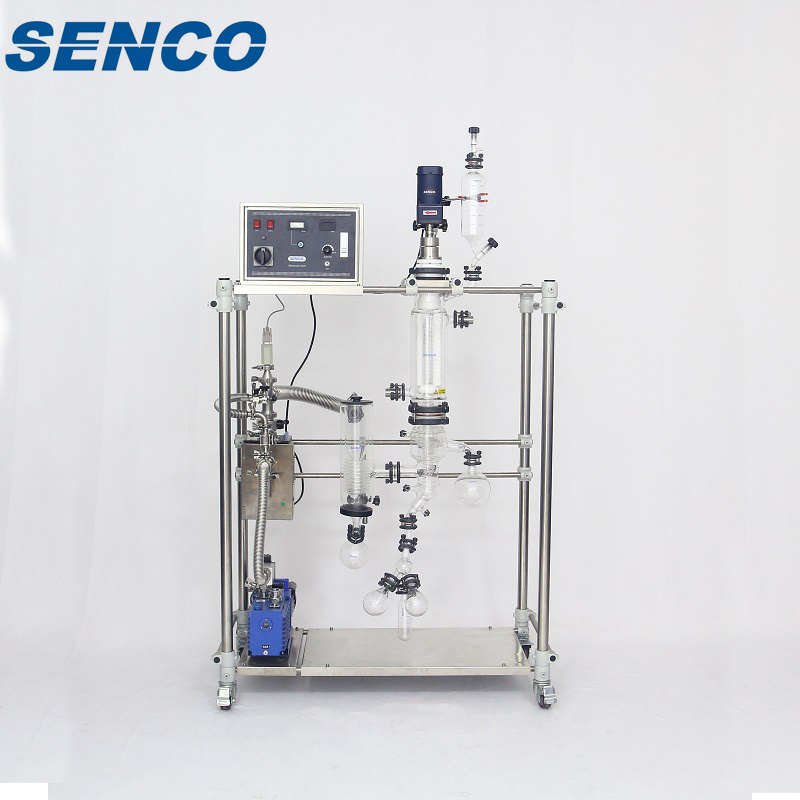

Product name:
-
short path distillation
-
Model:
-
MD800V
-
System ultimate pressure:
-
0.001mbar (0.1Pa)
-
The vacuum source:
-
Diffusion Pump Sys.
-
Condensing unit:
-
Built-in condensation, condensation area 1100cm2
-
Rotary drive unit:
-
Magnetic drive 60-480
-
Pressure indicators:
-
Full range digital display
-
Standard rack size (cm):
-
120x60x200cm
-
feed purification unit:
-
1L feeding bottle, feeding speed 10-5000ml/ h
-
power supply:
-
AC220V 1 p 50/60Hz
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SENCO
-
Voltage:
-
220V
-
Power:
-
1000W
-
Dimension(L*W*H):
-
120x60x200cm
-
Weight:
-
220 KG
-
Product name:
-
short path distillation
-
Model:
-
MD800V
-
System ultimate pressure:
-
0.001mbar (0.1Pa)
-
The vacuum source:
-
Diffusion Pump Sys.
-
Condensing unit:
-
Built-in condensation, condensation area 1100cm2
-
Rotary drive unit:
-
Magnetic drive 60-480
-
Pressure indicators:
-
Full range digital display
-
Standard rack size (cm):
-
120x60x200cm
-
feed purification unit:
-
1L feeding bottle, feeding speed 10-5000ml/ h
-
power supply:
-
AC220V 1 p 50/60Hz
Products Description
Molecular Distillation/Short Path Distillation can separate liquid-liquid mixture under temperature that is far lower than boiling point by the difference of mean free path of molecules under high vacuum condition. Such separation is difficult or unable to achieve on normal distillation equipment. Molecular Distillation is especially suitable to separate substances of high boiling point, heat sensitive and easy to be oxidized.
FEATURE
1. Molecular distillation can be done under any temperature to achieve the component separation purpose if only there is a temperature difference (70~100℃) between the heating and cooling surface.
2. It is physical separation process which protects material from being polluted or changed during separation process.
3. It does not happen in molecular distillation due to it is a free evaporation of liquid surface which is not boiled yet.
4. SENCO MD applies magnetic driven structure to guarantee the sealing performance of whole system.
