Quick Details
-
Model Number:
-
YC7114
-
Output Power:
-
0.16hp
-
Frequency:
-
50Hz/60Hz
-
Housing:
-
Cast iron or aluminum
-
Installation:
-
B3,B5,B35,B14,B34
-
Experience:
-
More than 20 years
-
Voltage:
-
220v or on request
-
Protection class:
-
IP44
-
OEM Service:
-
Accept
-
MOQ:
-
Accept Sample
-
Sample:
-
Can be customized
-
Product:
-
High performance YC series 0.1 hp electric motor
-
Color:
-
As clients required
Quick Details
-
AC Voltage:
-
208-230 / 240 V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tian yuan
-
Model Number:
-
YC7114
-
Output Power:
-
0.16hp
-
Frequency:
-
50Hz/60Hz
-
Housing:
-
Cast iron or aluminum
-
Installation:
-
B3,B5,B35,B14,B34
-
Experience:
-
More than 20 years
-
Voltage:
-
220v or on request
-
Protection class:
-
IP44
-
OEM Service:
-
Accept
-
MOQ:
-
Accept Sample
-
Sample:
-
Can be customized
-
Product:
-
High performance YC series 0.1 hp electric motor
-
Color:
-
As clients required

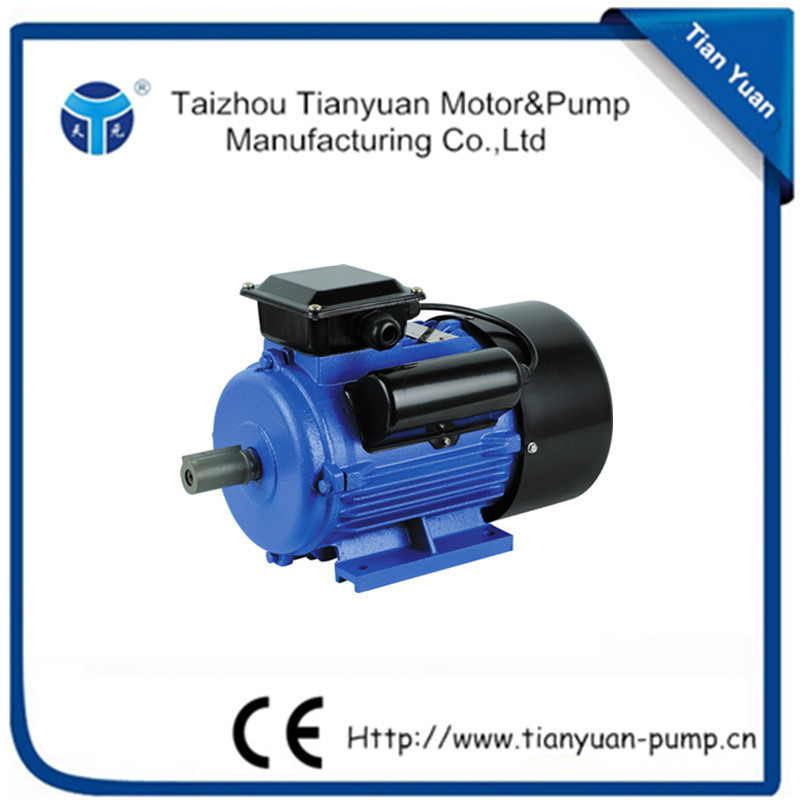

High performance YC series 0.1 hp electric motor
| 1.Product Introduction |
The type of High performance YC series 0.1 hp electric motor is totally enclosed fan-cooled.
The starting torque of motors is 2-3 times as rated torque.
High performance YC series 0.1 hp electric motor is suitable for the following machine:
1. Small machines tools
2. Compression pumps
3. Household appliance
4. The equipment which need full-load start
| 2. Features of products |
High performance YC series 0.1 hp electric motor has the following features:
1. High starting torque
2. Smooth running
3. Low temperature rise
4. Low noise
5. Greater overload performance
6. Safe and reliable operation
7. Nice appearance
| 3.Operating conditions |
Frame NO.:71-132
Ambient temperature: -15 °C~40 °C
Altitude: no higher than 1000 meters from sea level
Voltage: 220+/-5% or as required
Frequency: 50Hz/60Hz
Insulation class: B/F
Operation serives: S1
Protection class: IP44
| 4.Material of products |
| Housing | Aluminum, cast iron |
| Wire | 100% copper wire |
| End cover | Cast iron |
| Fan cover | Cast iron |
| Connection box | Plastic, cast iron |
| 5.Specifications of products |
| Model | Rated Power | Current | Speed | Efficiency | Power Factor | Starting Current |
Starting torque Rated torque |
Max torque Rated torque |
|
| HP | KW | A | R/min | % | cos Φ | A | |||
| 6.Dimensions of products |
