Screen mesh is easy to replace,only 3-5 minutes
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380 V~460 V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
150 KG
-
Name:
-
scraper miner paper pea wet rotary vibrating wire screen sieve filter
-
Material:
-
Stainless Steel
-
Layer(s):
-
1-5 Layers
-
Mesh size:
-
2~500 mesh
-
Capacity:
-
20 KG~20 T/H
-
Surface:
-
Mirror polish
-
Motor Type:
-
Vibrating motor
-
Frequency:
-
50 / 60 HZ
-
Customized:
-
Acceptable
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KARAT
-
Voltage:
-
380 V~460 V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
150 KG
-
Name:
-
scraper miner paper pea wet rotary vibrating wire screen sieve filter
-
Material:
-
Stainless Steel
-
Layer(s):
-
1-5 Layers
-
Mesh size:
-
2~500 mesh
-
Capacity:
-
20 KG~20 T/H
-
Surface:
-
Mirror polish
-
Motor Type:
-
Vibrating motor
-
Frequency:
-
50 / 60 HZ
-
Customized:
-
Acceptable
Products Description
pulper simple shaker filtration incline mud airflow slurry scraper miner paper pea wet rotary vibrating wire screen sieve filter

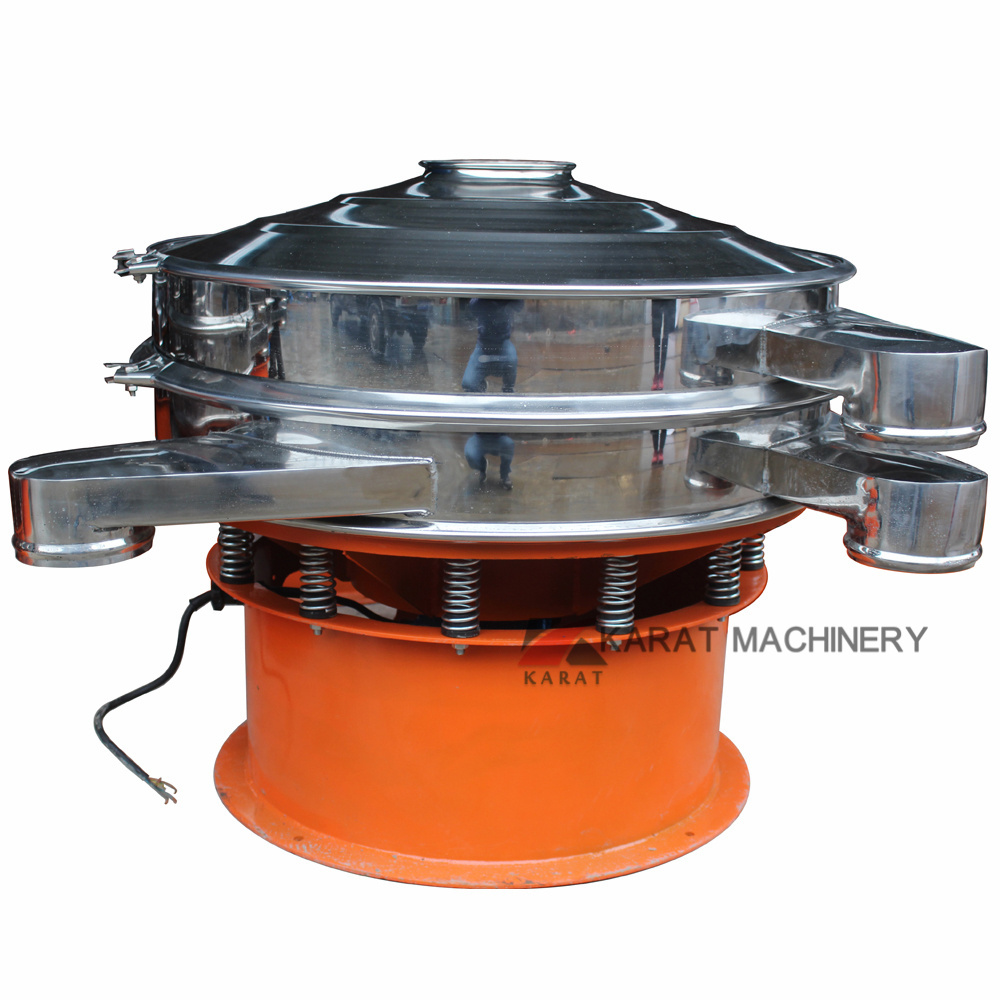

Rotary vibrating screen sieve is a high precision fine powder sieving machine. The fundamental principle of Grain seed / pine nut / chestnut circular vibrating screen sieve is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
Working Principle
Rotary vibration screen is made of an upright motor as a source of vibration, the motor is installed at the upper and lower ends of the eccentric heavy hammer, the motor rotation motion into horizontal, vertical, oblique three-dimensional motion, and then the motion to the screen surface. Adjust the phase Angle of the upper and lower ends to change the motion track of the material on the screen surface.
Vibrating screen sieve can be up to 5 layers,and the mesh size can reach 500 mesh.We will choose a suitable model according to your specific materials and application.
|
Model
|
Power（kw）
|
Diameter of Screen Surface（mm）
|
Layer
|
Mesh Size（mesh）
|
Frequency（rpm）
|
|
XZS400
|
0.15
|
340
|
1-3
|
0-500
|
1500
|
|
XZS600
|
0.37
|
540
|
|
|
|
|
XZS800
|
0.55
|
730
|
|
|
|
|
XZS1000
|
0.75
|
950
|
|
|
|
|
XZS1200
|
1.5
|
1150
|
|
|
|
|
XZS1500
|
2.0
|
1450
|
|
|
|
|
XZS1800
|
2.2
|
1730
|
|
|
|
|
XZS2000
|
2.5
|
1930
|
|
|
|
Vibrating screen sieve is made of inlet,outlet,clamp,screen frame,screen mesh,vibrating motor,spring,
support
base and so on.The below pictures will help you know more about our machine.
The way of the clearing
screen mesh is simple and efficiency,bouncing ball clearing or ultrasonic vibrating clearing device
Material outlet can be installed with valves,making the screening more thorough
Bottom with casters,easy to move
Copper wire winding,durable and long life,12 mouth warranty
400-2000mm,small size.
Fully enclosed mechanism,the dust not fly,and the liquid does not leak.Round mechanism,
no hygienic dead corners,
the outlet can be rotated
360°
Application
Vibrating screen sieve is widely used in food industry, such as: grains, beans, mining industry, such as stone, coal, minieral,sand, chemical industry, such as coating powder, calcium carbonate, etc. Main functions are removing impurity, filtering,classification of material, solid-liquid separation, screening.
