1602 LCD I2C Winstar WO1602H lcd panel 3V 5V power supply 1.91 inch COG LCD Display Module 16x2

FOB Reference Price: Get Latest Price

≥5 Pieces

US $8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Winstar

Product Name:: 1602 COG LCD Display Module 16x2

Module No:: WO1602H

Resolution:: 16x2

Module Dimension:: 62.8*23 mm

Drive Method:: 1/16 duty cycle

Interface:: I2C

Control IC:: ST7032

Display mode:: FSTN/STN

Backlight:: LED

Color:: Blue/Yellow/Gray

Quick Details

Type:: COG

Display Size:: 1.91''

Supplier Type:: Factory Manufactuer

Place of Origin:: Jiangsu, China

Brand Name:: Winstar

Product Name:: 1602 COG LCD Display Module 16x2

Module No:: WO1602H

Resolution:: 16x2

Module Dimension:: 62.8*23 mm

Drive Method:: 1/16 duty cycle

Interface:: I2C

Control IC:: ST7032

Display mode:: FSTN/STN

Backlight:: LED

Color:: Blue/Yellow/Gray

Dear customers,

For more details or more related products, pls feel free to browse our website as follow:

http://www.simair-lcd.com/

If you need any help, you may contact us at any time on the website. We are glad to serve you.

DESCRIPTION

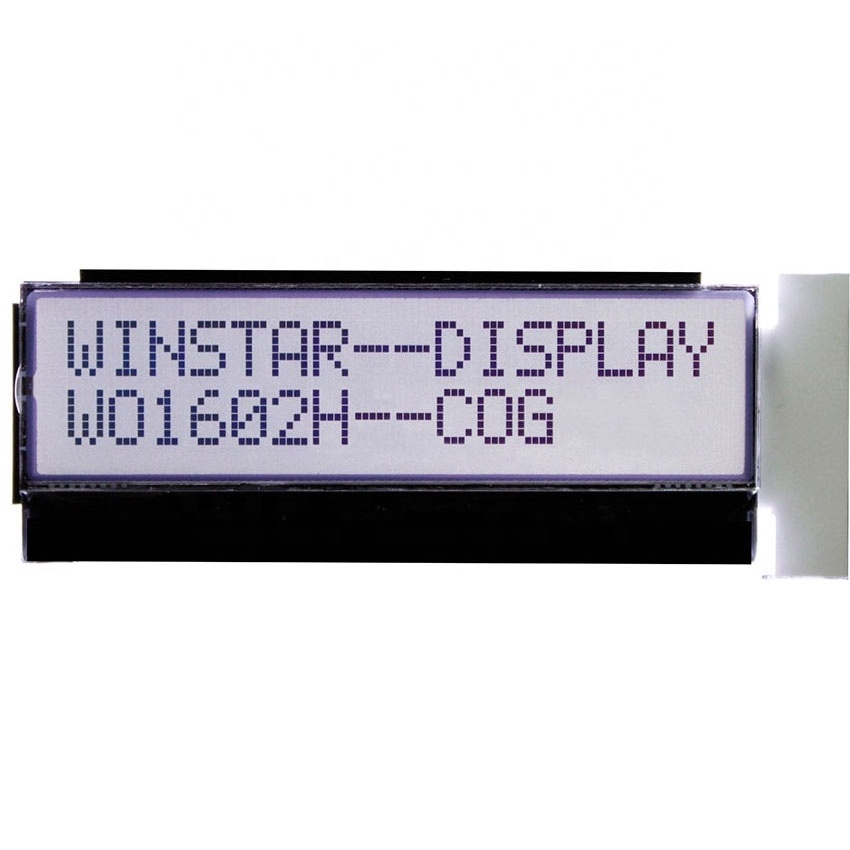

Winstar WO1602H is 16 characters x 2 lines LCD COG Display. This Character COG display is built in with ST7032I controller IC and its interface is I2C. This I2C 16x2 LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This LCD COG display is very suitable for the applications that demand more compact package displays.

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	Vout	Positive Voltage output
2	CAP1N	DC/DC voltage converter.
3	CAP1P	DC/DC voltage converter.
4	V _DD	Power supply for logic
5	V _SS	Ground
6	SDA	Serial input data
7	SCL	Serial clock input
8	RST	Controller reset signal, Active Low
