Economic Adhesive BOPP Tape Coating Machine

BOPP Tape Coating Machine

1.Application-------- suitable for the bopp adhesive tape.

1) straight-scraping transfer-printing type gluing,stablility in performance,even gluing.

2) high-speed production of 90-180M/MIN

3) lifting unwinding,double rewinding.

4) high-speed automatic cutting cloth and connecting film.

5) tension controlling by segmentation.

6) the temperature could be controlled by segmentation and adjusted according to the technical process.

7) slit nozzle blasting dry syetem for bake oven,hign in drying efficiency

2.Feature-------- BOPP gummed tape coating.

1 )wire and billet type gluing,smoothing ,gluing even,and save glue

2) epuipment stabilization and reducing energy consumption.

3) 120-220M/MIN high speed production.

4) double-position air operated unwinding and rewinding.

5) high-speed automatic cutting cloth and connecting film.

3.Technical parameters-------- Double-position air-operated unwindingand rewinding

Specification

Model	YHT-500
Oven length	6M ( a style )
Voltage	3P+1 380V/50HZ
Heating	Electric total power 16kw / Total coal heating power 2KW
MaximumMaximum diameter of discharge	600mm
Maximum rewinding diameter	250mm
Minimum slitting width	24mm
Coating width	500mm
Coating speed	20-30m/min
Motor Power	1.5kw×2
Installation dimensions	7.8×1.2×1.9m

Machine Photos:

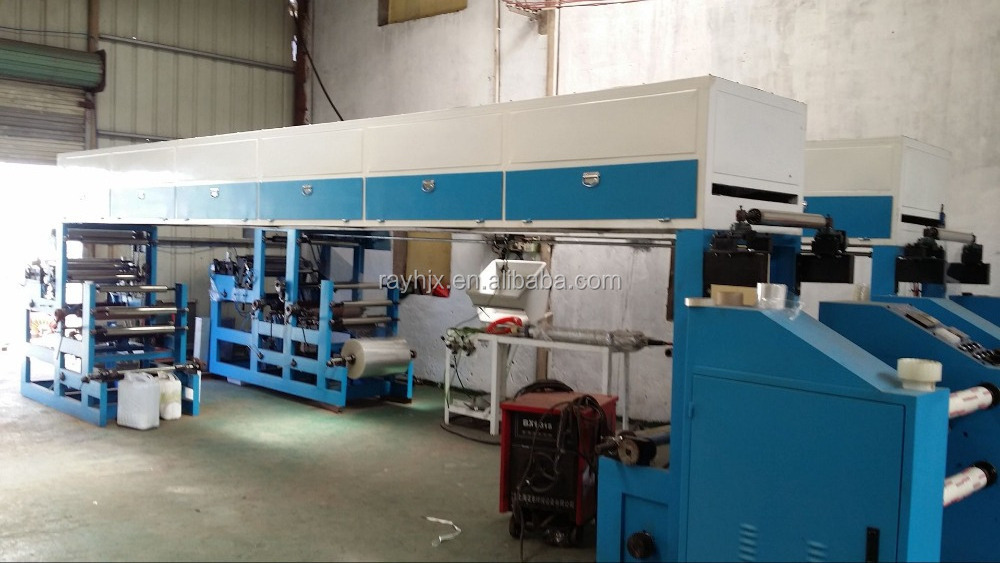

BOPP Tape Coating Machine

Slitting and Rewinding Machine

Final Products

Our Service :

1. Purchase Service

We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .

2. Shipping Service

We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.

We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.

3.Installation and Training Services

Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.

Training on our factory also be welcome.

4.After Sales Service

Our machines guarantee time is one year.

Many easy broken spare parts will be prepared in the tool box together with machines.

Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days.
