Quick Details
-
Brand Name:
-
-
-
Engine Capacity:
-
> 8L
-
Drive Wheel:
-
8*4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
-
Size:
-
9300x2300x3484 mm
-
Gross Vehicle Weight:
-
34850KG
-
Product name:
-
8X4 Dumper Tipper Truck
-
Transmission:
-
Manual Transmission
-
Driving type:
-
Long cabin one sleeper
-
Displacement:
-
9.726 L
-
Number of cylinder:
-
6
-
front axle:
-
6.5T
-
Steering system:
-
TAS85
-
Rear Axle:
-
double reduction drive axle
-
Optional:
-
hydraulic steering with power assistance
-
Types:
-
12.00R20
Quick Details
-
Condition:
-
New
-
Horsepower:
-
336hp
-
Emission Standard:
-
Euro 3
-
Brand Name:
-
-
-
Engine Capacity:
-
> 8L
-
Drive Wheel:
-
8*4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
-
Size:
-
9300x2300x3484 mm
-
Gross Vehicle Weight:
-
34850KG
-
Product name:
-
8X4 Dumper Tipper Truck
-
Transmission:
-
Manual Transmission
-
Driving type:
-
Long cabin one sleeper
-
Displacement:
-
9.726 L
-
Number of cylinder:
-
6
-
front axle:
-
6.5T
-
Steering system:
-
TAS85
-
Rear Axle:
-
double reduction drive axle
-
Optional:
-
hydraulic steering with power assistance
-
Types:
-
12.00R20

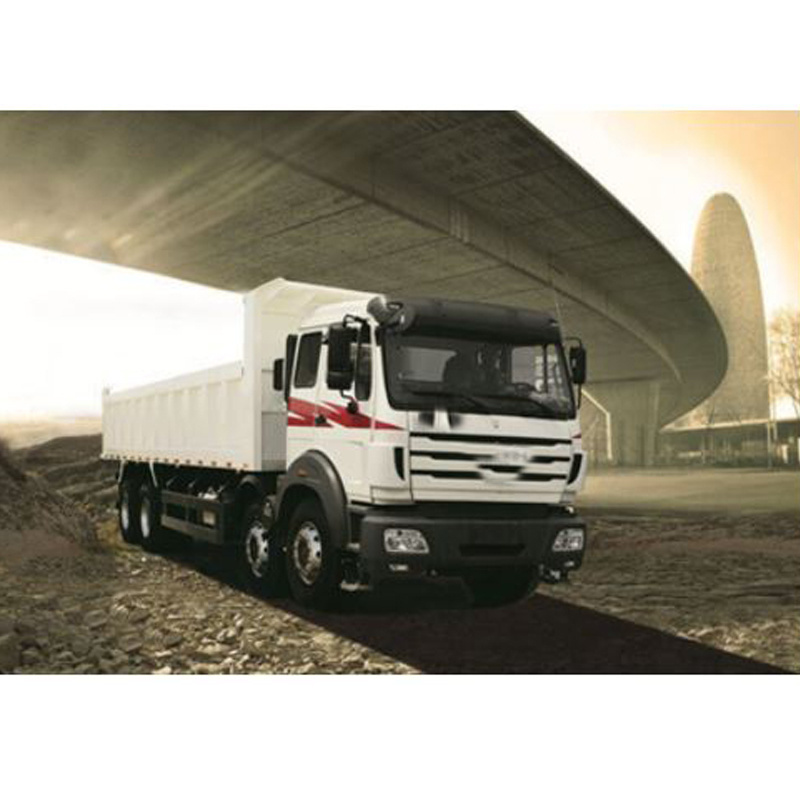

China Supplier Brand New 8*4 Lorry Truck
8X4 8*4 Hydraulic Mini Dumper With Rotating Bucket Side Dump Bucket
|
8X4 Lorry Truck |
|
|
Model |
ND1255B50J |
|
Driver's cab |
Long cabin, one sleeper |
|
Engine |
Maker: North |
|
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling |
|
|
Engine model: WP10.336NE31 EURO II/EUROIII emission standard |
|
|
Maximum output:336hp@2200rpm |
|
|
Number of cylinder:6 |
|
|
Displacement: 9.726L |
|
|
Clutch |
Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance |
|
Transmission |
Fuller 9JS150A transmission. |
|
Front Axle |
, drum brake |
|
Rear Axle |
double reduction drive axle, ratio=5.2 |
|
Steering |
TAS85 |
|
Wheel & Types |
Rims:8.5-20 |
|
Tyre:12.00R20 tube |
|
|
Optional: 12R22.5//315/80R22.5 |
|
|
Radial tire is optional |
|
|
Electrics |
Operating voltage: 24V,negative grounded |
|
Dimensions in mm |
Wheel base : 1500+4750+1450 |
|
Overall size: 10576x2500x3385 |
|
|
Weight in kg |
Kerb. mass: 11300 kg |
|
Total mass: 25000kg |
|
|
Performance |
Maximum driving speed(km/h) 85 |
|
Body in mm |
8000x2300x800 |
|
The manufacture reserves the right of technical alteration/change for better improvement prior notice |
|
