Quick Details
-
tempurature:
-
280℃
-
Length:
-
25m/50m
-
Function:
-
Isolate vibration and noises
-
Material:
-
Galvanized Steel+Silicone Fabric
-
Product name:
-

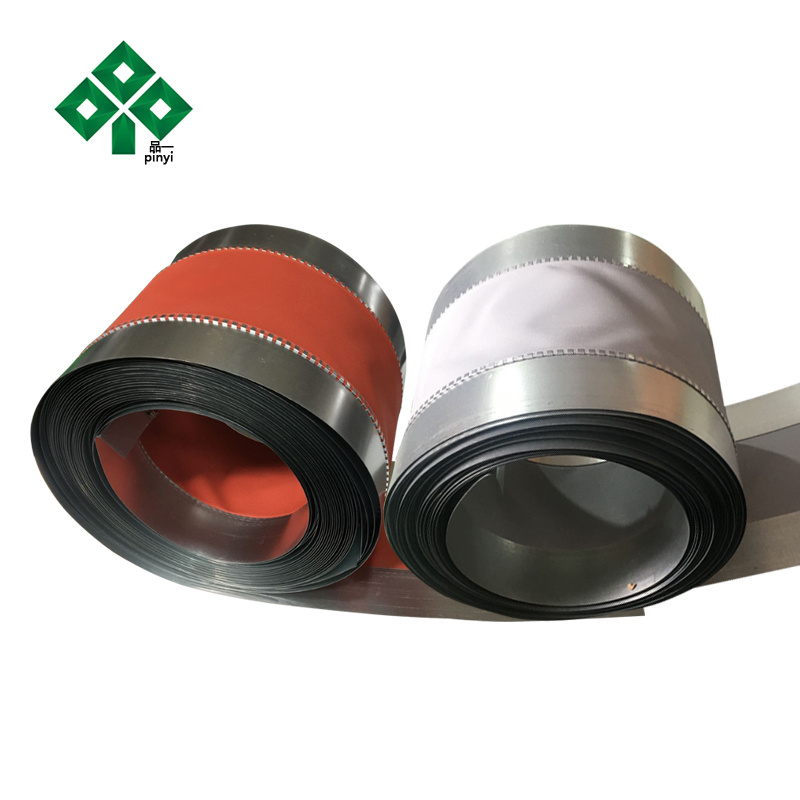

Flexible Duct Connector
-
Package:
-
Carton+Pallet
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Pinyi
-
Thickness:
-
0.8mm
-
tempurature:
-
280℃
-
Length:
-
25m/50m
-
Function:
-
Isolate vibration and noises
-
Material:
-
Galvanized Steel+Silicone Fabric
-
Product name:
-
Flexible Duct Connector
-
Package:
-
Carton+Pallet
Product Overviews
Product Description
All mechanical equipment like Air Handling Units, Fan Coil
Units and Ventilation Fans generate noise and vibrations
when used. To eliminate the noise and vibrations from
transmitting through the air ducts,
it is necessary to install an airtight flexible joint between
the outlet of the equipment, and the inlet of the ducts.
The fabric section of CANVAS DUCT CONNECTOR is vinyl
coated woven nylon/polyester blend material and is
connected to steel with a grip lock seam.
| Sheet Metal Width | Fireproof Fabric Width | Sheet Metal Thickness | Fireproof Fabric Thickness | Temperature Resistance |
| mm | mm | mm | mm | ℃ |
| 35*2 | 60 | 0.4 | 0.4/1.0 | 70 / 200 /280 |
| 45*2 | 60 | 0.4 | 0.4/1.0 | 70 / 200 / 280 |
| 45*2 | 70 | 0.4 | 0.4/1.0 | 70 / 200 / 280 |
| 45*2 | 75 | 0.4 | 0.4/1.0 | 70 / 200 / 280 |
| 70*2 | 100 | 0.4 | 0.4/1.0 | 70 / 200 / 280 |
