Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Chenchai
-
Model Number:
-
CC-Y22, YCDV254FHZ-35
-
Weight:
-
690KG
-
Diesel engine power:
-
24KW/30KVA
-
Alternator:
-
Stamford/Marathon/Leroy somer/Mecc-alte/ENGGA
-
Control panel:
-
Deepsea / Harsen / Smartgen
-
Fuel tank:
-
8 hours or customized
-
Time of delivery:
-
10 working days
-
Spare parts:
-
all available
-
wrapper:
-
Packing in wooden cases without fumigation
-
Options:
-
Automatic Transfer Switch
-
Color:
-
Customers' Requirement
Quick Details
-
Rated Voltage:
-
230V, 240V, 380v, 400V, 480V, 120/208V, 346/600V
-
Rated Current:
-
28A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Chenchai
-
Model Number:
-
CC-Y22, YCDV254FHZ-35
-
Weight:
-
690KG
-
Diesel engine power:
-
24KW/30KVA
-
Alternator:
-
Stamford/Marathon/Leroy somer/Mecc-alte/ENGGA
-
Control panel:
-
Deepsea / Harsen / Smartgen
-
Fuel tank:
-
8 hours or customized
-
Time of delivery:
-
10 working days
-
Spare parts:
-
all available
-
wrapper:
-
Packing in wooden cases without fumigation
-
Options:
-
Automatic Transfer Switch
-
Color:
-
Customers' Requirement
|

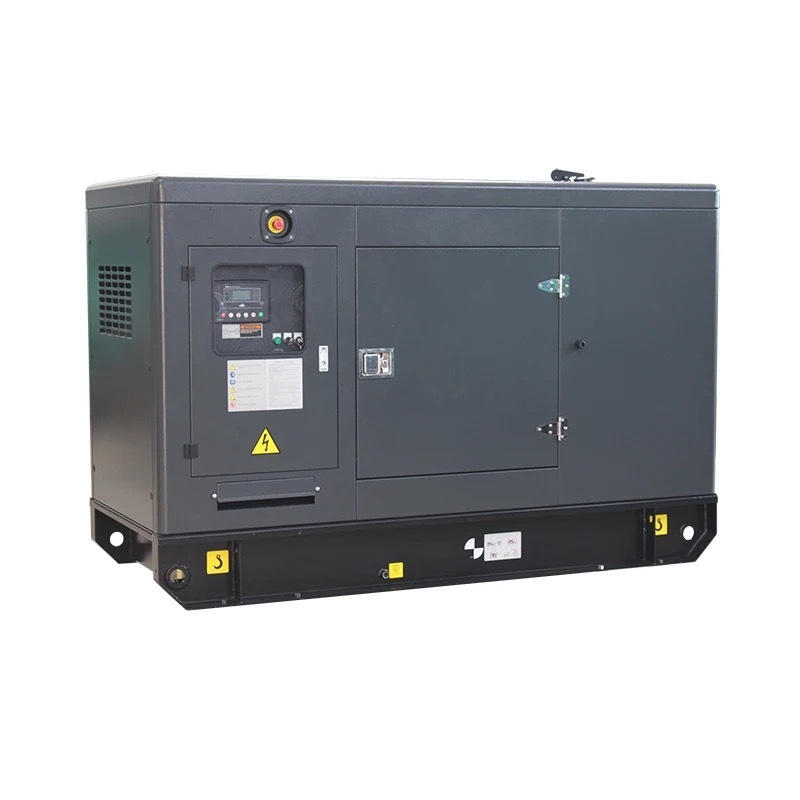

Diesel Generator
|
|
|
|
|
Model:
|
CC-Y22
|
|
|
|
Prime Power(KW/KVA):
|
20/25
|
|
|
|
Rated voltage：
|
220/380V，230/400V，120/208V，346/600V
|
|
|
|
Weight
|
690kg
|
|
|
|
Frequency:
|
50/60HZ
|
|
|
|
Rated speed：
|
1500/1800rpm/minute
|
|
|
|
Phase:
|
3 Phase
|
|
|
|
Rated current
|
36A
|
|
|
|
Size of open type
|
2930*1120*1600
|
|
|
|
Engine
|
|
|
|
|
Manufacturer:
|
Guangxi Yuchai Ship Electric Power Co., Ltd
|
|
|
|
Model:
|
YCDV254FHZ-35
|
|
|
|
Cylinder Arrangement:
|
Straight 4 cylinder
|
|
|
|
Displacement（L):
|
4.21
|
|
|
|
Bore and Stroke（mm）:
|
108×115
|
|
|
|
Rated fuel consumption:
|
202（g/kw.h）
|
|
|
|
Governor Type:
|
lectronic
|
|
|
|
Prime Power(KW/KVA):
|
24/30
|
|
|
|
Total Coolant Capacity(L):
|
19
|
|
|
|
Alternator
|
|
|
|
|
Manufacturer:
|
Stanford、Marathon、ENGGA、Leroy Somer
|
|
|
|
Model:
|
CC22-14
|
|
|
|
Protection Grade:
|
IP23
|
|
|
|
Power Factor:
|
0.8
|
|
|
|
Winding:
|
100% Copper Wire
|
|
|
|
Connecting Type:
|
3-phase&4 line
|
|
|
|
Voltage Regulation:
|
≥±5%
|
|
|
|
controller
|
|
|
|
|
Manufacturer:
|
DEEP SEA ELECTRONICS PLC (UK)
|
|
|
|
Model:
|
DSE6120
|
|
|
|
Type:
|
AMF Automatic Operation
|
|
|
|
|
|
|
|
1.Why is it difhcult to start the unit when the
temperature is low?
Poor diesel atomization effect/high oil viscosity/poor
battery discharge effect.
2.What measurement data can be seen on the
instrument control cabinet that is standard for electric
speed regulation?
Frequency/voltage/current/water temperature/speed.
3.Production cycle of a single equipment
15-20 days
4.What is the difference between dual power supply CB
level and PC level?
CB level -2 independent switches; PC level -1 switch
5.How to solve equipment malfunctions?
(1)Engineer telephone and video guidance
(2)Send overseas engineers to the site
