Quick Details
Quick Details
-
Weight (KG):
-
350
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soltek

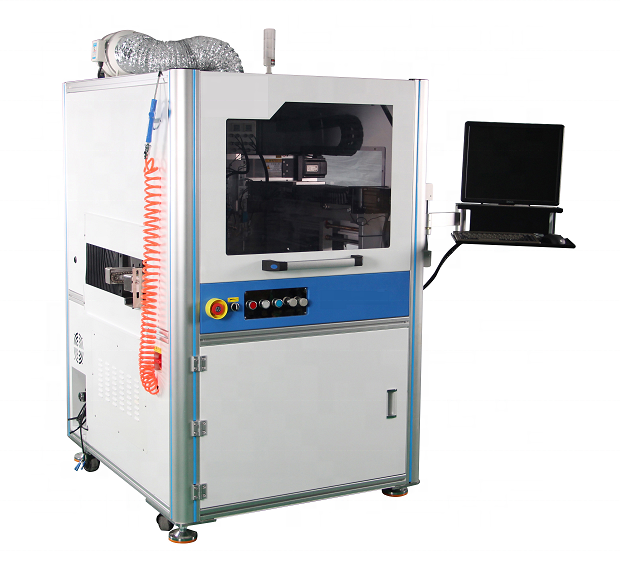

The machine feature:
1-Motion axis: X Y Z U
X Y Z axis is movement axis
U-axis is a rotation axis that can rotate ±180 degrees
2-Positioning accuracy:±0.02mm
Repeat accuracy:±0.02mm
Max moving speed:1000mm/s
3-Rail height:900±20mm
Rail top clearance height for coating object:80mm
Rail low clearance height for coating object:80mm
4-Coating area: L460*W460mm
Equipped with a complete set of spray valves
5-The machine with exhaust system
6-Double-manufactured working mode (dual face coating)
It can receive the PCB returned by the downstream machine( FLIP ) for back coating.
7-Media supply
Smema connect
Compressed air:0.4-0.6Mpa
Electrical power:3KW
8-Machine size and weight
L1100*W1110*H1800mm
800kg
A complete solution for coating line
Loader ----> Coating<---->FLIP ---->Curing Oven---->Unloader----Return
