Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
2000mm*6500mm
-
Cutting Thickness:
-
1-20mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
3800 KG
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
1-10000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
2000mm*6500mm
-
Cutting Thickness:
-
1-20mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
3800 KG
Product Description

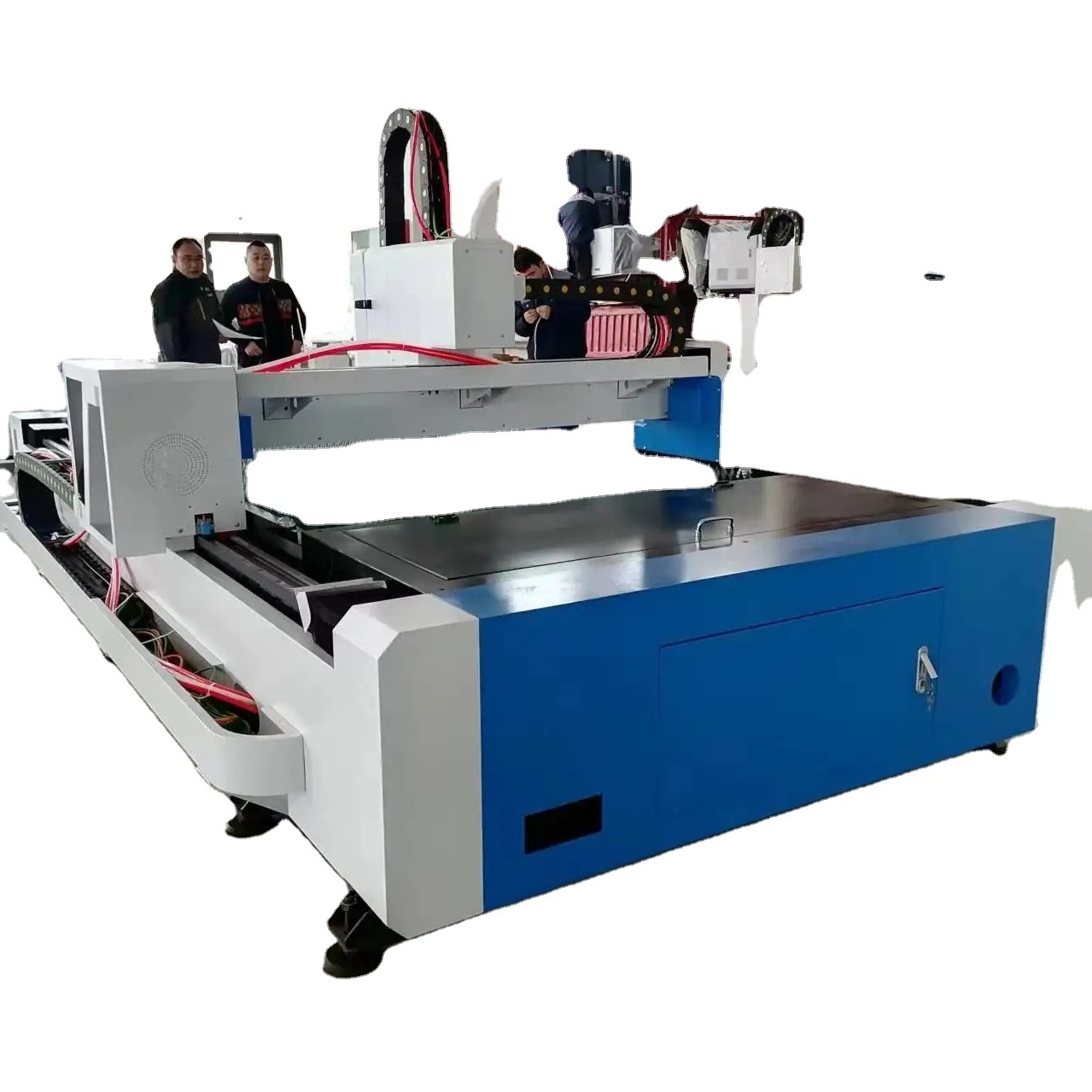

3015 1530 metal Cnc fiber laser cutting machine
Jinglaser fiber laser
1000W 1500W 2000W 3000W 4000W 6000W 8000W 12000W
Advantages:
1. Heavy duty;High strength steel welding structure;Beam cast aluminum
2. Heat treating for 3-4 days,and eliminate stress by vibration,to ensure the machine out of shape change after long time use
3. Segmental dust extraction system-new tech to ensure the best effect
4. True branded components,also can do sample cuttning for you
5.All accessories are of the best quality imported or made in China, including lasers such as raycus JPT Max reci, servo motor
systems such as Fuji, Yaskawa leisai, cypnaut, Weihong, au3tec and other systems
Advantages:
1. Heavy duty;High strength steel welding structure;Beam cast aluminum
2. Heat treating for 3-4 days,and eliminate stress by vibration,to ensure the machine out of shape change after long time use
3. Segmental dust extraction system-new tech to ensure the best effect
4. True branded components,also can do sample cuttning for you
5.All accessories are of the best quality imported or made in China, including lasers such as raycus JPT Max reci, servo motor
systems such as Fuji, Yaskawa leisai, cypnaut, Weihong, au3tec and other systems
Technical Parameters
|
Model
|
1530 Fiber Laser Cutting Machine
|
|
Working Size
|
1500*3000mm
|
|
Laser Power
|
1/1.5/2/3/4/6/8/12KW
|
|
Laser Wavelength
|
1080nm
|
|
Laser Beam quality
|
<0.373mrad
|
|
Working Life of Fiber Source
|
More than 10,0000 hours
|
|
Position Type
|
Red Dot Pointer
|
|
Cutting Thickness
|
0.5-10mm Within The Range Standard Precision
|
|
Max. Idle Running Speed
|
80-110M/min
|
|
Max acceleration
|
1G
|
|
Reorientation Accuracy
|
Within ±0.01mm
|
|
Lubrication System
|
Electrical Motored
|
|
Cooling mode
|
Water cooling and protection system
|
|
Machine power
|
9.3KW / 13KW / 18.2KW / 22.9KW
|
|
Auxiliary Gas for Cutting
|
Oxygen, Nitrogen, Compressed Air
|
|
Compatible Software
|
AutoCAD,CorelDraw, etc.
|
|
Handle Control
|
Wireless Control Handle
|
|
Graphic Format
|
DXF/PLT/AI/LXD/GBX/NC code
|
|
Power Supply Voltage
|
220V 1Ph or 380V 3Ph, 50/60Hz
|
|
Warranty
|
2 Years
|
