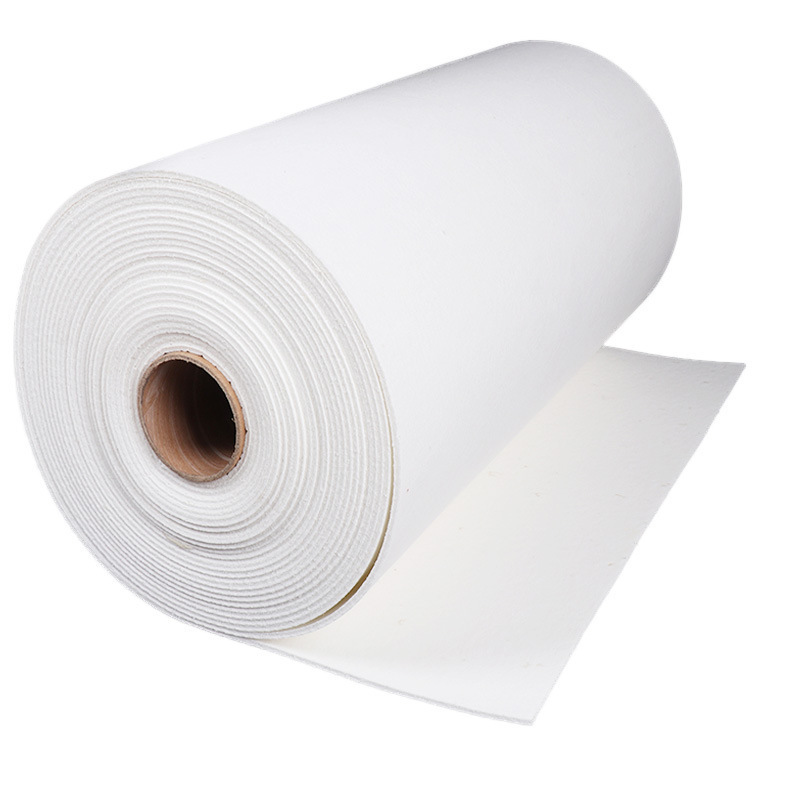

1600 ceramic fiber insulation paper kaowool ceramic fiber sealing gasket 1mm 3mm 5mm thick ceramic fiber paper

1600 ceramic fiber insulation paper kaowool ceramic fiber sealing gasket 1mm 3mm 5mm thick ceramic fiber paper

FOB Reference Price: Get Latest Price

≥10 Rolls

US $5

≥50 Rolls

US $3

≥100 Rolls

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Fiber Diameter:: 3-5 um

Thermal Conductivity:: 0.11w/m.k(1000C)

Density (kg/m³ ):: 160

Place of Origin:: Henan, China

Width:: 610,1220 mm

Length:: 10,000-60,000 mm, Customer Requests

Shrinkage (1800℉, 3h):: 3.0(24hours)

Brand Name:: RongSheng

Model Number:: RongSheng-CFP-001

Product name:: Ceramic Fiber Paper

Thickness:: 0.5-13mm or Customer Requests

Keywords:: ceramic fiber insulation paper

Advantage:: Low thermal conductivity

Package:: Plastic Bag Inside, Braided Bag Outside

Certifiacte:: ISO9001, CE, etc

Quick Details

Chemical Composition:: Al2O3+SiO2, Al2O3,Sio2

Ultimate Strength (≥ MPa):: 0.3, 0.3

Working Temperature:: 1000-1300

Fiber Diameter:: 3-5 um

Thermal Conductivity:: 0.11w/m.k(1000C)

Density (kg/m³ ):: 160

Place of Origin:: Henan, China

Width:: 610,1220 mm

Length:: 10,000-60,000 mm, Customer Requests

Shrinkage (1800℉, 3h):: 3.0(24hours)

Brand Name:: RongSheng

Model Number:: RongSheng-CFP-001

Product name:: Ceramic Fiber Paper

Thickness:: 0.5-13mm or Customer Requests

Keywords:: ceramic fiber insulation paper

Advantage:: Low thermal conductivity

Package:: Plastic Bag Inside, Braided Bag Outside

Certifiacte:: ISO9001, CE, etc

Product Description

Descriptions Of Ceramic Fiber Paper

thermal resistance ceramic fiber paper is manufactured from high-grade ceramic fiber with low slag ball content, and formed into excellent flexible sheet through unique beating, deslagging, slurry-compounding, long net forming, vacuum water removal, drying, cutting and rolling processes.It is featured with high temperature resistance and heat insulation and high anti-melt capability,very low thermal conductivity, chemical corrosion resistance and thermal shock stability. So the paper can be widely used in building, glass industry for teeming pads separation. It provides maximum heat resistance and thermal insulation in limited space.

Characteristics Of Ceramic Fiber Paper

1.Light weight and flexible 2.Low thermal conductivity and low heat storage 3.No asbestos and anticorrosion 4.Excellent corrosion resistance 5.Good electric insulation 6.Low slag ball content and no layer

Specification

Type			Standard ceramic fiber paper	High pure ceramic fiber paper	High Aluminium ceramic fiber paper	Zirconium ceramic fiber paper
Chemical analysis (%)	AL2O3	43	47	55	38
		SiO2	53	51	44	44
		Fe2O3+Ti2O3	≤1.2	≤0.3	≤0.3	≤0.2
		CaO+MgO	≤0.3	≤0.3	≤0.3	≤0.2
		NaO+K2O	≤0.5	≤0.3	≤0.3	≤0.2
Crganic Content (%)			5%	≤5%	≤5%	≤5%
Density(kg/m3)			180-220	180-220	180-220	180-220
Work Temperature			1050	1150	1250	1350
Thickness	0.5-12mm
size (mm)	40000x1220x1;40000x610x1; 30000x1220x2; 30000x610x2;20000x1220x3;20000x610x3;15000x610x4; 10000x610x5
