Quick Details
-
Length:
-
1000m/reel,as your requirements.
-
Application:
-
widely, Rope,lifting,drawing,bunding,elevator,shiping,various kinds of usage.
-
C Content (%):
-
standard
-
Si Content (%):
-
standard
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
longteng stainless steel wie rope
-
Model Number:
-
LT-wire rope.34, 6x19,7x19,6x24 ,6x36 ,etc.
-
Tensile strength:
-
normal 1270Mpa -- 1570Mpa,special can customized.
-
Material:
-
stainless steel wire
-
Packing:
-
100m-2000m/reel,as your requirements.
-
Core:
-
steel core,fiber core
-
Certification:
-
BV
Quick Details
-
Grade:
-
300 Series
-
Tolerance:
-
±1%
-
Steel Grade:
-
304, 304L, 316
-
Length:
-
1000m/reel,as your requirements.
-
Application:
-
widely, Rope,lifting,drawing,bunding,elevator,shiping,various kinds of usage.
-
C Content (%):
-
standard
-
Si Content (%):
-
standard
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
longteng stainless steel wie rope
-
Model Number:
-
LT-wire rope.34, 6x19,7x19,6x24 ,6x36 ,etc.
-
Tensile strength:
-
normal 1270Mpa -- 1570Mpa,special can customized.
-
Material:
-
stainless steel wire
-
Packing:
-
100m-2000m/reel,as your requirements.
-
Core:
-
steel core,fiber core
-
Certification:
-
BV

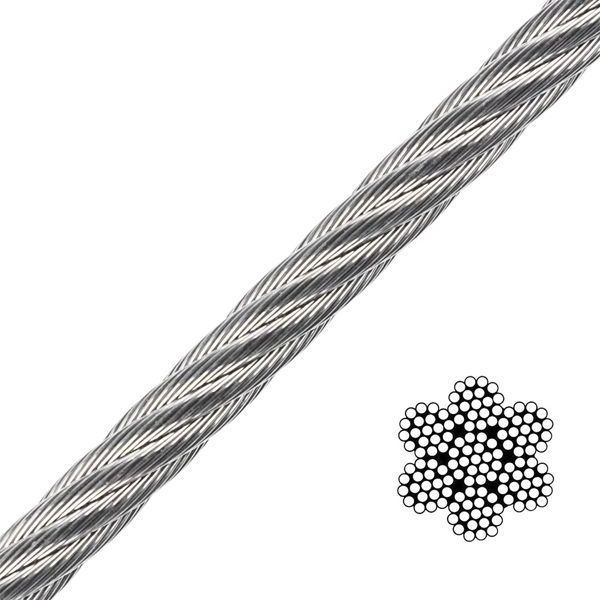

Anti corrosion Marine 304 316 316L stainless steel wire cable 7x19
Product display ----------------------------------------------------------------------------------------------------------------------------------
Product description -------------------------------------------------------------------------------------
Anping steel wire rope price,used steel wire rope,steel wire cable
1) high-grade carbon steel material warranted
2) advanced production devices and experienced worker
3) it can be used for crane lifting, fishing industry, protection devices, decorations, etc.
4) constructions can be 1*7, 1*19, 6*12, 6*19, 6*36, 6*24, etc.
5) standard : ISO, BS, DIN, JIS, ASTIM, etc .
6) diameter from 2mm------60mm
7) Min tensile strength : 1770mpa ,1570mpa 1670mpa ,1860mpa , 1960mpa
8) packing: wooden reel, wooden pallet, kraft paper, coil or acustomered.
2. steel wire cable types
1X7,1X19,6x7,7X7,6x19,7X19,6X37,7X37,8x19,19X7 etc. Many constructions to meet your
requirements.
3.steel wire cable specification
|
Rope Dia
|
Approx Weight
|
Tensile strength Mpa |
|||
|
1570 |
1670 |
1770 |
1870 |
||
|
Minimum Breaking load(T) KN |
|||||
|
4.8 |
12.03 |
1960 |
2180 |
2390 |
2600 |
|
5.1 |
13.58 |
2220 |
2460 |
2690 |
2930 |
|
5.4 |
15.22 |
2490 |
2750 |
3020 |
3290 |
|
6.0 |
18.79 |
3070 |
3400 |
3730 |
4060 |
|
6.6 |
22.74 |
3720 |
4120 |
4520 |
4920 |
|
7.2 |
27.06 |
4430 |
4900 |
5380 |
5850 |
|
7.8 |
31.76 |
5200 |
5750 |
6310 |
6870 |
|
8.4 |
36.83 |
6030 |
6670 |
7320 |
7960 |
|
9.0 |
42.29 |
6920 |
7660 |
8400 |
9150 |
|
9.6 |
48.11 |
7870 |
8720 |
9560 |
10400 |
|
10.5 |
57.55 |
9420 |
10400 |
11400 |
12420 |
|
11.5 |
67.84 |
11100 |
12250 |
13450 |
14650 |
|
12.0 |
75.17 |
12300 |
13600 |
14900 |
16200 |
4. steel wire cable application
It usually used for the messenger wire, the guy wire, serve as the structure of cable in the ground wire of overhead transmission, roads on both sides of the blocked cable or building structure. and bridge construction, water conservancy, energy and geotechnical engineering .
Product details -----------------------------------------------------------------------------
5. steel wire cable package
In roll or by spool , other package can customized
