Ammonia Gas Detector for Poultry Continuously Monitoring 4-20mA RS485 With Built in Pump

Ammonia Gas Detector for Poultry Continuously Monitoring 4-20mA RS485 With Built in Pump

FOB Reference Price: Get Latest Price

≥1 Pieces

US $499

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Safegas

Model Number:: YT-95H

Product:: Ammonia Gas Detector for Poultry

Sensor type:: Eletectrochemistry

Measure range:: 0-50, 0-100, 0-500, 0-1000, 0-2000, 0-5000ppm

Resolution:: 0.01ppm, 0.1ppm, 1ppm

Install Method:: Wall-mounted, piping type, flow-type

Power:: 12-36Vdc

Display:: 2.4-inch color LCD display

Sampling method:: Built in pump

Quick Details

Type:: Ammonia Gas Detector

Warranty:: 1 year

Place of Origin:: Guangdong, China

Brand Name:: Safegas

Model Number:: YT-95H

Product:: Ammonia Gas Detector for Poultry

Sensor type:: Eletectrochemistry

Measure range:: 0-50, 0-100, 0-500, 0-1000, 0-2000, 0-5000ppm

Resolution:: 0.01ppm, 0.1ppm, 1ppm

Install Method:: Wall-mounted, piping type, flow-type

Power:: 12-36Vdc

Display:: 2.4-inch color LCD display

Sampling method:: Built in pump

Ammonia Gas Detector for Poultry Continuously Monitoring 4-20mA RS485 With Built in Pump

Product overview

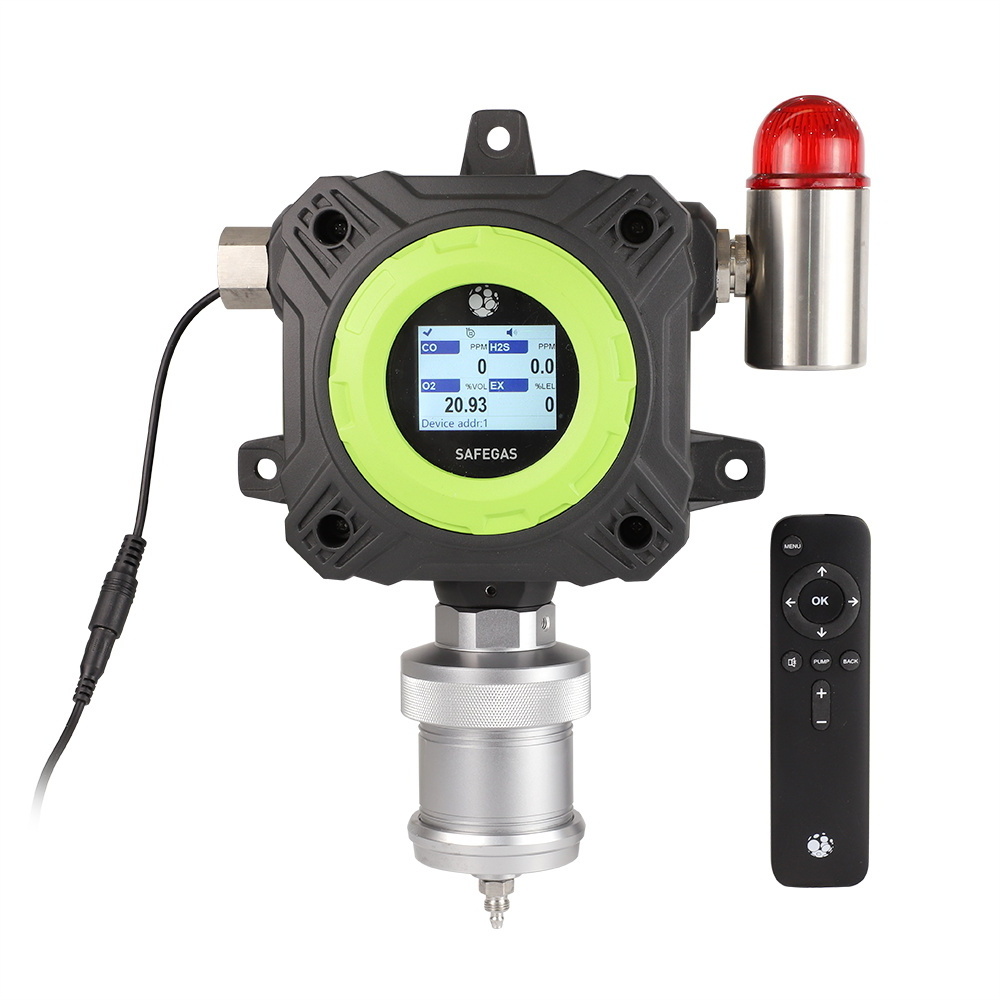

YT-95H-B series is a built-in pump-suction multi gas detector, which can detect 1-6 kinds of gases at the same time, continuously monitor the concentration of various gases online for 24 hours.Use a 2.4-inch high-definition color screen to display the on-site concentration in real time, and output 4-20mA, RS485 Standard signal, transmit data remotely. YT-95H-B series is with advanced circuit design, mature kernel algorithm processing, obtained a number of software work patents and appearance patents.YT-95H-B series can detect gas concentration in pipelines, confined spaces,and atmospheric environments, and can also detect gas leakage.The instrument has a built-in constant flow and large suction pump,which is accurate in detection, and has a faster and more sensitive response than diffusion models.When the target detected gas is lighter than air,no need to install at high place, which can get the detection results quickly and safely.

Product Advantages

With internal suction pump, fast response

With a built-in constant flow and large suction pump, which is accurate in detection, and has a faster and more sensitive response than diffusion models.

Can detect multiple gases, multiple numerical display Up to 6 kinds of gases can be detected at the same time. In complex and multi-gas environments, multiple installations can be reduced, saving time and effort. 2.4-inch industrial-grade high-definition color screen with a resolution of 320*240 and a wide viewing angle of 120 degrees. Supports ppm, mg/m3, μmol/mol display units. Units can be switched arbitrarily, and the concentration value is automatically converted by the device.

Can support wireless transmission (optional)

With optional wireless module, data can be uploaded to the cloud platform, environmental protection bureau or other platforms, providing SMS reminder function, the transmission signal is not limited by distance, and can be viewed in real time on mobile phones and computers.

With strong anti-interference, data is reliable Can resist strong magnetic interference. Data is guaranteed to be stable and reliable in areas with strong magnetic products or densely populated areas such as tunnels, mines and confined spaces.

Powerful function, multiple transmission signals and output With full software automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable. Standard 4-20mA current signal, RS485 digital signal, 1 set of relay signal output, optional 2 sets of relay signal. Standard infrared remote control, which can remotely control the detector and modify the detector settings. With sound and light alarm function, there is sound and light alarm when reaching the alarm point. For the harsh environment with high temperature, high humidity and high dust, a pretreatment system can be selected to cool down, dehumidify and remove dust to protect the service life of the detector.

Accessories & Configuration list

Standard accessories

1 piece of gas detector

Infrared ray controller

Instruction manual Qualification certificate

Warranty card

Optional accessories

Dry filter device High temperature probe Pretreatment system Control panel Power Adapter Switching power supply, etc.

Technical Specifications

Detected gas:	Ammonia and other toxic and harmful gases
Detection principle:	Electrochemical principle (depending on the specific gas measured and the selected sensor)
Measure range:	0-50ppm, 0-100ppm, 0-500pm, 0-1000ppm, 0-2000ppm, 0-5000ppm (depending on the specific gas measured and the selected sensor may be)
Resolution:	0.001ppm, 0.01ppm, 0.1ppm, 1ppm
Accuracy:	≤±3%F.S. (higher precision can be customized)
Response time:	≤30 seconds (T90)
Pump flow rate:	0.35-0.5 L/Min
Display:	2.4-inch color display, resolution 320*240
Display content:	Gas molecular formula, concentration, unit, pump status, etc
Concentration unit:	ppm, mg/m3, μmol/mol, etc. can be switched and displayed with one key, and the concentration value is automatically converted by the system.
Alarm mode:	Buzzer, alarm status prompt on the display screen, high and low alarm values can be set by customer.
Signal output:	4-20mA, RS485, 1 set of relay output; 1-5VDC(optional), 2 sets of relay output(optional)
Communication and data download:	With PC software, history data can be downloaded, stored, printed, and analyzed in computer (optional)
Wireless output(optional):	Optional wireless module, upload data to cloud platform or environmental protection bureau, transmission signal is not limited by distance; SMS reminder function (optional)
Network frequency:	2.4G high frequency
Installation method:	Wall-mounted, pipeline, flow-through (optional)
Power supply:	12-24VDC
Language:	Chinese/ English (More languages can be customized)
Humidity:	0~95%RH (non-condensing) (if the humidity is too high, a filter device can be selected)
Temperature:	-20℃~+50℃ (high temperature probe can be selected if the temperature is too high)
Explosion proof grade:	Ex d IIC T6 Gb
Protection Level:	IP65
Weight:	3.4kg (3.8kg with alarm light)
