Quick Details
-
Brand Name:
-
KEXINT
-
Use:
-
FTTH
-
Warranty Time:
-
2 years
-
Dimensions:
-
63 x 76 x 63mm
-
Weight:
-
430g
-
Outercoat diameter:
-
125um
-
Cleave ribbon Fiber Length:
-
10-16mm
-
Bare fiber diameter:
-
0.25mm~0.9mm
-
cleave length for single fiber:
-
9-16mm
-
Cleaved angle:
-
≤0.5°
-
blade life:
-
36,000 cleaves
-
Operating temperature:
-
-40℃~85℃
-
Certification:
-
CE/ROHS/ISO9001
Quick Details
-
Type:
-
fiber optic cleaver cutter
-
Model Number:
-
FC 6S
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KEXINT
-
Use:
-
FTTH
-
Warranty Time:
-
2 years
-
Dimensions:
-
63 x 76 x 63mm
-
Weight:
-
430g
-
Outercoat diameter:
-
125um
-
Cleave ribbon Fiber Length:
-
10-16mm
-
Bare fiber diameter:
-
0.25mm~0.9mm
-
cleave length for single fiber:
-
9-16mm
-
Cleaved angle:
-
≤0.5°
-
blade life:
-
36,000 cleaves
-
Operating temperature:
-
-40℃~85℃
-
Certification:
-
CE/ROHS/ISO9001
Products Description

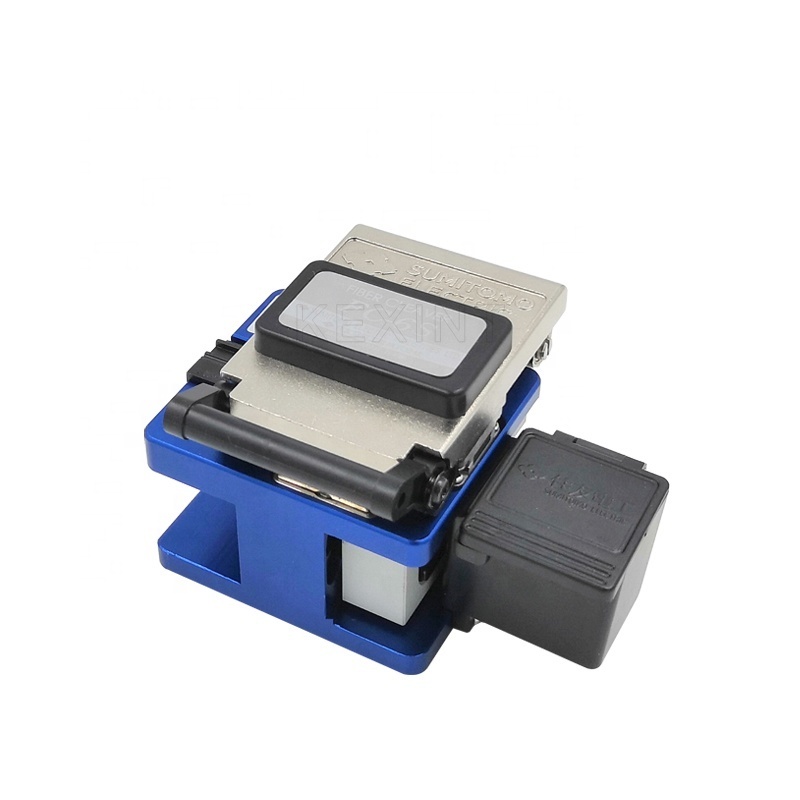

This high precision cleaver is designed for field use alongside the splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.
Features：
1. Used for Single Fiber Cleaving
2. Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
3. Prevents Double Scoring of the Fibers
4. Has Superior Blade Height and Rotational Adjustment
5. Precision Blade features 3-edges 1,000 fibers 12 blade positions with 2,000 cleavers per position
6. Can Be Operated With Minimal Steps
2. Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
3. Prevents Double Scoring of the Fibers
4. Has Superior Blade Height and Rotational Adjustment
5. Precision Blade features 3-edges 1,000 fibers 12 blade positions with 2,000 cleavers per position
6. Can Be Operated With Minimal Steps
Descriptions:
1.Tungsten steel blade manually retnrued to the knife for smooth cutting.
2.ABS material, precision injection molding,lighter in the case of product stability and reliability.
3.Easier to use integrated stripping and cutting bare fibers.
4.Suitable for cold-connected fiber,fast repair fiber network.
specification：
|
Bare fiber diameter
|
0.25mm~0.9mm
|
|
Outercoat diameter
|
125µm
|
|
Fiber type
|
Single tube fiber and Ribbon fiber(exchangeable)
|
|
Cleaved length
|
9~16mm(φ0.25) 10~16(φ0.9)
|
|
Cleaved angle
|
≤0.5°
|
|
blade life
|
36,000 cleaves
|
|
Mode
|
Semiautomatic
|
|
Dimension
|
63mm(W)*76mm(D)*63mm(H)
|
|
Weight
|
430g
|
