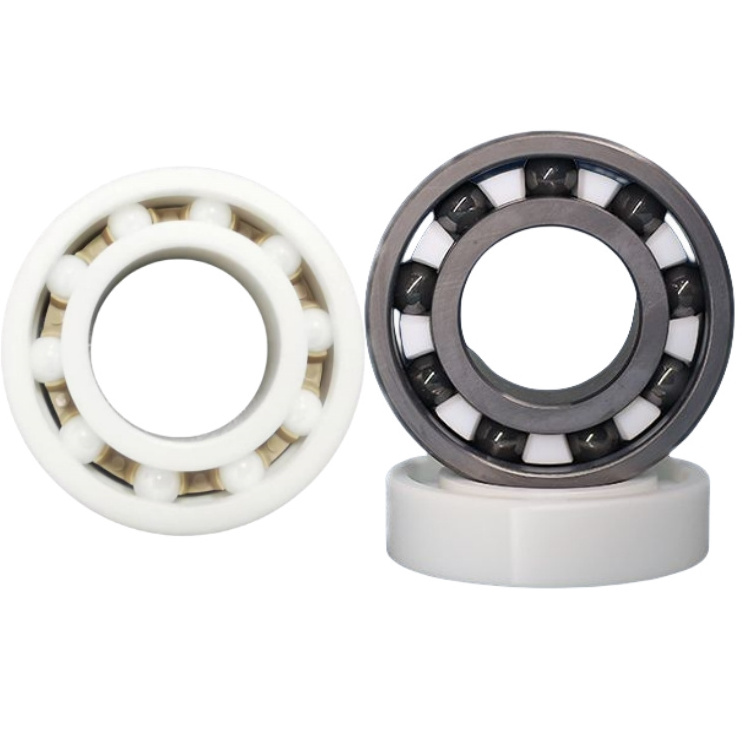

With high temperature resistance, cold resistance, wear resistance, corrosion resistance, magnetic electrical insulation resistance, oilless self-lubrication, high speed, etc.properties. Ceramic bearing is a hi-tech product using new materials that can be used in extreme environments and special condition, and can be widely used in aviation,
aerospace, shipbuilding, petroleum, chemical industry, automobile, electronics, metallurgy, electric power, textile,medical equipment, pumps, scientific research and national defense military and other fields. The ring and roller of our ceramic bearing adopts full ceramic materials including zirconia (ZrO2), silicon nitride（Si₃N₄）,silicon carbide（SiC）, aluminum oxide(Al₂O₃). The cage are made of plastic material: PTEE, PEEK, UPE, PVDF, PA66, SUS304, SUS316, which extends the application of ceramic bearing,
high temperature resistant, corrosion resistant, anti magnetic bearings, bearing, electrical insulation bearing, etc.
- Product Details
- {{item.text}}
Quick Details
-
Number of Row:
-
Single row
-
Model Number:
-
5 * 10 * 4mm 5 * 11 * 4mm 3 * 10 * 4mm
-
Seals Type:
-
OPEN
-
Place of Origin:
-
Shandong, China
-
noise and vibration testing:
-
class v
-
Application:
-
extreme temperatures
-
CAGE MATERIAL:
-
PEEK/ PTFE
-
internal clearance:
-
cn
-
RING Material:
-
Ceramic Si3N4
-
Balls Material:
-
ceramics
-
Lubrication:
-
Self-lubricating, dry
-
tolerance class:
-
abec 1 / p0
-
max. operating temperature:
-
+180°C
-
min.operating temperature:
-
-70°C
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail
-
Bore Size:
-
2 - 110 mm
-
Precision Rating:
-
P0 P6 P5 P4 P2
-
Number of Row:
-
Single row
-
Model Number:
-
5 * 10 * 4mm 5 * 11 * 4mm 3 * 10 * 4mm
-
Seals Type:
-
OPEN
-
Place of Origin:
-
Shandong, China
-
noise and vibration testing:
-
class v
-
Application:
-
extreme temperatures
-
CAGE MATERIAL:
-
PEEK/ PTFE
-
internal clearance:
-
cn
-
RING Material:
-
Ceramic Si3N4
-
Balls Material:
-
ceramics
-
Lubrication:
-
Self-lubricating, dry
-
tolerance class:
-
abec 1 / p0
-
max. operating temperature:
-
+180°C
-
min.operating temperature:
-
-70°C
Product Description
Best Solutions for Special Working Conditions such as:
vacuum, corrosion, clean, high temperature, non-magnetism, insulation, and dust, etc.
Full Ceramic bearing range introduction
.
Product Paramenters
|
BEARING SIZE
|
OUTSIDE DIAMETER (mm)
|
|
|
|
WEIGHT (kg)
|
|
|
|
||||||
|
|
d
|
D
|
B
|
r(min)
|
ZRO2
|
SI3N4
|
PLASTIC
|
440C
|
||||||
|
6006
|
30
|
55
|
13
|
1
|
0.089
|
0.048
|
0.022
|
0.116
|
||||||
|
6206
|
30
|
62
|
16
|
1
|
0.15
|
0.083
|
0.038
|
0.2
|
||||||
|
6306
|
30
|
72
|
19
|
1.1
|
0.27
|
0.14
|
0.066
|
0.35
|
||||||
|
6406
|
30
|
90
|
23
|
1.5
|
0.57
|
0.31
|
0.14
|
0.74
|
||||||
|
6807
|
35
|
47
|
7
|
0.3
|
0.021
|
0.011
|
0.005
|
0.027
|
||||||
|
6907
|
35
|
55
|
10
|
0.6
|
0.058
|
0.031
|
0.014
|
0.075
|
||||||
|
16007
|
35
|
62
|
9
|
0.3
|
0.082
|
0.045
|
0.021
|
0.11
|
||||||
|
6007
|
35
|
62
|
14
|
1
|
0.12
|
0.063
|
0.029
|
0.15
|
||||||
|
6207
|
35
|
72
|
17
|
1.1
|
0.22
|
0.12
|
0.055
|
0.28
|
||||||
|
6307
|
35
|
80
|
21
|
1.5
|
0.36
|
0.19
|
0.089
|
0.46
|
||||||
|
6407
|
35
|
100
|
25
|
1.5
|
0.73
|
0.40
|
0.18
|
0.95
|
||||||
|
6808
|
40
|
52
|
7
|
0.3
|
0.02
|
0.013
|
0.006
|
0.03
|
||||||
|
6908
|
40
|
62
|
12
|
0.6
|
0.09
|
0.05
|
0.022
|
0.11
|
||||||
|
16008
|
40
|
68
|
9
|
0.3
|
0.10
|
0.05
|
0.025
|
0.13
|
||||||
|
6008
|
40
|
68
|
15
|
1
|
0.15
|
0.08
|
0.037
|
0.19
|
||||||
|
MORE SIZES(see size details in catalog)
|
6208, 6308, 6408, 6809, 6909, 16009, 6009, 6209, 6309, 6409, 6810, 6910, 16010, 6010, 6210, 6310, 6410, 6811, 6911, 16011, 6011, 6211, 6311, 6411, 6812, 6912, 16012, 6012, 6212, 6312, 6412, 6813, 6913, 16013, 6013, 6213, 6313, 6413, 6814, 6914, 16014, 16014, 6014, 6214, 6314, 6414, 6815, 6915, 16015, 6015, 6215, 6315, 6415, 6816, 6916, 16016, 6016, 6216, 6316, 6416, 6817, 6917, 683, 693, 603, 623, 633, 684, 694, 604, 624, 634, 685, 695, 605, 625, 635, 686, 696, 606, 626, 636, 687, 697, 607, 627, 637, 688, 698, 608, 628, 638, 689, 699, 609, 629, 639, 6800, 6900, 6000, 6200, 6300, 6801, 6901, 16001, 6001, 6201, 6301, 6802, 6902, 16002, 6002, 6202, 6302, 6803, 6903, 16003, 6003, 6203, 6303, 6403, 6804, 6904, 16004, 6004, 6204, 6304, 6404, 6805, 6905, 16005, 6005, 6205, 6305, 6405, 6806, 6906, 16006,
CE-6000-Si3N4-PTFE-DRY CE-6001-Si3N4-PEEK-OIL CE-6002-Si3N4-PEEK-DRY CE-6002-Si3N4-PTFE-DRY CE-6003-Si3N4-PEEK-OIL CE-6003-Si3N4-PTFE-DRY CE-6004-Si3N4-PEEK-DRY CE-6004-Si3N4-PTFE-DRY CE-6005-Si3N4-PEEK-DRY CE-6005-Si3N4-PTFE-DRY CE-6006 Si3N4-PTFE-DRY, CE-6200-Si3N4-PTFE-DRY CE-6201-Si3N4-PTFE-DRY CE-6202-Si3N4-PEEK-DRY CE-6202-Si3N4-PTFE-DRY CE-6203-Si3N4-PEEK-DRY CE-6203-Si3N4-PTFE-DRY CE-6204-Si3N4 PEEK-DRY CE-6204-Si3N4-PTFE-DRY CE-6205-Si3N4-PEEK-DRY CE-6205-Si3N4-PTFE-DRY
CE-6206-Si3N4-PEEK-DRY CE-6206-Si3N4-PTFE-DRY,
CE-6300-Si3N4-PTFE-DRY CE-6301-Si3N4-PEEK-DRY CE-6301-Si3N4-PTFE-DRY CE-6302-Si3N4-PEEK-DRY CE-6302-Si3N4-PTFE-DRY CE-6303-Si3N4-PEEK-DRY CE-6303-Si3N4-PTFE-DRY CE-6304-Si3N4-PEEK-DRY CE-6304-Si3N4-PTFE-DRY CE-6305-Si3N4-PEEK-DRY
CE-6305-Si3N4-PTFE-DRY CE-6306-Si3N4-PEEK-DRY CE-6306-Si3N4-PTFE-DRY,
CE-603-ZRO2-PTFE-DRY CE-604-C3-ZRO2-PEEK-DRY CE-604-ZRO2-PTFE CE-605-C3-ZRO2-PEEK-DRY CE-605-ZRO2-PTFE-DRY CE-606-C3-ZRO2-PEEK-DRY CE-606-ZRO2-PTFE-DRY CE-607-C3-ZRO2-PEEK-DRY CE-607-ZRO2-PTFE-DRY CE-608-C3-SI3N4-PTFE-DRY CE-608-C3-ZRO2-PEEK-DRY CE-608-C3-ZRO2-PTFE-DRY CE-608-ZRO2-PTFE-DRY CE-609-C3-ZRO2-PEEK-DRY CE-609-ZRO2-PTFE-DRY CE-623-C3-ZRO2-PEEK-DRY CE-623-ZRO2-PTFE-DRY CE-624-C3-ZRO2-PEEK-DRY CE-624-ZRO2-PTFE-DRY CE-625-C3-ZRO2-PEEK CE-625-ZRO2-PTFE-DRY CE-626-C3-ZRO2-PEEK DRY
CE-626-ZRO2-PTFE-DRY CE-627-C3-ZRO2-PEEK-DRY CE-627-ZRO2-PTFE-DRY CE-628-C3-ZRO2-PEEK-DRY CE-628-ZRO2-PTFE-DRY CE-629-C3-ZRO2-PEEK-DRY CE-629-ZRO2-PTFE-DRY CE-634-C3-ZR02-PEEK-DRY CE-634-ZRO2-PTFE-DRY CE-635-C3-ZRO2-PEEK-DRY CE-635-ZRO2-PTFE-DRY CE-636-C3-ZRO2-PEEK-DRY CE-636-ZRO2-PTFE-DRY CE-683-C3-ZRO2-PEEK-DRY CE-684-C3-ZRO2-PEEK-DRY CE-685-C3-ZRO2-PEEK-DRY CE-685-W3-ZROW-PTFE-DRY CE-685-ZRO2-PTFE-DRY CE-686-C3-ZRO2-PEEK-DRY CE-686-ZRO2-PTFE-DRY CE-687-2RS-C3-ZRO2-PTFE CE-687-2RS-ZRO2-PTFE CE-687-ZRO2-PTFE-DRY CE-688-C3-ZRO2-PEEK-DRY CE-688-W4-ZRO2-PTFE-DRY CE-688-ZRO2-PTFE CE-689-C3-ZRO2-PEEK-DRY CE-689-ZRO2-PTFE-DRY CE-693-C3-ZRO2-PEEK CE-693-ZRO2-PTFE-DRY CE-694-C3-ZRO2-PEEK-DRY CE-694-ZRO2-PTFE CE-695-C3-ZRO2-PEEK CE-695-ZRO2-PTFE-DRY CE-696-C3-ZRO2-PEEK CE-696-ZRO2-PTFE-DRY CE-697-C3-ZRO2-PEEK-DRY CE-697-ZRO2-PTFE-DRY
CE-698-C3-ZRO2-PEEK-DRY CE-698-ZRO2-PTFE-DRY CE-699-C3-ZRO2-PEEK CE-699-ZRO2-PTFE-DRY,
etc.
|
62201-2RS 62202-2RS 62203-2RS 62204-2RS 62205-2RS 62206-2RS 62207-2RS 62208-2RS 62209-2RS 62210-2RS
62301-2RS 62302-2RS 62303-2RS 62304-2RS 62305-2RS 62306-2RS 62307-2RS 62308-2RS 62309-2RS 62310-2RS 62310-ZZ
63001-2RS 63002-2RS 63003-2RS 63004-2RS 63005-2RS 63006-2RS 63007-2RS 63008-2RS 63009-2RS 63010-2RS
63800-ZZ 63801-2RS 63801-ZZ 63802-2RS 63802-ZZ 63803-2RS 63803-ZZ
RMS05-OIL RMS05-ZZ RMS06-2RS 19.05X50.8X17.46 RMS06-OIL RMS06-ZZ RMS07-2RS 22.225X57.15X17.46 RMS07-OIL RMS07-ZZ RMS08-2RS 25.4X63.5X19.05 RMS08-OIL RMS08-ZZ RMS09-2RS 28.575X71.438X20.64 RMS09-OIL RMS09-ZZ RMS10-2RS 31.75X79.375X22.23 RMS10-OIL RMS10-ZZ RMS11-OIL 34.925X88.9X22.23 RMS12-OIL 38.1X95.25X23.81 RMS13-OIL 41.275X101.6X23.81 RMS14-OIL 44.45X107.95X26.99 RMS16-OIL 50.8X114.3X26.99 RMS18-OIL 57.15X127X31.75 RMS20-OIL 63.5X139.7X31.75
R1038-OIL R1038-ZZ R133-ZZ R144-W2.38-DRY 3.175X6.35X2.38 R144-W2.38-OIL R144-ZZ 3.175X6.35X2.779 R155-W2.779-OIL 3.967X7.938X2.779 R155-ZZ 3.967X7.938X3.175 R156-ZZ 4.762X7.938X3.175 R166-2RS 4.763X9.525X3.175 R166-DRY R166-ZZ R168-2RS 6.35X9.525X3.175 R168-ZZ R168-ZZ-TN R1810-2RS 7.938X12.7X3.967 R1810-OIL R1810-ZZ R188-W3.175-OIL 6.35X12.7X3.175 R188-ZZ 6.35X12.7X4.7624 R2-2RS R2-5-ZZ 3.175X7.938X3.571 R2-5-ZZ-TN R2-OIL R2-ZZ R2-ZZ-TN R2A-ZZ R3-2RS R3-W3.967-OIL 4.762X12.7X3.967 R3-ZZ R3A-OIL 4.762X15.875X4.978 R3A-ZZ R4-2RS R4-OIL R4-ZZ R4A-2RS R4A-OIL R4A-ZZ R6-2RS R6-W5.558-OIL 9.525X22.225X5.558 R6-ZZ
