- Product Details
- {{item.text}}
Quick Details
-
Power:
-
2.2KW
-
Weight:
-
580 KG
-
Dimension(L*W*H):
-
1300*1150*1460MM
-
Material:
-
SUS304 Stainless Steel
-
Capacity:
-
200-300kg/h
-
Keyword:
-
industrial meat slicer
-
Key words:
-
meat slicer machine
-
Name:
-
Frozen Meat Slicer Machine
-
Cutting Speed:
-
50-60 pcs/min
-
Slice Thickness (mm):
-
adjustable
-
Feature:
-
PLC controller
-
Advantage:
-
sensor protective cover
-
Application:
-
frozen meat, beef, mutton, lamb, pork all meat
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
STABAKE
-
Voltage:
-
220V/380V
-
Power:
-
2.2KW
-
Weight:
-
580 KG
-
Dimension(L*W*H):
-
1300*1150*1460MM
-
Material:
-
SUS304 Stainless Steel
-
Capacity:
-
200-300kg/h
-
Keyword:
-
industrial meat slicer
-
Key words:
-
meat slicer machine
-
Name:
-
Frozen Meat Slicer Machine
-
Cutting Speed:
-
50-60 pcs/min
-
Slice Thickness (mm):
-
adjustable
-
Feature:
-
PLC controller
-
Advantage:
-
sensor protective cover
-
Application:
-
frozen meat, beef, mutton, lamb, pork all meat
Product Description

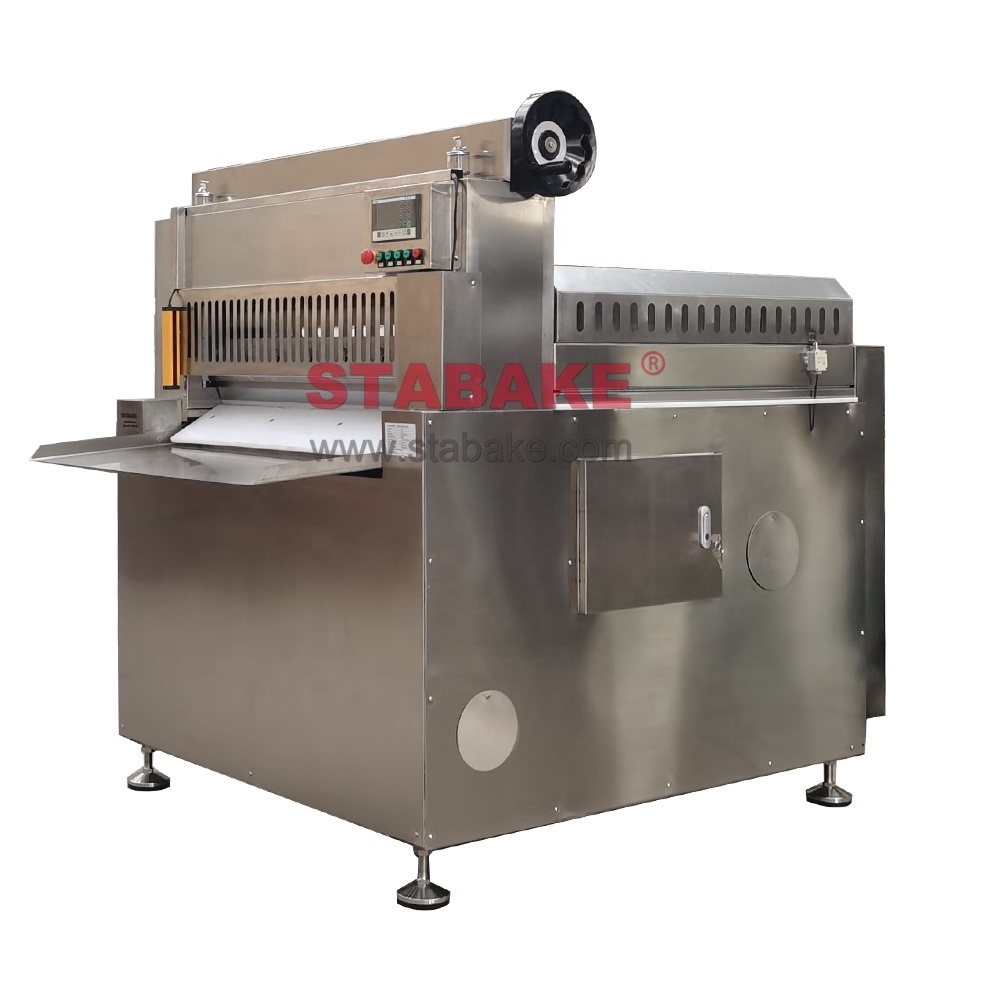

Full SUS304 stainless steel industrial meat slicer machine beef cutting machine
* Cut meat roll thickness uniform, neatly arranged.the thickness adjustable as you need.
* The input meat height is 18cm(cutting height and method also can be customized made as requirement).
* Adopt PLC controller, automatic and simple operation. all functionsare used point switch, easy and fast.
* With urgent stop; equipped with a cover and infrared sensor device in the front of cutting knife; and sensor protective cover at feeding part. When theprotective cover is open, the cutter will automatically power off to stop running, The cutter can not run unless the security door was shut, double safety protection, to ensure safety.
* The blade is made of imported steel composite rolling (sharp, wear-resistant, long service life, neat and beautiful coil
shape).
Feature of Industrial meat slicer:
1) The Meat Slicer machine use servo, stepper motor drive to completely solve the problem of failure rate of mechanical.
2) Both the automatic pusher and feeder adopt double polished rods and lead screws. The main frame is made of gray iron precision casting, and groove welding, whole frame use HT450 precision casting and then heat treated and processed by a precision casting machine, the hole and shaft are closely matched, high strength, wear resistance and heat resistance, good shock absorption and runs without noise.
3) It can manufacture the whole machine with SUS304 Stainless steel.
4) The machine also can manufacture with the out conveyor, the length of conveyor is customized made as you needs.
Application
This meat slicer machine used for frozen meat cut into meat rolls or fresh meat cut into meat slices.
This meat slicer machine used for frozen meat cut into meat rolls or fresh meat cut into meat slices.
Technical Parameters
|
Model
|
RJ2
|
RJ4
|
RJ6
|
RJ8
|
|||
|
Capacity
|
50-120kg/h
|
100-180kg/h
|
150-200kg/h
|
200-300kg/h
|
|||
|
Cutting rolls quantity
|
2
|
4
|
6
|
8
|
|||
|
Power
|
1.1KW
|
1.5KW
|
2.2KW
|
2.2KW
|
|||
|
Slice speed
|
50-60pcs/min
|
50-60pcs/min
|
50-60pcs/min
|
50-60pcs/min
|
|||
|
Slice thickness
|
Adjustable
|
|
|
|
|||
|
Cutting width
( customer made)
|
230mm
|
430mm
|
630mm
|
830mm
|
|||
|
Cutting height
( customer made)
|
180MM
|
|
|
|
|||
|
Cutting length
( customer made)
|
700mm
|
|
|
|
|||
|
Dimensions (mm)
|
1150*500*1350
|
1300*700*1350
|
1300*920*1400
|
1300*1150*1450
|
|||
|
Weight
|
100kg
|
200kg
|
350kg
|
600kg
|
|||
More Images
Our Company
FAQ
|
Q1: What is your machine guarantee?
A1: Normally the guarantee period is 1 year, and we will keep contact with our customers for after-sales service. We're aim to produce better machines and let our customers be satisfied. Q2: How can I get quotation? A2: Send your requirements and leave your email, we will send you quotation soon. Q3: If we have problems when using your machine, what should we do? A3: If you have any problem, just contact us, we will help you to solve it, and if necessary, we will arrange our engineers to help you in your country. Q4: What about the shipping methods? A4: For urgent order and light weight, you can choose express: FedEx, TNT, DHL or EMS; for heavy weight, you can choose by air or by sea to save cost. Q5: What’s your delivery time? A5: Usually we produce within 7-15days after the payment confirmed. It is also depend on the machines, if need to customize the machine as your requirement, the producing time is longer. Q6:Which kind of payment method you can accept? A6: T/T. Western Union, L/C. |
|
|
|
|||
