Quick Details
-
Model Number:
-
PSH
-
Specification:
-
3/4"-14"
-
Length:
-
10M-50M
-
Thickness:
-
2mm-12mm
-
Standard:
-
ISO14001 ISO9001
-

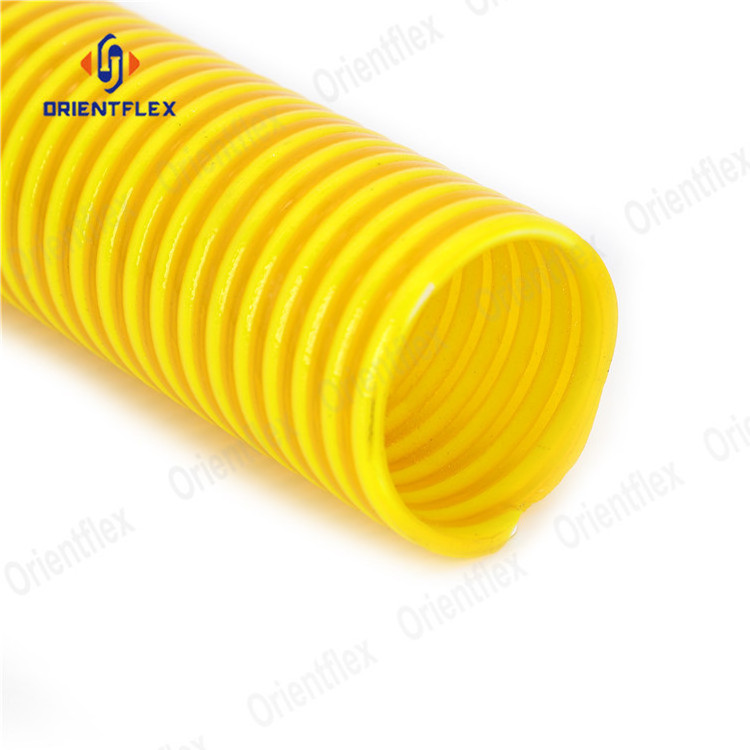

Product name:
-
PVC Suction Hose
-
Raw material:
-
PVC
-
Construction:
-
High quality pvc with rigid pvc helix
-
Application:
-
Suction and discharge of water,oil and powdery articles
-
Feature:
-
Abrasion & chemical resistant
-
Color:
-
Customized
-
Couping:
-
Camlock couping amd clamps are available
-
Temperature range:
-
-10℃~65℃
-
Packing:
-
Customized
-
Sample:
-
Available
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Orientflex
-
Model Number:
-
PSH
-
Specification:
-
3/4"-14"
-
Length:
-
10M-50M
-
Thickness:
-
2mm-12mm
-
Standard:
-
ISO14001 ISO9001
-
Product name:
-
PVC Suction Hose
-
Raw material:
-
PVC
-
Construction:
-
High quality pvc with rigid pvc helix
-
Application:
-
Suction and discharge of water,oil and powdery articles
-
Feature:
-
Abrasion & chemical resistant
-
Color:
-
Customized
-
Couping:
-
Camlock couping amd clamps are available
-
Temperature range:
-
-10℃~65℃
-
Packing:
-
Customized
-
Sample:
-
Available
Construction:
High quality pvc with rigid pvc helix
Application:
PVC suction hose is designed for regular water supply and drainage, and for transporting various powdery particles and liquids, it is widely used in civil and building works ,agriculture,mining, construction,ship and fishery.
Characteristic:
1.Economical & flexible
2.Abrasion & chemical resistant
3.Impact & crush resistant
4.Excellent bending radius
5.Constructed with rigid spiral helix reinforcement
6.Smooth inner construction for unrestricted flow of materials
Temperature: -10℃ (-50 ℉ )to + 65°C (+ 150°F)
| HEAVY DUTY | |||||||||||
| Item code | I.D | OD | Thickness | W.P | Vacuum Rat. | Bend Radius | Length | Dimension | Volume | ||
| inch | mm | mm | mm | bar | psi | mmHg(68°F) | mm | m | D*H(cm) | m3/roll | |
| PSHH019 | 3/4 | 19.0±0.5 | 25.0±0.5 | 3.0 | 5.0 | 75 | 750 | 70 | 50 | 60x20 | 0.072 |
| PSHH025 | 1 | 25.4±0.5 | 31.4±0.5 | 3.0 | 5.0 | 75 | 750 | 70 | 50 | 60x25 | 0.090 |
| PSHH032 | 1 1/4 | 31.7±0.5 | 37.7±0.5 | 3.0 | 5.0 | 75 | 750 | 90 | 50 | 70x30 | 0.147 |
| PSHH038 | 1 1/2 | 38.1±0.5 | 45.1±0.5 | 3.5 | 5.0 | 75 | 750 | 110 | 50 | 80x30 | 0.192 |
| PSHH050 | 2 | 50.8±1.0 | 58.8±1.0 | 4.0 | 5.0 | 75 | 750 | 150 | 50 | 100x25 | 0.250 |
| PSHH065 | 2 1/2 | 63.5±1.0 | 72.5±1.0 | 4.5 | 4.0 | 60 | 750 | 180 | 50 | 115x35 | 0.463 |
| PSHH075 | 3 | 76.2±1.0 | 86.2±1.0 | 5.0 | 4.0 | 60 | 750 | 220 | 50 | 135x40 | 0.730 |
| PSHH100 | 4 | 101.6±1.5 | 103.6±1.5 | 6.0 | 4.0 | 60 | 750 | 330 | 50 | 200x35 | 1.400 |
| PSHH125 | 5 | 127.0±1.5 | 141.0±1.5 | 7.0 | 3.0 | 45 | 750 | 500 | 50 | 230x42 | 2.220 |
| PSHH152 | 6 | 152.4±1.5 | 168.4±1.5 | 8.0 | 3.0 | 45 | 750 | 700 | 30 | 230x35 | 1.850 |
| PSHH200 | 8 | 203.2±1.5 | 225.2±1.5 | 11.0 | 2.5 | 38 | 750 | 1100 | 12 | 1200x230 | 0.640 |
| PSHH250 | 10 | 254.0±1.5 | 278.0±1.5 | 12.0 | 2.5 | 38 | 750 | 1400 | 12 | 1200x280 | 0.941 |
| PSHH300 | 12 | 304.8±1.5 | 328.8±1.5 | 12.0 | 2.5 | 38 | 750 | 1800 | 12 | 1200x330 | 1.310 |
| PSHH350 | 14 | 355.6±1.5 | 379.6±1.5 | 12.0 | 2.5 | 38 | 750 | 2200 | 12 | 1200x383 | 1.761 |
