Quick Details
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
2000 KG
-
Glue:
-
PUR glue
-
Panel Size:
-
1220*2440mm
-
Thickness of Panel:
-
15mm-150mm
-
Surface material:
-
MDF, particle board, fire-proof plate
-
Base material:
-
with boxes of paper honeycomb, PVC
-
Working Speed:
-
10m/min
-
Overall dimension:
-
19(L)X4.5(W)X1.7(H)m
-
Size:
-
Max1000mmX2000mm
-
Voltage:
-
380v
-
Certification:
-
CE&ISO9001
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hessan
-
Machine Type:
-
Honeycomb lamination machine
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
2000 KG
-
Glue:
-
PUR glue
-
Panel Size:
-
1220*2440mm
-
Thickness of Panel:
-
15mm-150mm
-
Surface material:
-
MDF, particle board, fire-proof plate
-
Base material:
-
with boxes of paper honeycomb, PVC
-
Working Speed:
-
10m/min
-
Overall dimension:
-
19(L)X4.5(W)X1.7(H)m
-
Size:
-
Max1000mmX2000mm
-
Voltage:
-
380v
-
Certification:
-
CE&ISO9001
| Cardboard Production Line high speed flute semi auto lamination machine |

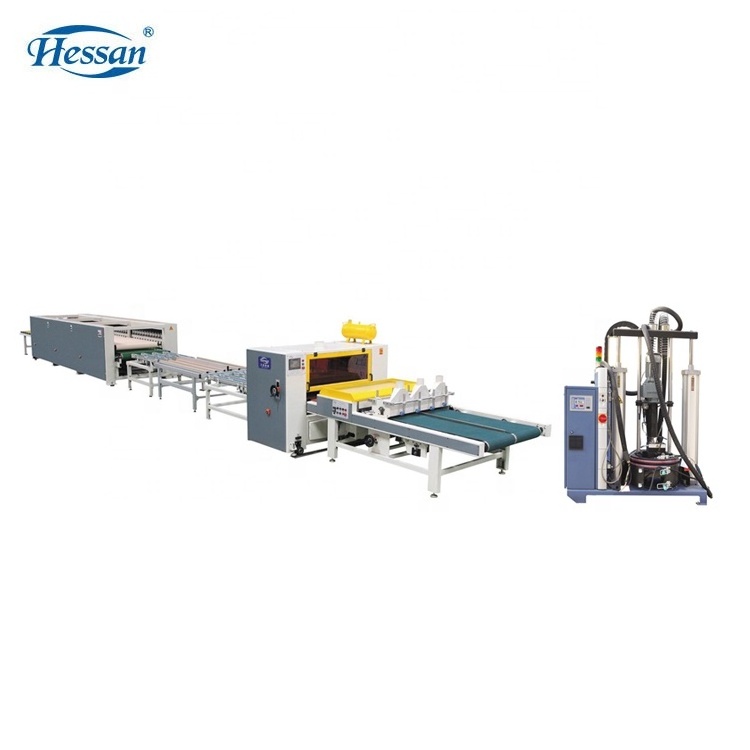

Item: Honeycomb Laminating Line
Model: HY-H-1400
Advantages:
1) More than 20 years production experiences;
2) Provide overseas service;
3) Acquired ISO9001:2008 & CE certificates;
4) Good experiences in world market,products are exported more than 20 countries.
Specifications:
This production line is mainly used in honeycomb panel draping.
Using PUR hot melt adhesive, the whole line is equipped with depiler, dust removal, plate coating machine and bonding platform. After draping it will be pressed by 6 meter roller press online. This production speed is faster, can be avoided the long time pressing. Suitable for all kinds of simple flat door and plate furniture etc. it's a new technology improvement and energy saving of good choice.
Including:
1 .Panel conveyor belt for panel feeding.
2 .Dust cleaing for remove the dust from panel.
3 .Oven for heating the panel before coating the glue.
4 .Glue spreader(Dosing roller is steel roller,and silicon rubber roller for glue coating, both roller are oil heating inside)
5 .Overlay up table for manually place the frame and honey-comb on the panel with glue. And secoundly place the top panel with glue on the frame.
6 .Roller pressing machine(6 meter long,with belt conveyor system which can be suitable for different size of panel.
7 .Out feeding conveyor.
| FUCTIONAL PARAMETER | |
| Model No | HY-H-1400 |
| Dimension Of Product (mm) | 19(L)X4.5(W)X1.7(H)m |
| Base Material | MDF, Partical board,Fire-proof plate |
| Surface Material |
with boxes of paper honeycomb, PVC |
| Glue | PUR hot melt glue |
| Finished Product | Furniture panel, Door panel, Kichent cabinet; |
| TECHNICAL PARAMETER | |
| Design | Researches and develops voluntarily |
| Running Speed | 10M per Minute |
| Heating Power | 30kw |
| Pressing System | Pneumatic |
| Heating System | Oil heating system |
| Eletrical Part | Schneider |
| Color | Yellow and white |
| Certification | CE & ISO9001 |
| Payment Terms |
TT (Bank transfer), LC(LC at sight), Western Union, Money Grams, Trade Assurance |
| Supply Ability | 100 set per month |
| Delivery Time | Standard product 4 weeks, customized product 6-12weeks |
| Packaging Details | Plastic protestion foil and wood case |
