Quick Details
-
Weight:
-
10kg
-
Size:
-
20*20*90cm
-
Productivity:
-
30000L/Hour
-
Weight (KG):
-
10 kg
-
Product name:
-
High Flow Filter Housing
-
Filter Element Size:
-
20inch,40inch,60inch high flow filter cartridge
-
Max.Working Pressure:
-
100psi, 150psi, 300psi
-
Port Size:
-
3/4"-6"
-
Style:
-
Single filter, Multi filter
-
Capacity:
-
5-500 M3/H
-
Certification:
-
CE ISO
-
Application:
-
water treatment
-
Micron Rate:
-
1-200 um
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HatChee
-
Material:
-
Carton, Stainless Steel, UPVC,FRP
-
Weight:
-
10kg
-
Size:
-
20*20*90cm
-
Productivity:
-
30000L/Hour
-
Weight (KG):
-
10 kg
-
Product name:
-
High Flow Filter Housing
-
Filter Element Size:
-
20inch,40inch,60inch high flow filter cartridge
-
Max.Working Pressure:
-
100psi, 150psi, 300psi
-
Port Size:
-
3/4"-6"
-
Style:
-
Single filter, Multi filter
-
Capacity:
-
5-500 M3/H
-
Certification:
-
CE ISO
-
Application:
-
water treatment
-
Micron Rate:
-
1-200 um
High Flow Filter Housing
FRP High Flow Filter Housing
High flow FRP filter housing is designed for cartridge filters used in RO water treatment system. Our products are capable of building in high flow cartridge filters with sizes of 20", 40" and 60". Featured by easy installation and low maintenance cost, it has become the most popular design in the reverse osmosis system at home and abroad.
Compared with stainless steel filter housing, it is more resistant to strong-acid, strong base, bath solution, chlorine alkali, concentrate, landfill leachate and other special medium environment. High flow FRP filter housings are widely used in the applications of water pretreatment in membrane treatment system, electronics, electric power, metallurgy, chemical industry, food, beverage, brackish water, seawater desalination and separation of landfill leachate.
|
Commodity |
Filter Accuracy |
Model |
Size |
|
High Flow Filter Housing for Pall Cartridge |
1–200 um |
WPL-10 |
10" |
|
WPL-20 |
20" |
||
|
WPL-30 |
30" |
||
|
WPL-40 |
40" |
||
|
WPL-60 |
60" |
||
|
High Flow Filter Housing for 3M Cartridge |
1–200 um |
W3M-40 |
40" |
|
W3M-60 |
60" |
||
|
High Flow Filter Housing for PAKE Cartridge |
1–200 um |
WPK-40 |
40" |

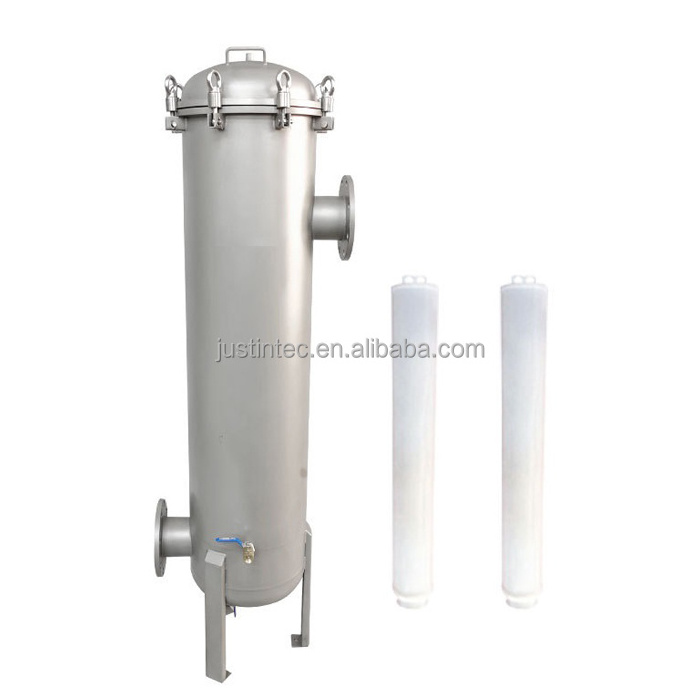

Stainless Steel High Flow Filter Housing
High Flow Cartridge Filter Housings Horizontal effectively remove dirt, pipe scale and other substances from process liquids. Our dependable, long-lasting steel housings are available in a variety of sizes and O-ring materials to accommodate your chemical compatibility, flow rate and pressure requirements.
Features
• Flow rates up to 3,500 gpm (13,249 Lpm)
• 2 to 24 basket housing design
• 150 psi to 3000 psi (10.3 to 206.8 bar) pressure ratings
• Low pressure drop
• Swing bolts with bearing-assisted davit closure
• Positive hold down welded to underside of closure lid
• Carbon Steel, 304 and 316L Stainless Steel construction
Applications
• Water
• Chemicals
• Food & Beverage
• Electronics
• Oil Inks / Paints / Coatings
• Coolants
• Pulp & Paper
UPVC High Flow Filter Housing
PF filter system can be widely used sewage and wastewater reuse, desalination, electronics and other fields. It is character with high flow, long working life and good operation of complex liquid. It consists of the housing and the cartridge.
