Quick Details
-
Temperature range:
-
-25~250C
-
Type:
-
K/J/E/N/S/T type
-
Sectional area:
-
2x0.5/ 2x1.0/ 2x1.5/ 2x2.5
-
Material:
-
PTFE/PVC
-
Core count:
-
2 cores
-
Application:
-
temperature compensation
-
Length:
-
customize
-
Keywords:
-
Thermocouple wire
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Duchin
-
Model Number:
-
KC-BB
-
Temperature range:
-
-25~250C
-
Type:
-
K/J/E/N/S/T type
-
Sectional area:
-
2x0.5/ 2x1.0/ 2x1.5/ 2x2.5
-
Material:
-
PTFE/PVC
-
Core count:
-
2 cores
-
Application:
-
temperature compensation
-
Length:
-
customize
-
Keywords:
-
Thermocouple wire

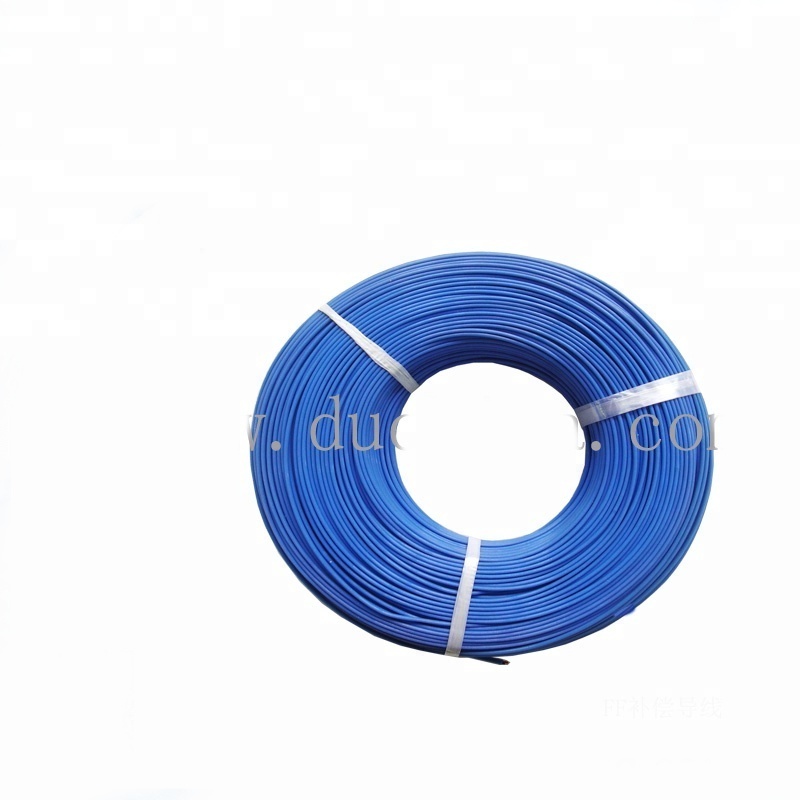

29 years manufacturer Thermocouple compensation wire made in China
Thermocouple wire
1. Thermocouple:K,J,E,T,N,S
RTD:Cu,Ni
2. Conductor dimension
Conductor square meter:0.2mm ² ,0.5 mm ² ,1.0 mm ² ,1.5 mm ² ,2.5 mm ²
AWG standard
3. Insulation layer material
V:PVC 0~105C
F:PTFE 0~350C
B:Fiberglass 0~300C
4. Jacket layer material
V:PVC 0~105C
F:PTFE 0~350
B:Fiberglass 0~300C
5. Shield material
P:Cu
P1:Tinned brass
6. Color standard
Confroms to IEC584 standard
Cables with special material or special dimensions,welcome to contact for further discussion.
|
Sectional area |
Type | Parameters |
|
2x0.5/ 2x1.0/ 2x1.5/ 2x2.5 |
K/J/E/N/S/T type |
Temperature range: 0~70C, 0~180C,-25~200C,-25~250C Protection material: teflon(PTEE), PVC Count core: 2 cores Function: temperature compensating Length: customize
|
