Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9kw ATC
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SUDIDAO
-
Voltage:
-
380V/220V 50-60HZ
-
Dimension(L*W*H):
-
3960*2200*2300MM
-
Power (kW):
-
9
-
Weight (KG):
-
2000
-
After-sales Service Provided:
-
Online support
-
Name:
-
cnc router for composite door
-
working area:
-
1300*2500*200mm
-
Table:
-
Vacuum adsorption table and vacuum pump
-
Gear rack:
-
Helical gear rack
-
Control system:
-
DSP control/Ncstudio control system
-
Certification:
-
CE ISO
-
Motor:
-
Stepper motor or servo motor
-
Tool magazine:
-
12/16/18
-
Inverter:
-
11KW
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9kw ATC
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SUDIDAO
-
Voltage:
-
380V/220V 50-60HZ
-
Dimension(L*W*H):
-
3960*2200*2300MM
-
Power (kW):
-
9
-
Weight (KG):
-
2000
-
After-sales Service Provided:
-
Online support
-
Name:
-
cnc router for composite door
-
working area:
-
1300*2500*200mm
-
Table:
-
Vacuum adsorption table and vacuum pump
-
Gear rack:
-
Helical gear rack
-
Control system:
-
DSP control/Ncstudio control system
-
Certification:
-
CE ISO
-
Motor:
-
Stepper motor or servo motor
-
Tool magazine:
-
12/16/18
-
Inverter:
-
11KW

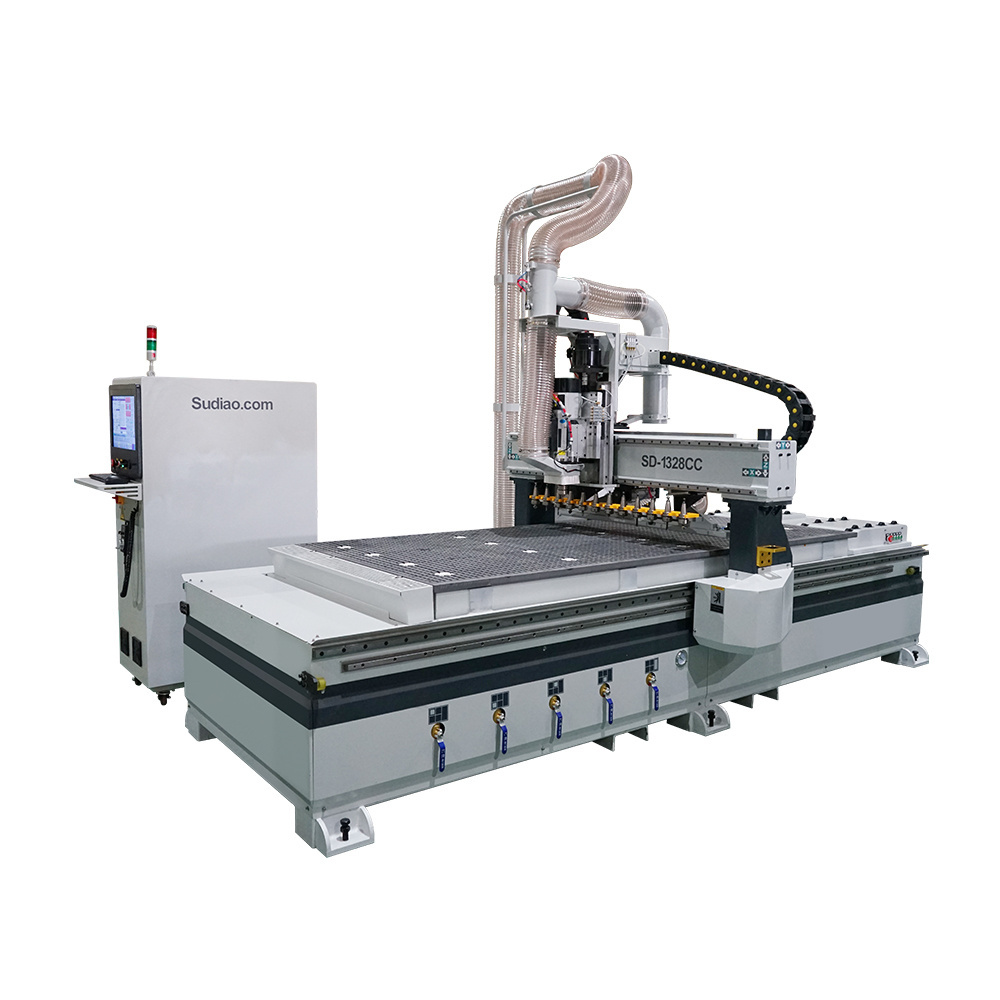

4x8 5x10 Automatic Tool Changer linear Spindle Atc vacuum table cnc wood cutting machines for Wooden Door MDF Plywood
Features
1.9KW High Quality air cooling spindle with 24000rpm to make sure accurate cutting and drilling .
2.850W Leadshine AC Servo Motor with 30m/min working speed to improve working efficiency
3.Intelligent SYNTEC Control System with PC Monitor which is very easy to processing
4.7.5KW Vacuum pump with 250m3/h which can hold the 30mm board firmly .
Machine Applications
Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.Cnc furniture production line.
|
Model |
SD-1325cc 1328cc |
|
|
Working travel |
X axis |
1300mm |
|
Y axis |
2500mm |
|
|
Z axis |
200mm |
|
|
Table structure |
Vacuum suction |
|
|
Orbit |
HIWIN or PMI square orbit |
|
|
Transmission type |
X, Y Rack,Z Ball screw |
|
|
Working accuracy |
± 0.05 |
|
|
Repositioning accuracy |
± 0.05 |
|
|
Max.Idle speed |
60000mm/min |
|
|
Max.working speed |
25000mm/min |
|
|
Spindle parameters
|
Type of cooling |
Imported Italian HSD air cooling spindle |
|
Power |
9kw |
|
|
Speed |
0-24000r/min |
|
|
Inverter |
11kw Sunfar Inverter |
|
|
Drive system |
750KW Japan YASKAWA servo |
|
|
Command code |
G code |
|
|
Control system |
Syntec-6MB |
|
|
Oiling system |
Automatic |
|
|
Working voltage |
AC380V/3PH/50HZ |
|
1.With 12/14 Automatic Tool Changer you can do cutting drilling grooving for cabinet kitchen , Classic cabinet door and 3D Engraving Is also easy job for this machine .
2.Leadshine 850W AC Servo is famous brand in China , Fast speed and stability to make sure production accuracy and efficiency .
3.SUDIAO CNC Push Arm has 2 Functions to help customer improve production and protect workers healthy .
A: Push arm to unloading table B: Clean the Dust on table .
Of course, we also provide you with customizable devices, such as automatic loading platform and feeding conveyor,double working table. you can customize and select different configurations according to your needs to make production more efficient.
4,Strong flexible Cable Chains, Keep cables long life, tidy.
5. HAIXUN Nesting Software , Easy to design to improve production efficiency
Our Machine can also accept Ban/XML/DXF/MPR File which is compatible all nesting
software .
6.Taiwan Syntec Smart Control System
Stable and Easy to Learn and Operate.
Machine Package
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with PE stretch film.
3.The Plywood box for standard size machine to make sure safety.
Guarantee and After-sale service:
1.12 months warranty for the whole machine.
2.Technical support by phone, email or WhatsApp/Skype around the clock.
3.Friendly English version manual and operation video CD disk.
4.Engineer available to service machinery overseas.
