Quick Details
-

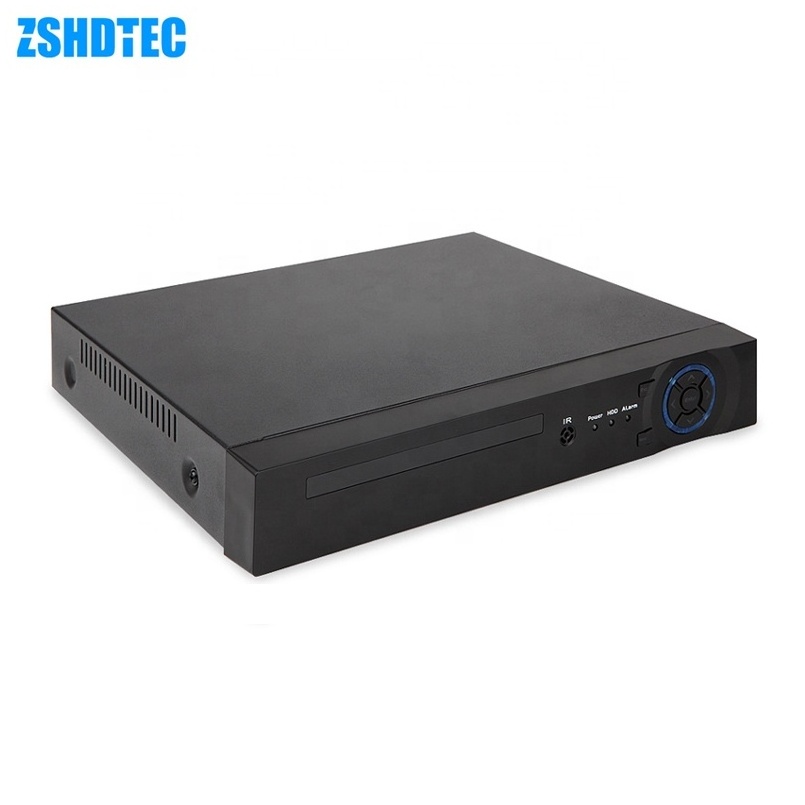

Product name:
-
security network dvr 4ch
-
Recording:
-
4ch* 5MN
-
Video input:
-
BNC x 4
-
Video output:
-
1ch VGA, 1ch HDMI
-
Audio output:
-
1CH
-
HDD:
-
1*6T SATA HDD ( Excluded)
-
Function:
-
motion detection alarm
-
P2P:
-
support
-
Mobile view:
-
support
-
Dimension:
-
L200*W210*H45mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vision Star
-
Model Number:
-
VS-A6704NH-5
-
Product name:
-
security network dvr 4ch
-
Recording:
-
4ch* 5MN
-
Video input:
-
BNC x 4
-
Video output:
-
1ch VGA, 1ch HDMI
-
Audio output:
-
1CH
-
HDD:
-
1*6T SATA HDD ( Excluded)
-
Function:
-
motion detection alarm
-
P2P:
-
support
-
Mobile view:
-
support
-
Dimension:
-
L200*W210*H45mm
Product Description
Features:
1. HD iDVR Five in one: Multi-mode input: AHD / CVI / TVI / CVBS / IP
2. Step on the Internet: With XM P2P cloud service, easy to achieve a variety of network penetrations, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
3. Compression algorithm ideal: H.265 High Profile compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
4. Playback quality: 5MN
5. Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
6. Mobile monitor: Support various mobile monitoring (iPhone, Windows Mobile, BlackBerry, Symbian, Android).
7. Display: support VGA, HDMI HD output.
8. Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.
9. Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
10. Browsers: Support IE/Chrome/Firefox/Safari browsers.
11. Remote Access:3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
12. Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
13. Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
14. Support P2P and App remote view
Specification:
|
Model |
VS-A6704NH-5 |
|
|
System |
Main processor |
NT98321 |
|
Operating System |
embedded Linux |
|
|
System Resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
|
Interface |
User interface |
support 16-bit true color graphical menu interface and mouse operation |
|
Preview screen |
1/4/8 |
|
|
Video Standard |
PAL/NTSC |
|
|
Video |
Video compression |
H.265+(High Profile); JPEG snapshot |
|
Display quality |
VGA,HDMI: HD |
|
|
Playback quality |
AHD-H / AHD-NH / D1 |
|
|
Encode capacity |
4*5MN @20FPS |
|
|
Decode capacity |
4 * 5MN @ 20 FPS |
|
|
Multi-mode input |
AHD/XVI/TVI/CVI/ANALOG: 4*5MN(20fps)
|
|
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
|
|
Audio |
Audio compression |
G.711A |
|
Intercom |
support |
|
|
Record & playback |
Record mode |
manual>alarm>motion detection>timing |
|
Playback |
4ch |
|
|
Search mode |
Time/calendar/event/channel search |
|
|
Storage & backup |
Space occupation |
Video 1080P: 20G-30G/ day*channel , 720P: 20G/day*channel 960H:12~20G/ day*channel Audio 691.2M/ day*channel |
|
Video Storage |
3.5''HDD&Network |
|
|
Backup mode |
Network, U-disk, USB burner, SATA burner |
|
|
Interface |
Video input |
8ch BNC |
|
Video output |
1ch VGA, 1ch HDMI |
|
|
Audio input |
1ch RCA |
|
|
Audio output |
1ch RCA |
|
|
Alarm input |
0 |
|
|
Alarm output |
0 |
|
|
Network interface |
RJ45 10M/100M |
|
|
USB |
2* USB 2.0 |
|
|
HDD |
1*SATA port (Max 6TB/per) |
|
|
Other |
Power supply |
12V2A |
|
Power Consumption |
<15W (without hard drive) |
|
|
Temperature |
0-+55 |
|
|
Humidity |
10%-90% |
|
|
Dimension |
Packing: 35*28*8cm , only dvr: 25.5*21.5*4.3cm |
|
|
Weight |
Packing: 1.5kg, only dvr: 0.9kg |
|
Packing List
1 x 4CH CCTV DVR (No HDD Included)
1 x User Manual
1 x USB Mouse
1 x Screw Bag
1 x Power Plug
