Quick Details
-
Brand Name:
-
JHA
-
Model Number:
-
JHA-IG05H
-
Place of Origin:
-
Guangdong, China
-
Fixed port:
-
5 10 / 100 / 10000base TX RJ45 ports (data)
-
Forwarding mode:
-
Store and forward (full line speed)
-
Backplane bandwidth:
-
20 Gbps (No blocking)
-
Packet forwarding rate:
-
13.4Mpps
-
MAC address:
-
Support 16K
-
Cache:
-
32K
-
Supporting power supply:
-
DC10-58V/AC 100-240V 50-60HZ
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
14Gbps
-
Brand Name:
-
JHA
-
Model Number:
-
JHA-IG05H
-
Place of Origin:
-
Guangdong, China
-
Fixed port:
-
5 10 / 100 / 10000base TX RJ45 ports (data)
-
Forwarding mode:
-
Store and forward (full line speed)
-
Backplane bandwidth:
-
20 Gbps (No blocking)
-
Packet forwarding rate:
-
13.4Mpps
-
MAC address:
-
Support 16K
-
Cache:
-
32K
-
Supporting power supply:
-
DC10-58V/AC 100-240V 50-60HZ
Detail Images
Features
❤

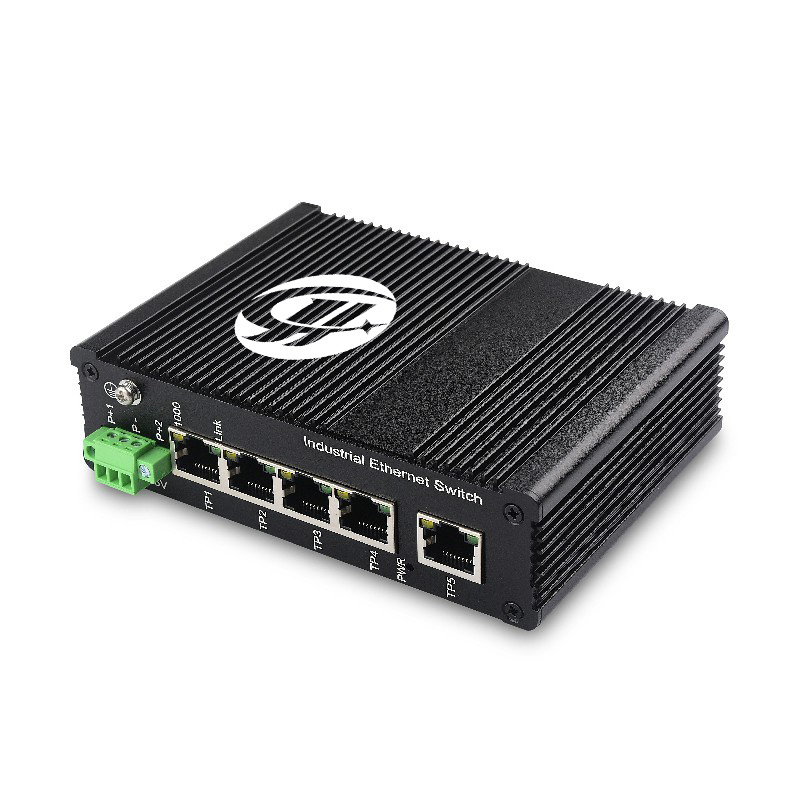

Support 5 10/100/1000Base-T(X) Ethernet port.
❤
Support IEEE802.3, IEEE802.3u, IEEE802.3x.
❤
Plug-and-play, 10/100/1000Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation.
❤
Industrial chip design, 15kV ESD protection, 8kV surge protection.
❤
DC10-58V redundancy power, reverse polarity protection.
❤
Industrial grade 4 design, -40-85°C operating temperature.
❤
IP40 rated aluminum alloy housing, DIN-Rail mounted.
|
Protocol Standard
|
IEEE802.3, IEEE802.3u, IEEE802.3x
|
|
Flow Control
|
IEEE802.3x flow control, back press flow control
|
|
Switching Performance
|
Transmission Mode: Store and Forward
System Exchange Bandwidth: 14Gbps MAC Table Size: 8K Delay Time: < 10μs Packet forwarding rate 7.46Mpps |
|
Ethernet Port
|
10/100/1000Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation
|
|
LED Indicator
|
Power indicator: PWR (green);
Network port indicator: yellow(1000) Green (Link) |
|
Power Supply
|
Input Voltage: DC10-58V
Connector: 3P Phoenix terminal;Dual power supply redundancy Full Load: <5W Protection Mechanism: overload protection, reverse connection protection, redundancy protection |
|
Mechanical Structure
|
Shell: IP40 protection; Aluminum alloy shell
Dimension: 130*94*35mm( L*W*H ) Weight: 0.36KG around Installation: DIN-Rail mount or wall mount |
|
Operating Environment
|
Operating Temperature: -40-85°C
Storage Temperature: -40-85°C Ambient Relative Humidity: 5%-95% (non-condensing) |
|
Certification
|
CE, FCC, RoHS
|
|
MTBF
|
>100,000 Hours
|
|
Warranty
|
1-years
|
Product introduction and detailed usage tutorial
1.
Attach the four non slip rubber footmats that came with the device to the bottom four corners of the switch.
2.
Place the switch on the horizontal desktop in the ventilation area.
3.
Insert the data cable and SFP module
Insert the data cable
Install the SFP module
As shown in the figure, align the optical fiber module with the optical port of the SFP and insert it smoothly. When you hear a clear click, it indicates that the optical fiber module is installed successfully. Just install the two optical fiber modules in this way. (Note: single fiber optical module should be used in pairs with 1310nm A and 1550nm B.Please purchase and check by yourself before installation)
