Quick Details
-
Brand Name:
-
HONGGANG
-
Product name:
-
hydraulic clicker press
-
Suitable for material:
-
fabric/paper/cardboard/EVA Foam/
-
Color:
-
Blue
-
cutting head:
-
available moving left and right
-
Working mode:
-
cutting by die/mould
-
Cutting Plate:
-
610X610mm
-
Cutting area:
-
1600X610mm
-
Stroke:
-
50-240mm
-
Feeding side:
-
automatic,double,or as request.
-
Cutting Force:
-
25T
Quick Details
-
Applicable Industries:
-
shoe
-
Weight (KG):
-
1900
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HONGGANG
-
Product name:
-
hydraulic clicker press
-
Suitable for material:
-
fabric/paper/cardboard/EVA Foam/
-
Color:
-
Blue
-
cutting head:
-
available moving left and right
-
Working mode:
-
cutting by die/mould
-
Cutting Plate:
-
610X610mm
-
Cutting area:
-
1600X610mm
-
Stroke:
-
50-240mm
-
Feeding side:
-
automatic,double,or as request.
-
Cutting Force:
-
25T

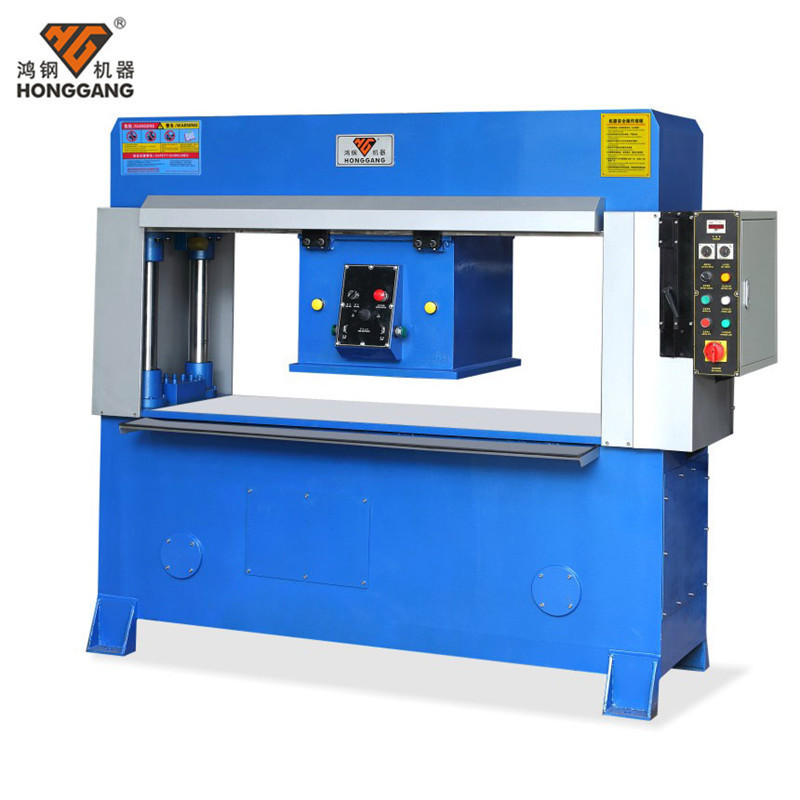

hydraulic travel head hydraulic clicker press
Watch on youtube:
Travelling Head Precision Hydraulic Cutting Machine (testing video):
https://www.youtube.com/watch?v=sIpt39JYVOI
More travel head cutting machine video on our youtube page:
https://www.youtube.com/channel/UCO-wTQeY0Hox4c4Gako8vAQ/videos
What Specification of our travel head cutting machine?
The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.
1.travel head cutting machine pressure:25Tons-50Tons,Cut material by dies / moulds.
2.Hydraulic,manual simple operated,material precision 0.01mm,no burned.
3.Two Cylinders,Four Column,Plane cutting press machine
4.Usually cut for shoe uppers,insoles,bags,purse,soft toys,abrasive tools,fabric ect.
5.Can make big cutting area:610*1600m
m or as required.
Mainly used for die cutting leather and leather products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries; Extremely suitable for cutting multiple layers of material at one time.
1. Technical Parameters travel head cutting machine
| Model.No ~ |
Cutting Force |
Dimension (L*W*H) |
Cutting Area | Cutting Plate | Main Motor Power | Stroke Control Range | Net Weight |
| HG-C25T | 25 Tons | 2330*900*1900mm | 500*1600mm | 500*500mm | 2.2kw | 40-160mm | 1900kg |
| HG-C30T | 30 Tons | 2330*900*1900mm | 610*1600mm | 610*610mm | 4kw | 40-160mm | 2300kg |
| HG-C40T |
40
T
ons
|
2330*900*1900mm | 610*1600mm | 610*610mm | 4kw | 40-160mm | 2800kg |
| HG-C50T |
50
T
ons
|
2330*900*1900mm | 610*1600mm | 610*610mm | 5.5kw | 40-160mm | 3500kg |
2. Features and Advantages travel head cutting machine
|
Features and Advantages |
||||||
| 1.Movable trolley with powerful dynamic braking assuring a quick stop without gear motor without gear motor. | ||||||
| 2.Pushing double buttons with two hands to ensure operators safety. | ||||||
| 3.Hydraulic auto balance system,low energy consumptions. | ||||||
| 4.High reliability,no primary,maintenance required. |
What Working of our travel head cutting machine?
3. the cutting-dies & PP board
We can according to your material,requirements,design the mould for you.
What Application of our travel head cutting machine?
The hydraulic travel head cutting machine is suitable to die cut all non-metal soft /half-soft materials, especially use for die cutting shoes,suitcases,bags,cases,seat covers,facial mash,soft toys,cleaning sponges,artifical flower,EPE,EVA,blister and abrasive tools.
4. The Hydraulic travel head cutting machine Manufacturing Process:
Trade Terms:
Trade term:FOB,CIF,EXW
Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:5-15days working days after deposit.
Packing:Wooden case with plate.
Shipment:By Sea.
