Quick Details
-
Production Capacity:
-
5-60bags/min
-
Weight (KG):
-
650
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession
-
Dimension(L*W*H):
-
1217*1015*1343
-
Product name:
-
Automatic Vertical Packing Machine
-
Bag type:
-
Back Sealing
-
Keyword:
-
High Speed
-
Main Function:
-
Weighing Filling Sealing
-
Usage:
-
Drinking
-
Packing material:
-
PE
-
Product Keywords:
-
Full-Auto
-
Automaticity:
-
Fully Auto
-
Model:
-
420LY
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing
-
Packaging Type:
-
Bags, Film, Foil
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
5-60bags/min
-
Weight (KG):
-
650
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession
-
Dimension(L*W*H):
-
1217*1015*1343
-
Product name:
-
Automatic Vertical Packing Machine
-
Bag type:
-
Back Sealing
-
Keyword:
-
High Speed
-
Main Function:
-
Weighing Filling Sealing
-
Usage:
-
Drinking
-
Packing material:
-
PE
-
Product Keywords:
-
Full-Auto
-
Automaticity:
-
Fully Auto
-
Model:
-
420LY
-
Advantage:
-
Easy Operation High Efficiency

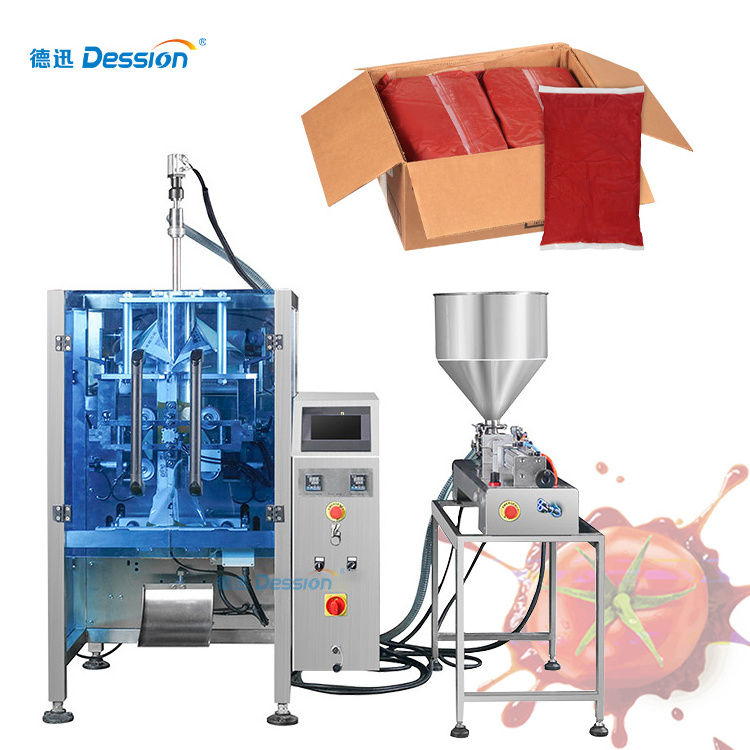

Automatic filling sauce in bag heinz ketchup mayonnaise peanut butter tomato paste mama sita sauce nutella packing machine
Product Description
Dession
Liquid packing machine suitable for the packaging of various liquids and sauces. Such as liquid, sauce, soup, edible oil, liquid medicine, cream, seasoning sauce, honey, shampoo and shower gel.
Detailed Images
1）
Imported PLC
full computer control system, color touch screen, easy to operate, intuitive and efficient.
2）
Impoted servo film transport system,
imported color code sensor, accurate positioning,
excellent overall performance and beautiful packaging.
3）A variety of
automatic alarm protection
functions to minimize losser.
4）
Flat cutting, pattern cutting, linking cutting
can be realized by changing the tools;easy operation with smooth bags.
5）Bag-making equipment can be changed according to specific requirement of customers and products.
6）
Optional English or
other languages
screen display
, easy and simple operation.
Both
packaging speed and bag length
can be set with one click.
7）
All machines have
CE certification and ROSH certificate.
Machine electrical components can be customized and upgraded according to customer needs. Choose from Siemens, Delta, Omron, Mitsubishi, etc.
Main Technical Parameter
|
Host
|
|
|
|
|
|
|
||||||
|
Model
|
DS-320L
|
DS-420L
|
DS-520L
|
DS-620L
|
DS-720L
|
DS-820L
|
||||||
|
Film Width
|
Max.320mm
|
Max.420mm
|
Max.520mm
|
Max.620mm
|
Max.720mm
|
Max.820mm
|
||||||
|
Bag Length
|
80~240mm
|
80~300mm
|
80~350mm
|
150~350mm
|
100~450mm
|
100~450mm
|
||||||
|
Bag Width
|
50~150mm
|
60~200mm
|
80~250mm
|
200~350mm
|
100~350mm
|
180~400mm
|
||||||
|
Filling Range
|
150~800ml
|
150~1500ml
|
150~2000ml
|
150~4000ml
|
150~4000ml
|
6000ml(max)
|
||||||
|
Film Thickness
|
0.04~0.08mm
|
|
|
|
|
|
||||||
|
Roll Diameter
|
Max.320mm
|
|
|
|
|
|
||||||
|
Packaging Speed
|
5~70 bags/min
|
5~60 bags/min
|
10~50 bags/min
|
5~50 bags/min
|
10~40 bags/min
|
5~30 bags/min
|
||||||
|
Machine Power
|
220V,
50/60HZ,
2KW
|
220V,
50/60HZ,
2.2KW
|
220V,
50/60HZ,
3KW
|
220V,
50/60HZ,
3KW
|
220V,
50/60HZ,
3.6KW
|
220V,
50/60HZ,
3.6KW
|
||||||
|
Machine Size
(L*W*H)mm
|
1185*935
*
1245
|
1217*1015
*
1343
|
1488*1080
*1490
|
1700*1250
*1780
|
1716*1260
*1820
|
1780*1350
*1950
|
||||||
|
Machine Weight
|
550kg
|
650kg
|
750kg
|
700kg
|
900kg
|
900kg
|
||||||
|

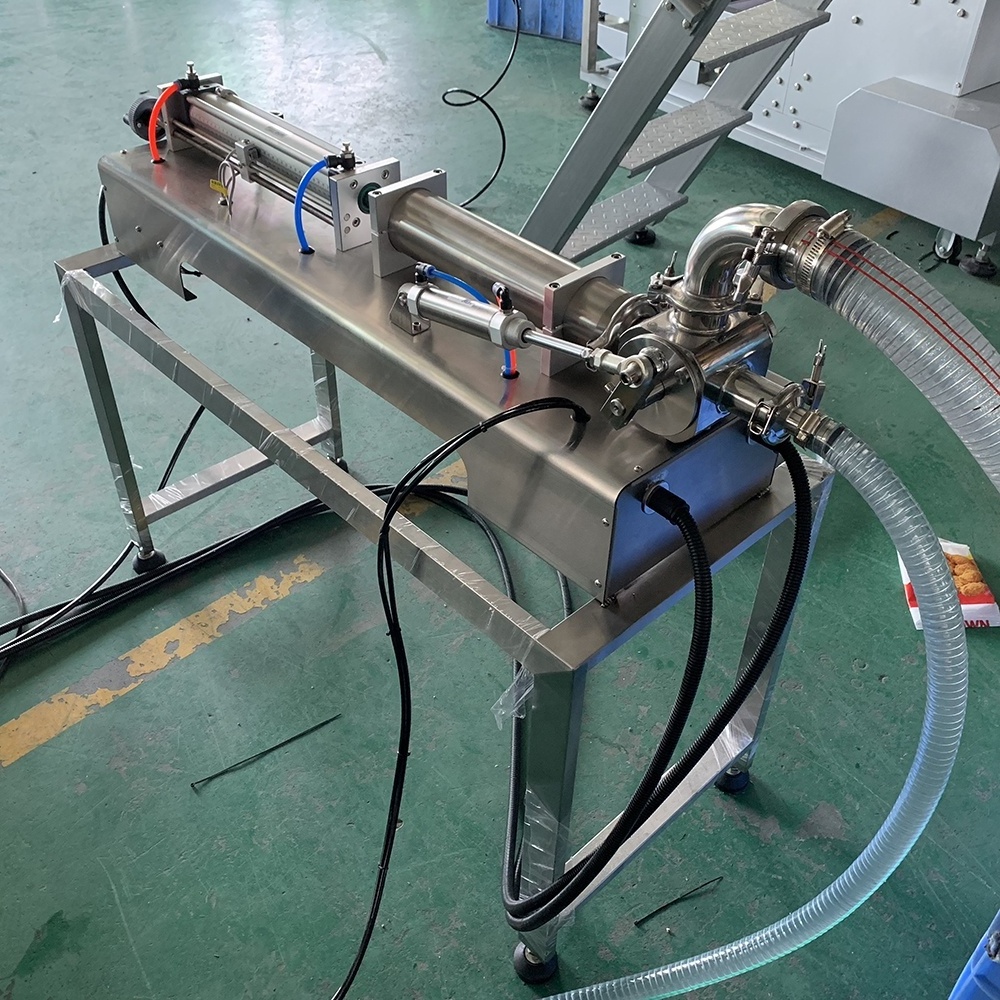

Model
|
Pneumatic Pump
|
|
Speed
|
10~35 n/min
|
|
Air Onsumption
|
0.4~0.6 mpa
|
|
Power Requirement
|
220V/1KW/ 50/60Hz
|
