1> The durability of premium tungsten carbide insert is improved with new formulas and new techniques for bit.
2>Multiple gauge protection with gauge trimmers on the heel, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
3> High precision bearing with two thrust faces.. Hardfaced head bearing surface. CAbrasion resistance and seizure resistance of the bearing are improved.
4>O-ring, Optimal seal compression and curved seal structure can enhance the seal performance. increase the lubricating reliability.
5> Product Application High WOB It is suitable for various formations
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Tci Drill Bit
-
Application:
-
Tricone Three Cone Rock Roller Drill Bit
Quick Details
-
Weight (KG):
-
30
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QDJC
-
Product name:
-
Tci Drill Bit
-
Application:
-
Tricone Three Cone Rock Roller Drill Bit
Product Description

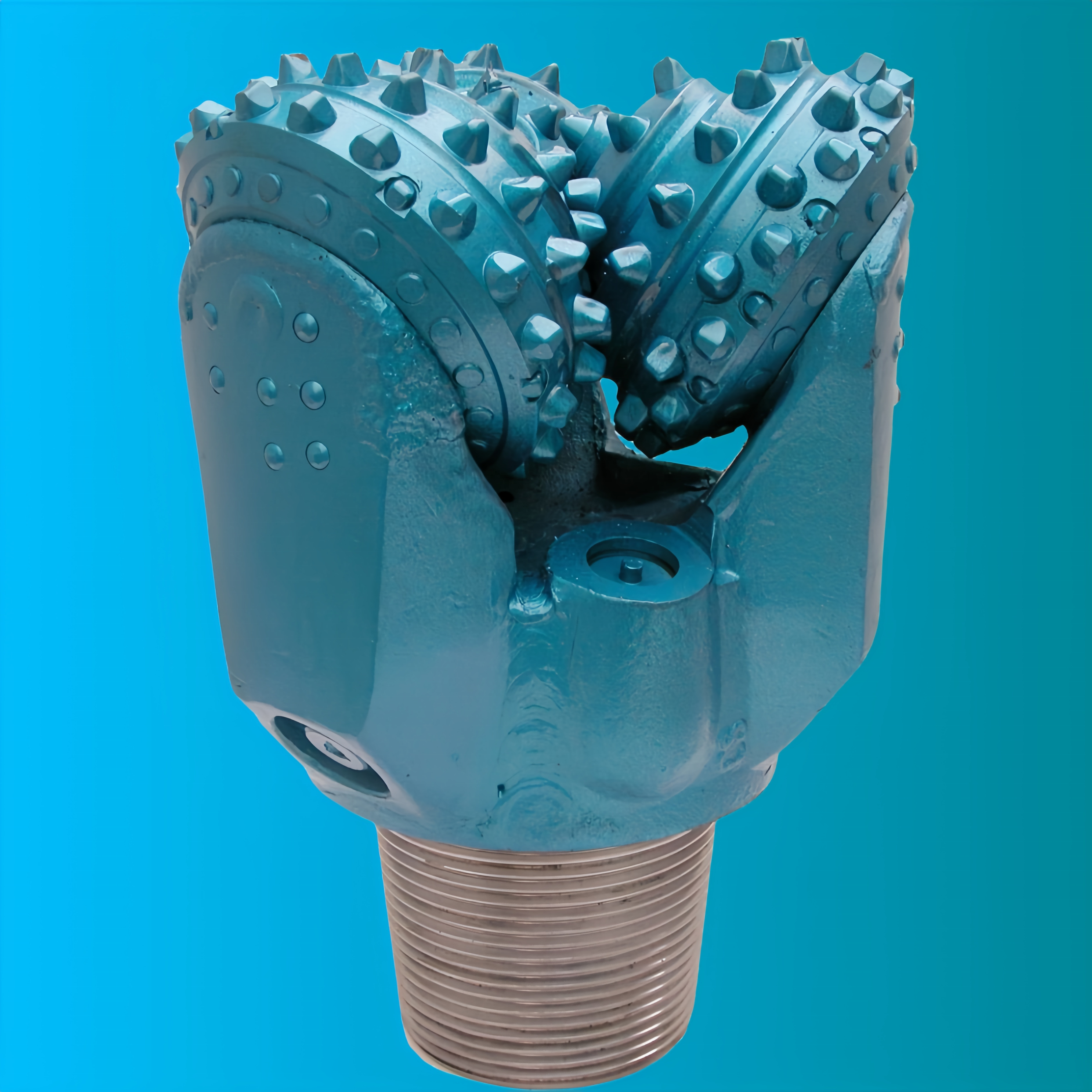

TCI Tricone bit Three Cone Rock Roller Drill Bit For Oil Rig And water well
factory price
|
IADC
|
WOB(kN/mm)
|
RPM (r/min)
|
Suitable formation
|
|||
|
417
|
0.35~0.90
|
140~70
|
Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc.
|
|||
|
437
|
0.35~0.95
|
140~60
|
Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc.
|
|||
|
517
|
0.35~1.05
|
120~50
|
Soft with low compressive strength and high drillability,such as shale,clay,sandstone and soft limestone,etc.
|
|||
|
537
|
0.35~1.05
|
110~40
|
Medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone,sandstone
and dolomite with stringers,etc. |
|||
|
617
|
0.35~1.05
|
80~40
|
Medium hard with high compressive strength and thick&hard stringers,such as hard shale,limestone, sandstone and dolomite,etc.
|
|||
|
637
|
0.70~1.20
|
70~40
|
Medium hard with high compressive strength and high abrasiveness,such as limestone,dolomite, sandstone and chert.ect.
|
|||
|
Note:The upper limits of WOB and RPM in above table should not be used simultaneously.
|
|
|
|
|||
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Warranty
|
3 months
|
|
Applicable Industries
|
Energy & Mining
|
|
Weight (KG)
|
30
|
|
Showroom Location
|
Egypt, Italy, Peru
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Hot Product 2019
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
QDJC
|
|
Type
|
DRILL BIT
|
|
Machine Type
|
Drilling Tool
|
|
Material
|
Carbon steel
|
|
Processing Type
|
Forging
|
|
Use
|
Well Drilling
|
|
Product name
|
Tci Drill Bit
|
|
Type
|
Tricone Three Cone Rock Roller Drill Bit
|
|
Application
|
Tricone Three Cone Rock Roller Drill Bit
|
Sample Room
Exhibition.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
