Quick Details
-
Dimension(L*W*H):
-
1300*900*1200mm
-
Year:
-
2021
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
700 KG
-
Applicable Industries:
-
Recycling industry
-
Rubber Cutting Machine:
-
Tire cutting machine
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
AUCHI
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1300*900*1200mm
-
Year:
-
2021
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
700 KG
-
Applicable Industries:
-
Recycling industry
-
Rubber Cutting Machine:
-
Tire cutting machine
Product Description
Hot sale scrap tire cutting machine / Tire Lump Cutter / Tire strip cutter
This product is mainly used for the recycling of used tires. Because the tires are hollow, large in size and insufficient in weight, it is inconvenient to waste in transportation. Our company's tire decomposing and crushing equipment is to cut the used tire into the sidewall and the crown, and then build it. Strips and blocks, so that it solves the problem of transportation of used tires without affecting the processing of the next step, and is an ideal equipment for primary processing of used tires.
The waste tire decomposing and crushing equipment produced by our company has small investment and strong applicability, including tire cutting machine, tire cutting machine and tire block machine.
The waste tire decomposing and crushing equipment produced by our company has small investment and strong applicability, including tire cutting machine, tire cutting machine and tire block machine.
Specification
|
Machine name
|
Ring cutter
|
Strip cutter
|
Lump cutter
|
Steel separator
|
|
efficiency
|
60 pcs/hour
|
1000 kg/h
|
1000 kg/h
|
120个/小时
|
|
power
|
3kw
|
5.5kw
|
18.5kw
|
15kw
|
|
speed
|
1440r/min
|
1440 r/min
|
1440 r/min
|
1440 r/min
|
|
Voltage
|
380V
|
380 V
|
380 V
|
380V
|
|
Frequency
|
50hz
|
50hz
|
50hz
|
50HZ
|
|
weight
|
300kg
|
720kg
|
650kg
|
1300kg
|
|
Dimensions
|
1300*900*1200mm
|
1300×800×1500mm
|
850×850×1250mm
|
1500×900×1400mm
|
Product Image
Poducts Features
1. Tire ring cutting machine: cut off the rim of waste tires containing thick steel wire for further crushing.

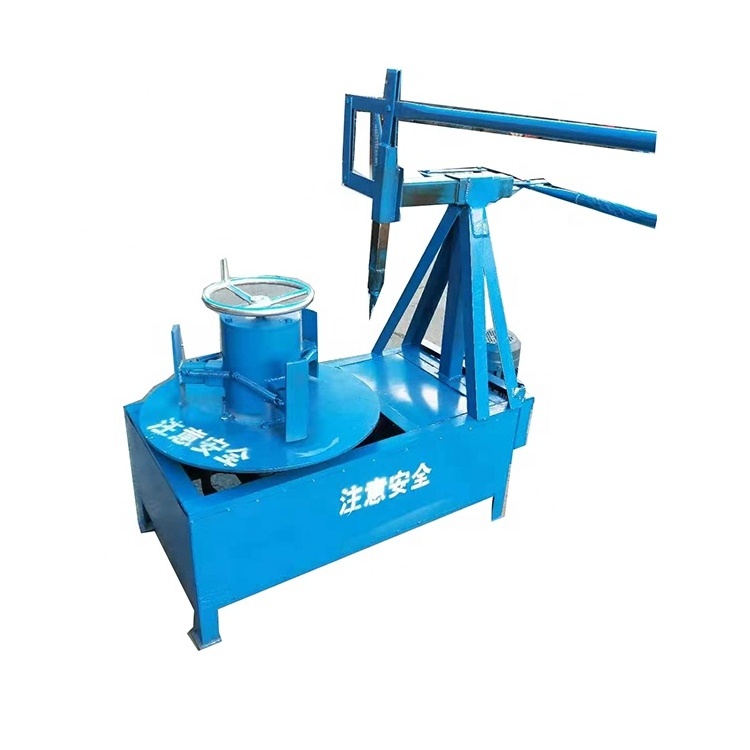

2. Tire cutting machine: Put the waste tire on the disc platform, rotate the middle hand wheel, the four-jaw clamping frame will firmly jam the inner ring of the tire, turn on the power, rotate the working platform, and the cutting tool will enter as
needed With a knife, slowly cut into the tire, step by step, until the side of the tire is cut off. The tool is made of cemented carbide, which is hard and durable, and can be used for repeated grinding.
3. Tire cutting machine: the steel wire tire used for the ring cutting machine to remove the tire bead is cut into strips, and the width of the strip is adjustable.
4. Scrap tire ring separator: This machine is mainly used to separate the rubber on the steel ring of various tires from the wire ring to obtain a complete wire ring.
2. Tire cutting machine: Put the waste tire on the disc platform, rotate the middle hand wheel, the four-jaw clamping frame will firmly jam the inner ring of the tire, turn on the power, rotate the working platform, and the cutting tool will enter as
needed With a knife, slowly cut into the tire, step by step, until the side of the tire is cut off. The tool is made of cemented carbide, which is hard and durable, and can be used for repeated grinding.
3. Tire cutting machine: the steel wire tire used for the ring cutting machine to remove the tire bead is cut into strips, and the width of the strip is adjustable.
4. Scrap tire ring separator: This machine is mainly used to separate the rubber on the steel ring of various tires from the wire ring to obtain a complete wire ring.
