Quick Details
-
Brand Name:
-
minipore
-
Model Number:
-
MPCH/BA -800A MP-TSS-8/6 MP-COD-600
-
Product name:
-

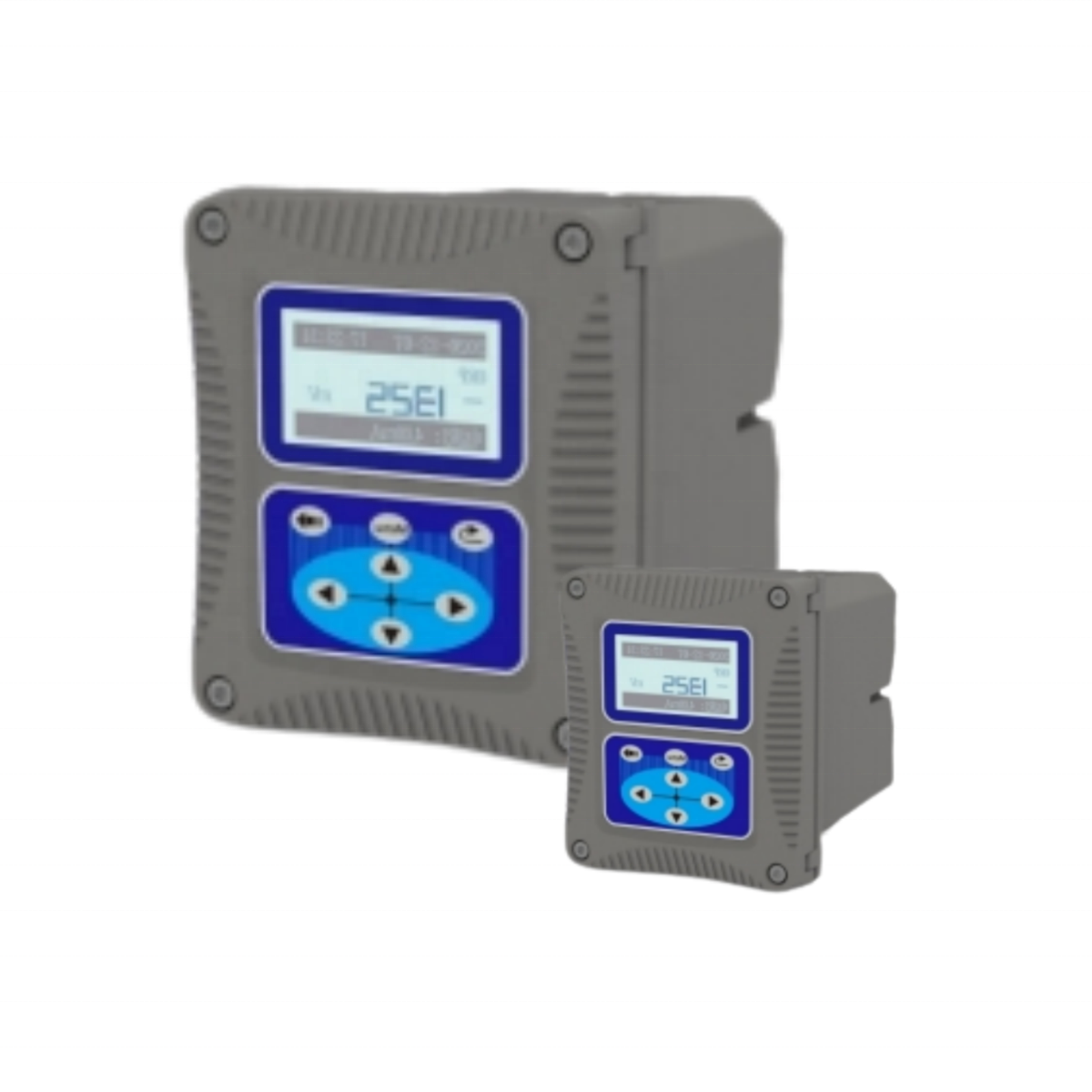

MP-SC1000 Multi-Parameter Controller
-
Weight:
-
About 2.0KG
-
Storage temperature:
-
-20 to 70°C
-
Operating temperature:
-
15 to 60°C
-
Level of water resistance:
-
IP66/NEMA4X
-
Size:
-
145mm*125mm*162mm
-
Output:
-
4-20mA
-
Digital communications:
-
MODBUS RS485
-
Staple:
-
PA66+GF25+FR
-
Power source:
-
AC power supply: 85-500VAC; DC power supply: 9-36VDC
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
minipore
-
Model Number:
-
MPCH/BA -800A MP-TSS-8/6 MP-COD-600
-
Product name:
-
MP-SC1000 Multi-Parameter Controller
-
Weight:
-
About 2.0KG
-
Storage temperature:
-
-20 to 70°C
-
Operating temperature:
-
15 to 60°C
-
Level of water resistance:
-
IP66/NEMA4X
-
Size:
-
145mm*125mm*162mm
-
Output:
-
4-20mA
-
Digital communications:
-
MODBUS RS485
-
Staple:
-
PA66+GF25+FR
-
Power source:
-
AC power supply: 85-500VAC; DC power supply: 9-36VDC
Detailed Images
Product Presentation
◆ Sensors are plug-and-play, and electrodes are quick and easy to install and replace.
Simple to use, reliable results, and interface operation instructions to minimise operating errors.
◆ Visual operation on the LCD screen, bilingual navigation menu, and comprehensive interface.
◆ 4~20mA and MODBUS RS485 data output methods.
◆ Auto-presentation of error and alarm messages, and uploading of alarm signals.
◆ The transmitter supports wall mounting, panel mounting, and pipe clamping.
◆ Time display, data storage, and historical data viewing functions are available.
|
Display Output
|
128*64 graphic dot-matrix liquid crystal with LED backlight can be operated under direct sunlight
|
|
|
|
|
Power source
|
AC power supply: 85-500VAC; DC power supply: 9-36VDC
|
|
|
|
|
staple
|
PA66+GF25+FR (top cover); Aluminum alloy powder coated (bottom shell)
|
|
|
|
|
Output
|
Three 4-20mA analog outputs, programmable response parameters and corresponding ranges
|
|
|
|
|
relays
|
Three-way relay, programmed response parameters and response values
|
|
|
|
|
digital communications
|
MODBUS RS485
|
|
|
|
|
Storage temperature
|
-20 to 70°C
|
|
|
|
|
operating temperature
|
15 to 60°C
|
|
|
|
|
Level of water resistance
|
IP66/NEMA4X
|
|
|
|
|
Size
|
145mm*125mm*162mm (⻓*width*high)
|
|
|
|
|
Weight
|
1.35KG
|
|
|
|
