Quick Details
-
Brand Name:
-
YI SUNDA
-
Voltage:
-
380
-
Dimension(L*W*H):
-
3000*1650*2000
-
Hollow part volume:
-
4L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
65 mm
-
Screw Heating Power(kW):
-
11 kW
-
Extruder Motor Power(kW):
-
50 kW
-
Mold Platen Size(Width)(mm):
-
300 mm
-
Mold Platen Size(Height)(mm):
-
370 mm
-
Air Pressure(MPa):
-
6 MPa
-
Air Comsumption(m³/min):
-
0.3 m³/min
-
Die Head Heating Power(kW):
-
5 kW
-
Accumulator Capacity(L):
-
5 L
-
Power (kW):
-
30
-
Weight (T):
-
2
-
Product name:
-
plastic jerry can production blow molding machine
-
Automatic:
-
Yes
-
Max volume of the product ml:
-
5000
-
Max diamerer of the product mm:
-
480
-
Production capacity PCS/hour:
-
500-2000
-
Screw Diameter mm:
-
65
-
Plasticizing capacity kg/h:
-
40
-
Power:
-
380V/220V/110V 50Hz 3P
-
After-sales Service Provided:
-
Field maintenance and repair service
Quick Details
-
Clamping Force (kN):
-
10000
-
Output (kg/h):
-
500 kg/h
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YI SUNDA
-
Voltage:
-
380
-
Dimension(L*W*H):
-
3000*1650*2000
-
Hollow part volume:
-
4L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
65 mm
-
Screw Heating Power(kW):
-
11 kW
-
Extruder Motor Power(kW):
-
50 kW
-
Mold Platen Size(Width)(mm):
-
300 mm
-
Mold Platen Size(Height)(mm):
-
370 mm
-
Air Pressure(MPa):
-
6 MPa
-
Air Comsumption(m³/min):
-
0.3 m³/min
-
Die Head Heating Power(kW):
-
5 kW
-
Accumulator Capacity(L):
-
5 L
-
Power (kW):
-
30
-
Weight (T):
-
2
-
Product name:
-
plastic jerry can production blow molding machine
-
Automatic:
-
Yes
-
Max volume of the product ml:
-
5000
-
Max diamerer of the product mm:
-
480
-
Production capacity PCS/hour:
-
500-2000
-
Screw Diameter mm:
-
65
-
Plasticizing capacity kg/h:
-
40
-
Power:
-
380V/220V/110V 50Hz 3P
-
After-sales Service Provided:
-
Field maintenance and repair service
|

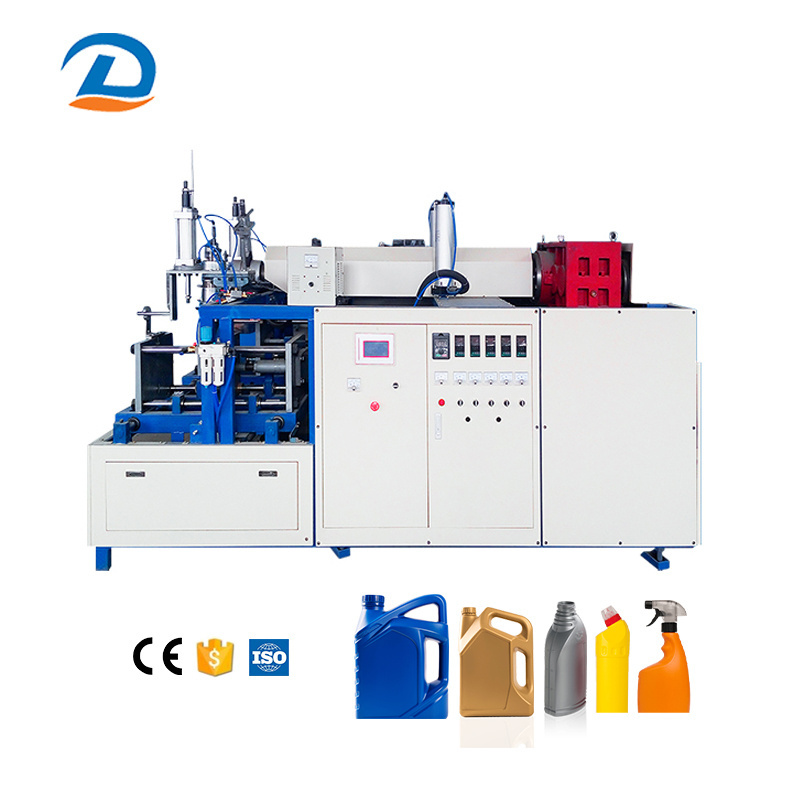

Semi Automatic Blow Molding Machinery 5 L PE HDPE LDPE With Great Pricer
Semi Automatic Blow Molding Machinery 5 L PE HDPE LDPE With Great Pricer is suitable for
producingPP/PE/PU/PC/PVC/PETG/HDPE/LDPE/ABS/..... plastic containers and bottles in all shapes. |
|
|
|
MODEL
|
WSJ-2
|
|
|
Max container capacity
|
4L
|
|
|
Quantity mold
|
2 sets
|
|
|
Production capacity
|
350pc/h
|
|
|
Screwed diameter
|
65mm
|
|
|
Screwed diameter ratio
|
1:25L/D
|
|
|
HDPE Max Output
|
40kg/h
|
|
|
Material cutting method
|
Hot knife
|
|
|
Max mold size(L×W×H)
|
220×300×380mm
|
|
|
Blowing pressure
|
0.4-0.6Mpa
|
|
|
gas consumption
|
0.5m3/min
|
|
|
Power of mechanical and electrical extruder
|
11KW
|
|
|
Heating power of extruder
|
10KW
|
|
|
Total power
|
23KW
|
|
|
Dimension mm(L X W X H)
|
L
|
|
|
Weight
|
2.0T
|
|
|
Control type
|
PLC PC Control
|
|
|
Suitable material
|
PE/PP
|
|
This extrusion blow molding machine is made of HDPE, PP, PE, used to produce Bottle Jerry can Barrel Drum Tank, blowing ocean balls, Christmas balls, and children's toys.
Simple operation and easy maintenance
FA
Q:
1. Can I make milk bottle on this machine
Yes, you can. Milk bottle, detergent bottle,pattern pot are available on the machine.
2. What shall I provide to you for offer?
Please send us your bottle picture with width,length,weights etc and better to send samples.
3. What kinds of materials the blow machine make?
The blow molding machine can make HDPE,PP material bottles.
4. What is your delivery time?
30 days to 50days.
5. How can I trust your machine ?
- We have more than 10 years experience have own design team and experience
engineer.
- You can visit us to check.
- We give professional guidance service during enquiry period.
- We provide after sale install service to abroad clients.
1. Can I make milk bottle on this machine
Yes, you can. Milk bottle, detergent bottle,pattern pot are available on the machine.
2. What shall I provide to you for offer?
Please send us your bottle picture with width,length,weights etc and better to send samples.
3. What kinds of materials the blow machine make?
The blow molding machine can make HDPE,PP material bottles.
4. What is your delivery time?
30 days to 50days.
5. How can I trust your machine ?
- We have more than 10 years experience have own design team and experience
engineer.
- You can visit us to check.
- We give professional guidance service during enquiry period.
- We provide after sale install service to abroad clients.
