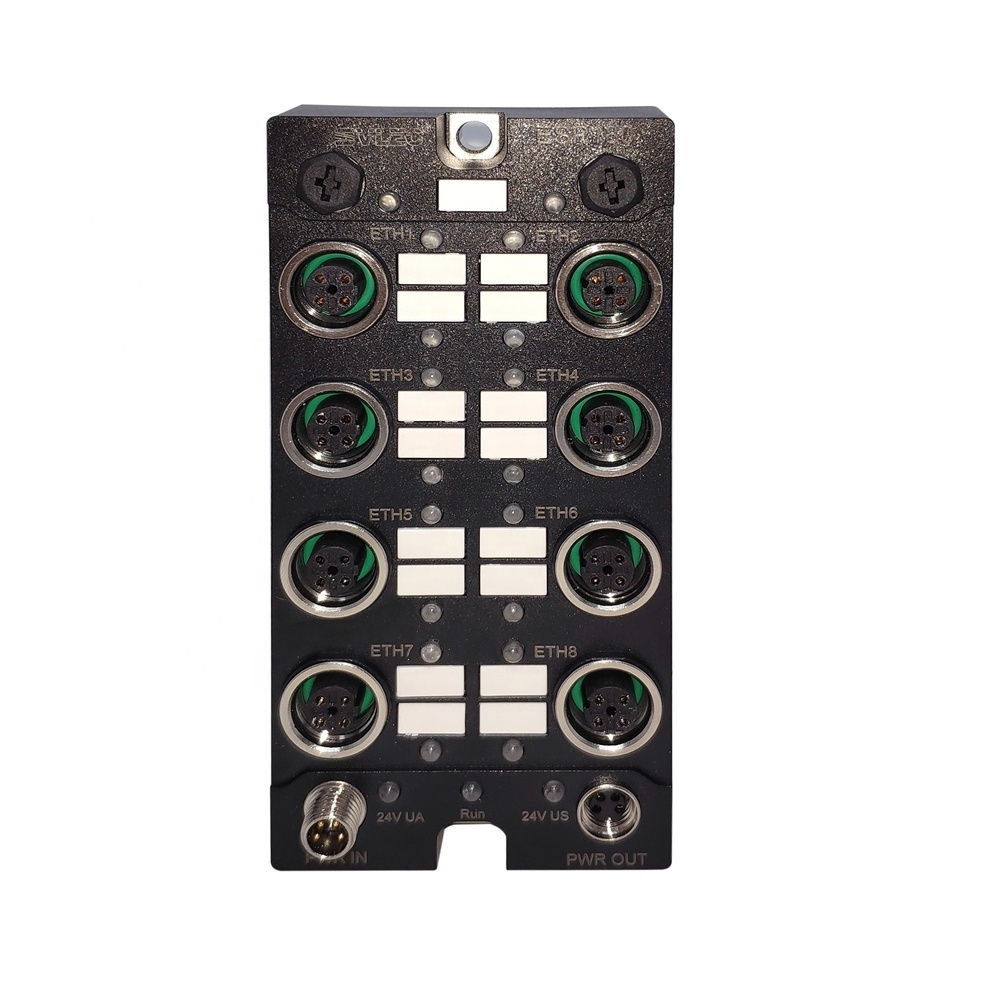

Industrial Ethernet switch
|
Product Name:
|
Ethernet switches
|
|
Type:
|
ESP180
|
|
Transmission：
|
EtherNet
|
|
Port number:
|
8 （M12 female）
|
|
Code:
|
D code
|
|
Transmit methods：
|
twisted pair
|
|
Transmit speed：
|
10 / 100 /MBit/s
|
|
Transmit distance：
|
100 m
|
|
Signal LED：
|
data connection/receving
|
|
Basical function：
|
Unmanaged / adaptivity，according to IEEE802.3 ，2 priority based on IEEE802.1P，PTCP filter
|
|
PROFINET consistency degree：
|
Conformance-Class A
|
|
Other function：
|
Autonegotiation
|
|
Status indicator：
|
LED : US，each port connection
|
|
Max cable length：
|
100 m
|
|
Power supply voltage：
|
24 V DC （M12 connector）
|
|
Power supply voltage range：
|
9 V DC...32 V DC
|
|
Current consumtion：
|
40 mA (US=24 V DC)
|
|
Max current consumtion：
|
40 mA （ +10 mA/port）
|
|
Size（L × W × H）：
|
50×150×24.6 mm
|
|
Protection:
|
IP67
|
|
Temperature range(working):
|
-25..+ 60 °C
|
|
Humidity:
|
10……95%
|
|
Air pressure:
|
86 kPa ... 108 kPa （elevation 2000 m）
|
