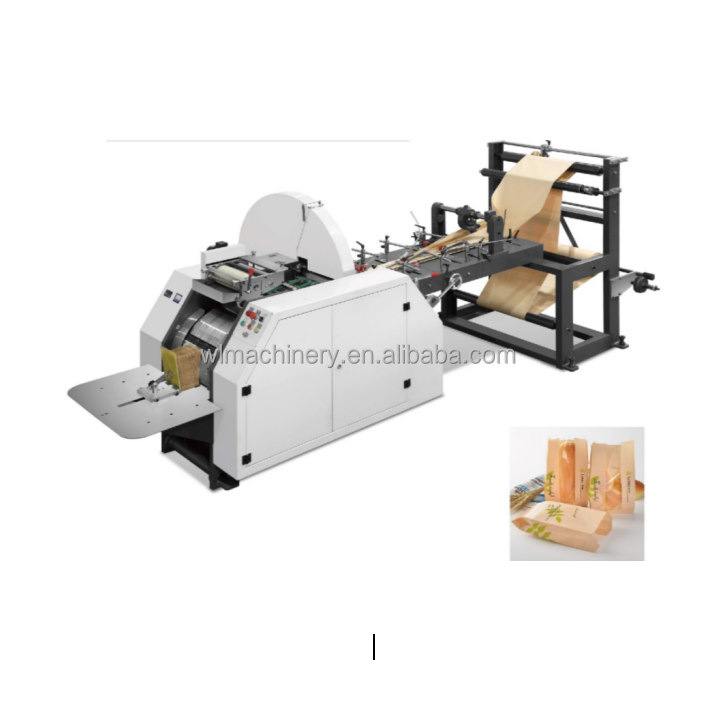

Flat Bottom Kfc V-bottom Food Bag With Printing Fully Automatic Kraft Paper Bag Making Machine

Flat Bottom Kfc V-bottom Food Bag With Printing Fully Automatic Kraft Paper Bag Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $45000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: WULIN

Model Number:: WL-PB

Voltage:: 380-450V

Dimension(L*W*H):: 14000*1800*1700MM

Weight:: 10 KG

Application:: Supermarket

Type:: Multi-Function Packaging Machine

Suitable material:: Filter Paper

Color:: Customer Requirement

Speed:: 40-70pieces/min

Product name:: Flat Bottom Kfc V-bottom Food Bag Kraft Paper Bag Making Machine

After Warranty Service:: Video technical support

After Service:: Spare parts

After-sales Service Provided:: Field installation, commissioning and training

Certification:: CE

Quick Details

Machine Type:: Bag Forming Machine

Bag Type:: Shopping Bag

Material:: Paper

Place of Origin:: Zhejiang, China

Brand Name:: WULIN

Model Number:: WL-PB

Voltage:: 380-450V

Dimension(L*W*H):: 14000*1800*1700MM

Weight:: 10 KG

Application:: Supermarket

Type:: Multi-Function Packaging Machine

Suitable material:: Filter Paper

Color:: Customer Requirement

Speed:: 40-70pieces/min

Product name:: Flat Bottom Kfc V-bottom Food Bag Kraft Paper Bag Making Machine

After Warranty Service:: Video technical support

After Service:: Spare parts

After-sales Service Provided:: Field installation, commissioning and training

Certification:: CE

Product Overview

full automatic paper bag machine is the ideal equipment to take the flat papers with original colors or printed well as raw materials to make into paper bags with square bottoms.Its technique process is about:the flat papers after printing are delivered into the driving parts for positioning through automatic paper feeder and press line with rolling press device and then make one-side glue,folding and positioning and sticking and conveying device will convey them into the bottom position and conduct press horizontal line,open bottom,make glue and press togther and finally output finished bag products.

FEATURES AT A GLANCE

COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE

SAFETY FRAME

SIMPLE CONTROL

SEASY MAINTENANCE

VERSATILITY

EXTENDING UNDERCARRIAGE

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Width scope of bag forming	180-350mm (7.09-13.78 inch)
2	Organ height	70-150mm
3	Canister length of the paper bag	290-600mm
4	Paper width	530-1040mm
5	Paper length	290-600mm
6	Product speed	40-70pieces/min
7	Glue type	Watery glue
8	Total power	10KW

PRODUCT CONFIGURATION

Feeder

bottom folding and gluing part

bag forming part

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia

SIMILAR PRODUCTS

FAQ

We promises that all machines made by us come with services of repair and replacement.
Machine warranty is 12 months. We provide free repair services to any failures caused by us within warranty time. However wearing parts are not included.
1. Any quality failure problems happens within guarantee period, we will reply within 2 hours after receiving your request.
2. We will provide lifelong maintenance service to all parts
3. We will handle any quality failure occurred within warranty time.
4. We will provide lifelong technical support started from using of the machine.
5. We will supply normal parts within warranty period to ensure better user experience. Parts supply will be charged after warranty period.
