Tobacco chocolate powder Drying Machine absorbent resin dextrin fish meal dryer helical Disc Plate Tray Dryer

Tobacco chocolate powder Drying Machine absorbent resin dextrin fish meal dryer helical Disc Plate Tray Dryer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $13870

≥5 Pieces

US $12000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Power:: 15 kw

Dimension(L*W*H):: Depends on the model

Weight (KG):: 6000

Evaporation Capacity(kg/h):: 100-1575

Product name:: Continual Plate Dryer

Keyword:: Powder Tray Dryer

Feature:: High efficiency

Diameter:: 1850-3800 mm

High:: 2608-10650 mm

Area of dry:: 3.3-180 m2

Quick Details

Type:: Tray Dryer

Place of Origin:: Zhejiang, China

Brand Name:: ROYAL PHARM

Voltage:: 380V

Power:: 15 kw

Dimension(L*W*H):: Depends on the model

Weight (KG):: 6000

Evaporation Capacity(kg/h):: 100-1575

Product name:: Continual Plate Dryer

Keyword:: Powder Tray Dryer

Feature:: High efficiency

Diameter:: 1850-3800 mm

High:: 2608-10650 mm

Area of dry:: 3.3-180 m2

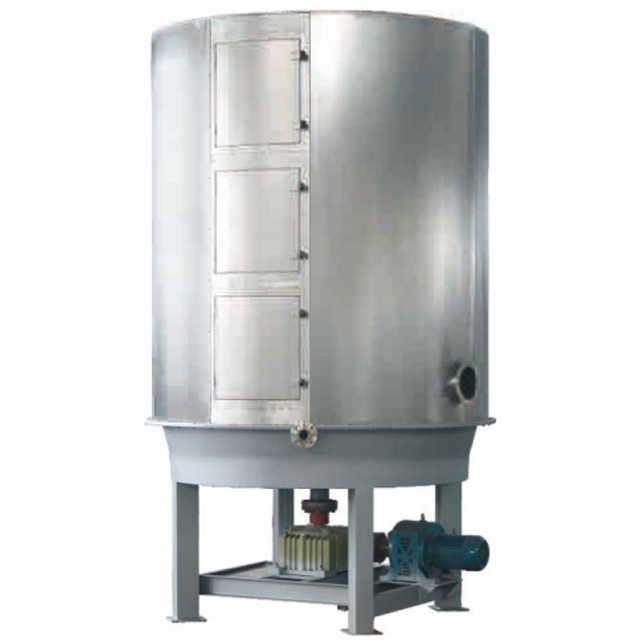

RYPLG Series Continual Plate Dryer

RYPLG Series Continual Plate Dryer Descriptions Plate dryer is a kind of high effective conducting and continuous drying equipment. Its unique structure and operating principle determine that it has advantages of high heat efficiency, low energy consumption, small occupying area, simple configuration, easy operating and control as well as friendly operating environment etc. It can be widely used in drying process in the fields of chemical industry. Agricultural chemicals, foodstuff, fodder, process of agricultural and sideline products etc, and is well received by various sectors in their practical usage. Now there are three big categories, named normal pressure, closed and vacuum styles; four sizes of 1200, 1500,2200 and 3000; and three kinds of materials, namely A(carbon steel), B(stainless steel used for those all parts where materials are contacted) and C (on the basis of B to add stainless steel materials for vapor pipes, main shaft and support, and stainless steel linings for cylinder body and top cover). With a drying area being from 4 to 180 square meters, now we have hundreds of models of series products and various kinds of auxiliary devices available to meet requirements of drying materials for customers.

Features

1. Regulate thickness of materials, rotating speed of main shaft, number of harrow's arm, style of and sizes harrows achieve best drying process. 2. Each layer of drying plate can be fed with hot or cold media individually to heat or cold materials and make temperature control accurate and easy. 3. Dwell time of materials can be accurately adjusted. 4. Single flowing direction of materials without return flowing and mixing, uniform drying and stable quality, no re-mixing is required. (2) Easy and simple operation 1. Start stop of dryer is quite simple 2. After material feeding is stopped, they can be easily discharged out of the dryer by harrows 3. Careful cleaning and observation can be carried inside the equipment through large-scale viewing window. (3) Low energy consumption 1.Thin layer of materials, low speed of main shaft, small power and energy required for conveying system of materials. 2. Dry by conducting heat so it has high heating efficiency and low energy consumption. (4) Good operation environment, solvent can be recovered and powder discharge meet the requirements of exhaust.

1. Normal pressure type: as low speed of air flow inside the equipment and moisture being high in upper part and low in lower part, dust powder couldn't float to the equipment, so there is almost no dust powder in tail gas discharged from the moist discharge port on the top.

2.Closed type: equipped with solvent recovery device that can recover organic solvent easily from moist-carrier gas. The solvent recovery device has simple structure and high recovery rate, and nitrogen can be used as moist-carrier gas in closed circulation for those subject to burning, explosion and oxidation

(1). Designing pressure: general is 0.4MPa, Max. can reach 1.6 Mpa. (2).Work pressure: general is less then 0.4Mpa, and Max. can reach 1.6 Mpa. (3).Heating medium: steam, hot water, oil. When the drying plates'temperature is 100℃, hot water can be used; when 100℃~150℃, it will be saturated water steam ≤0.4Mpa or steam-gas, and when 150℃~320℃, it will be oil; when > 320℃ it will be heated by electric, oil of fused salt.

Note: The technical parameters of the dryer are derived based on the model parameter table.
