Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
westsam
-
Model Number:
-
PLT-25A-R-R
-
Product type:
-

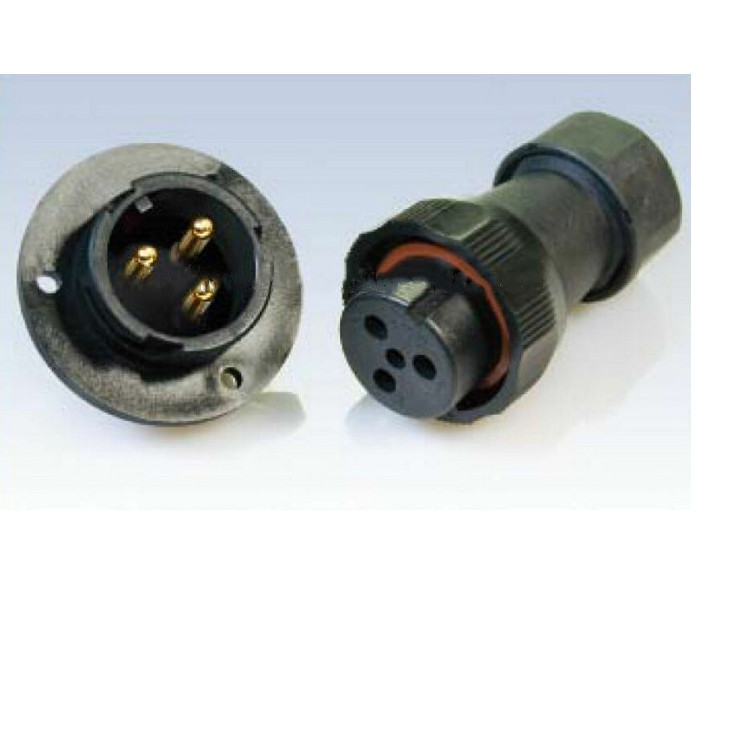

Apex waterproof male and female plug
-
Rated voltage:
-
250V
-
Rated current:
-
10A
-
Contact material:
-
Brass
-
Shell material:
-
Stainless steel
-
Insert material:
-
Bakelite
-
Finish material:
-
Chrome plated
-
Finish contact material:
-
Gold plated
-
Certificate:
-
TUV
-
Cores:
-
3p-4p
-
Warranty:
-
3months-1year
-
Certification:
-
ROHS
Quick Details
-
Rated Voltage:
-
250V
-
Rated Current:
-
10A
-
Application:
-
Industrial
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
westsam
-
Model Number:
-
PLT-25A-R-R
-
Product type:
-
Apex waterproof male and female plug
-
Rated voltage:
-
250V
-
Rated current:
-
10A
-
Contact material:
-
Brass
-
Shell material:
-
Stainless steel
-
Insert material:
-
Bakelite
-
Finish material:
-
Chrome plated
-
Finish contact material:
-
Gold plated
-
Certificate:
-
TUV
-
Cores:
-
3p-4p
-
Warranty:
-
3months-1year
-
Certification:
-
ROHS
Technical Parameter s for Apex waterproof male and female plug
| No.Of contacts | 3 | 4 |
| Rated current/Voltage |
10A 250V |
10A 250V |
| Operation limt voltage(AC.Vrms) | 200 | 200 |
| Withstanding voltage(AC.V.rms)1 min. | 1000 | 1000 |
| Insulation resistance (MΩ min.)at dc 500V | 1000 | 1000 |
| Contact resistance(MΩ max.)at dc 1A | 3 | 3 |
Drawing
Hole place arranges(comply with the needle direction)
The Apex waterproof male and female plug will be packed in a small bag and then put in a box.If you need customized package, we will do as your requirements.
HUILIN Service and Warranty:
1. Low MOQ: It can meet your business very well.
2. Good services: We treat you as our friends.
3. Packaging: Package will do after several discussions with you.
4. Cheap price: The products are directly from our factory. So it saves a lot secondary cost.
5. Good quality: The MP only will start after you confirm the samples and the MP products will do 100% inspection before shipping.
6. OEM accepted: Please send us your design and other important information. OEM are always welcome.
