Quick Details
-
Model Number:
-
SCV1603DVL
-
Structure:
-
Spring
-
Power:
-
Pneumatic
-
Medium:
-
gas
-
size:
-
3/16", 4.8 mm tubing ID
-
Pressure:
-
ajustable
-
Temperature:
-
normal
-
Body material:
-
PP
-
Diaphragm material:
-
FKM
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
MFPF
-
Model Number:
-
SCV1603DVL
-
Structure:
-
Spring
-
Power:
-
Pneumatic
-
Medium:
-
gas
-
size:
-
3/16", 4.8 mm tubing ID
-
Pressure:
-
ajustable
-
Temperature:
-
normal
-
Body material:
-
PP
-
Diaphragm material:
-
FKM

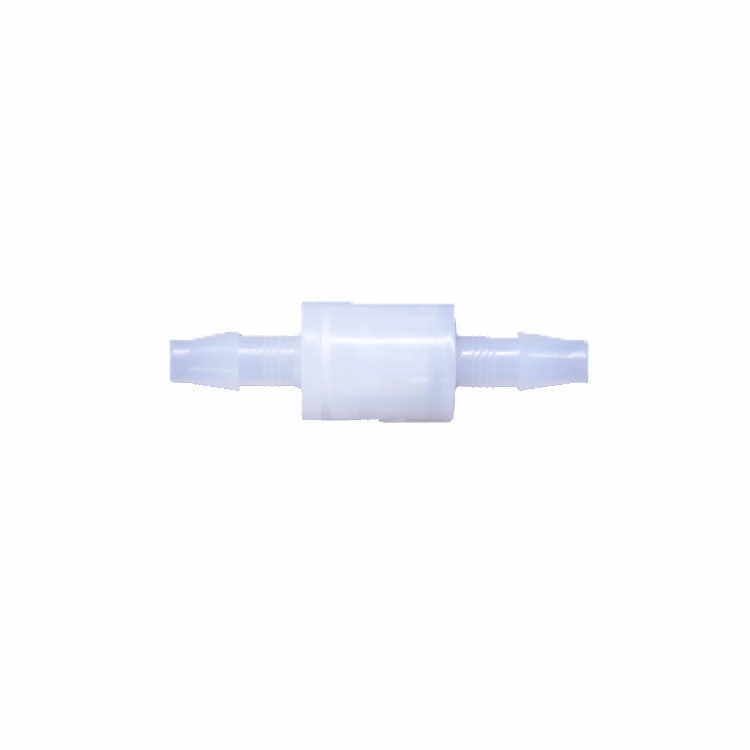

3/16" Plastic spring check valve
|
Body material |
PVDF |
|
Diaphragm material |
FKM |
|
Tube ID |
φ4.8mm |
|
opening pressure |
less than 2Kpa |
|
Aback pressure |
300kpa |
|
Color |
white |
|
valve inside |
Yes |
Working theory
Check valves are used to prevent flow of fluid (gas or liquid) in one direction and allow flow in the other
direction.
FAQ
1) What is your application?
2) What kind of medium will pass the valve? Water, air, gasoline, chemical solvent or others?
3) What is your using temperature?
4) What is the working pressure you require? Such as cracking pressure and back pressure.
5) What is the approximate size of your tube ID?
6) What is your purchase quantity and annual demands?
Pls kindly note: According to your detail requirements, we will recommend you the best suitable parts.
1. Prevents damage to equipment, pumps, and flow systems by preventing backflow
2. Tubing barbed check valves are for an inert high purity smooth and clear flow path.
3. Use with liquids and gases for pressure or vacuum applications.
4. The check valves has a low pressure drop and can be specified with a wide variety of cracking pressures
1. Four port sizes. (nominal inside diameter of the tube in which it fits)1/16", 1/8", 3/16", 5/32".
2. Three housing materials. polypropylene, POM and PVDF.
3. Four diaphragm materials. fluorosilicone, Viton, silicone ,and EPDM
For more information and details, please contact us now.
Widely used in household appliances, ozone disinfection, medical devices, fuel system, agriculture machine, analytical instruments, ink supply system,cycle refrigeration, beverage Industry and so on.
1. 100% factory tested
2. Best quality with competitive price
3. In time shipment
4. Free samples
5. Excellent after-sale service
1. Manufacture supplier, assure the best quality with low and reasonable price.
2. In time shipment, can send out the goods within 3-5days deponds on the item.
3. Can make design according to custom's requirements, save cost and suitable for use.
4. Plastic material is low cost, which can save your money.
Quotation----negotiation----placing order----production----test products ----packaging----shipping----tracking and after-sale service
