Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hitbot
-
Weight:
-
43 kg
-
Item:
-
Z-Arm S622
-
Reach range:
-
622mm
-
Payload:
-
3kg
-
Degree of freedom:
-
6
-
Repeatability:
-
0.02mm
-
Communication:
-
485, TCP/IP, Ethernet
-
Noise:
-
<65DB
-
Certification:
-
CE & FCC
-
Handheld Teaching:
-
Support
-
Installation Area:
-
130mm
Quick Details
-
Warranty:
-
1 Year
-
Vertical Travel(mm):
-
622
-
Horizonal Travel(mm):
-
622
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hitbot
-
Weight:
-
43 kg
-
Item:
-
Z-Arm S622
-
Reach range:
-
622mm
-
Payload:
-
3kg
-
Degree of freedom:
-
6
-
Repeatability:
-
0.02mm
-
Communication:
-
485, TCP/IP, Ethernet
-
Noise:
-
<65DB
-
Certification:
-
CE & FCC
-
Handheld Teaching:
-
Support
-
Installation Area:
-
130mm

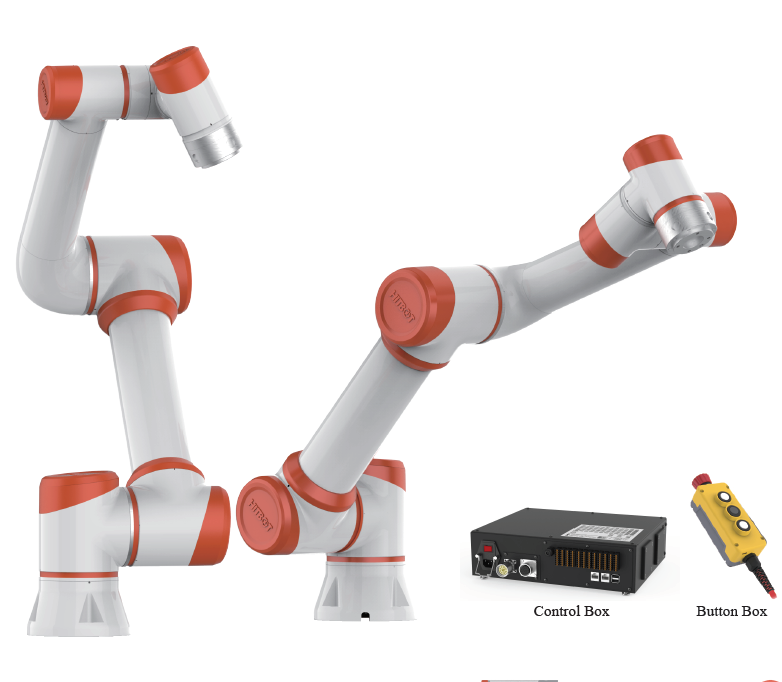

Product Description
Specification
|
Item
|
Value
|
|
Item No.
|
Z-Arm S622
|
|
Brand Name
|
Hitbot
|
|
Payload
|
3Kg
|
|
Net Weight
|
30kg
|
|
Working Range
|
622mm
|
|
The Max Speed of Join t
|
180°/s
|
|
Repeatability
|
±0.06mm
|
|
Size of Control Box
|
342*260*90mm
|
|
I/O Power Supply
|
24V/1.5A
|
|
Noise
|
<65DB
|
|
Protection Grade
|
IP54
|
|
Communication
|
Ethernet, TCP/IP, 485 communication
|
|
Power Input
|
220V/50Hz
|
|
Humidity
|
20-80RH (No Condensation)
|
|
Temperature
|
0-45℃
|
|
Coordinate Operation
|
Support collision Detection, allow to customize collision level
|
