Quick Details
-
Return Force (kN):
-
20 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Woda
-
Year:
-
2020
-
Voltage:
-
Customer Request
-
Dimension(L*W*H):
-
4500X1500X1200
-
Weight (T):
-
13 T
-
Model Number:
-
YQ32
-
Motor Power (kw):
-
7.5 kw
-
Power Source:
-
Hydraulic
-
Material:
-
Steel Material
-
Color:
-
Customer Request
-
Usage:
-
Animal Mineral Salt Lick Block Hydraulic Press
-
Power souce:
-
Electricity
-
Function:
-
Hydraulic Pounching
-
Power:
-
7.5 kw
-
Local ServiceLocation:
-
None
-
Nominal Force (kN):
-
2000
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
400
-
Ejector Force (kN):
-
35
-
Return Force (kN):
-
20 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Woda
-
Year:
-
2020
-
Voltage:
-
Customer Request
-
Dimension(L*W*H):
-
4500X1500X1200
-
Weight (T):
-
13 T
-
Model Number:
-
YQ32
-
Motor Power (kw):
-
7.5 kw
-
Power Source:
-
Hydraulic
-
Material:
-
Steel Material
-
Color:
-
Customer Request
-
Usage:
-
Animal Mineral Salt Lick Block Hydraulic Press
-
Power souce:
-
Electricity
-
Function:
-
Hydraulic Pounching
-
Power:
-
7.5 kw
-
Local ServiceLocation:
-
None
-
Nominal Force (kN):
-
2000

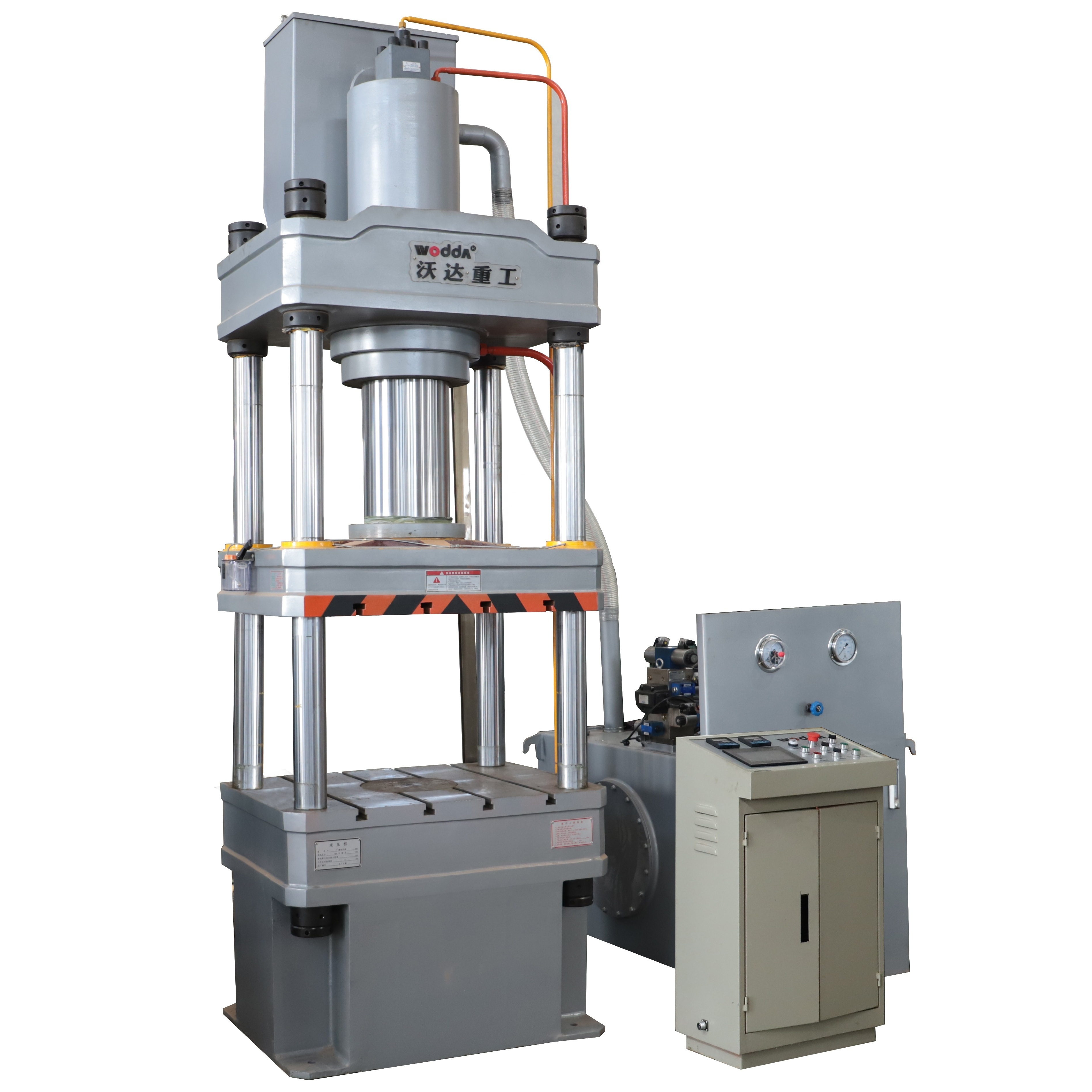

Vertical blacksmith four column hydraulic forging press used for workshop
Characteristic:
Three beam and four column structure, economical and practical, hydraulic control adopts electro-hydraulic servo control system, reduce leakage points, reliable operation, long service life, two kinds of forming technology can be realized: fixed pressure and fixed process, it has the function of keeping the rolling time, the working pressure stroke can be adjusted within the specified range, centralized control with buttons, manual operation, semi-automatic, automatic three operating modes.
| Project | 200t-A | 200t-B | 200t-C |
| Max liquid working pressure | 25 | 25 | 25 |
| Slide stroke | 400 | 400 | 400 |
| Max opening height | 800 | 800 | 800 |
| Worktable size | 660*660 | 800*800 | 1000*1000 |
| Descent speed | 30 | 30 | 30 |
| Working speed | 8-12 | 8-12 | 8-12 |
| Return speed | 20 | 20 | 20 |
| Motor power | 7.5 | 7.5 | 7.5 |
| Displacement oil pump | 40 | 40 |
40 |
|
COMBINATION GASKET
1.The ductility of red copper is strong,making the bond tight 2.In the process of high-pressure washing,red copper can effectively protect the rubber skin from breakage. |
|
THE PRESSURE MEASURING LINE
1.Neat and beautiful 2.Reduce the impact on the pipeline when the oil is pumped out,and it is more difficult to leak. |
|
|
HYDRAULIC PRESS JUNCTION BOX
All the lines of the hydraulic system are concentrated in a junction box,which is introduced into the power cabinet or operation console through the aviation plug as a main line. |
|
HYDRAULIC PRESS PISTON ROD
Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to 55 ,effective solution to seal ring injury,not easy to scratch.
|
|
Surface with anti-rust treatment,inner layer of plastic waterproof packaging,outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.
